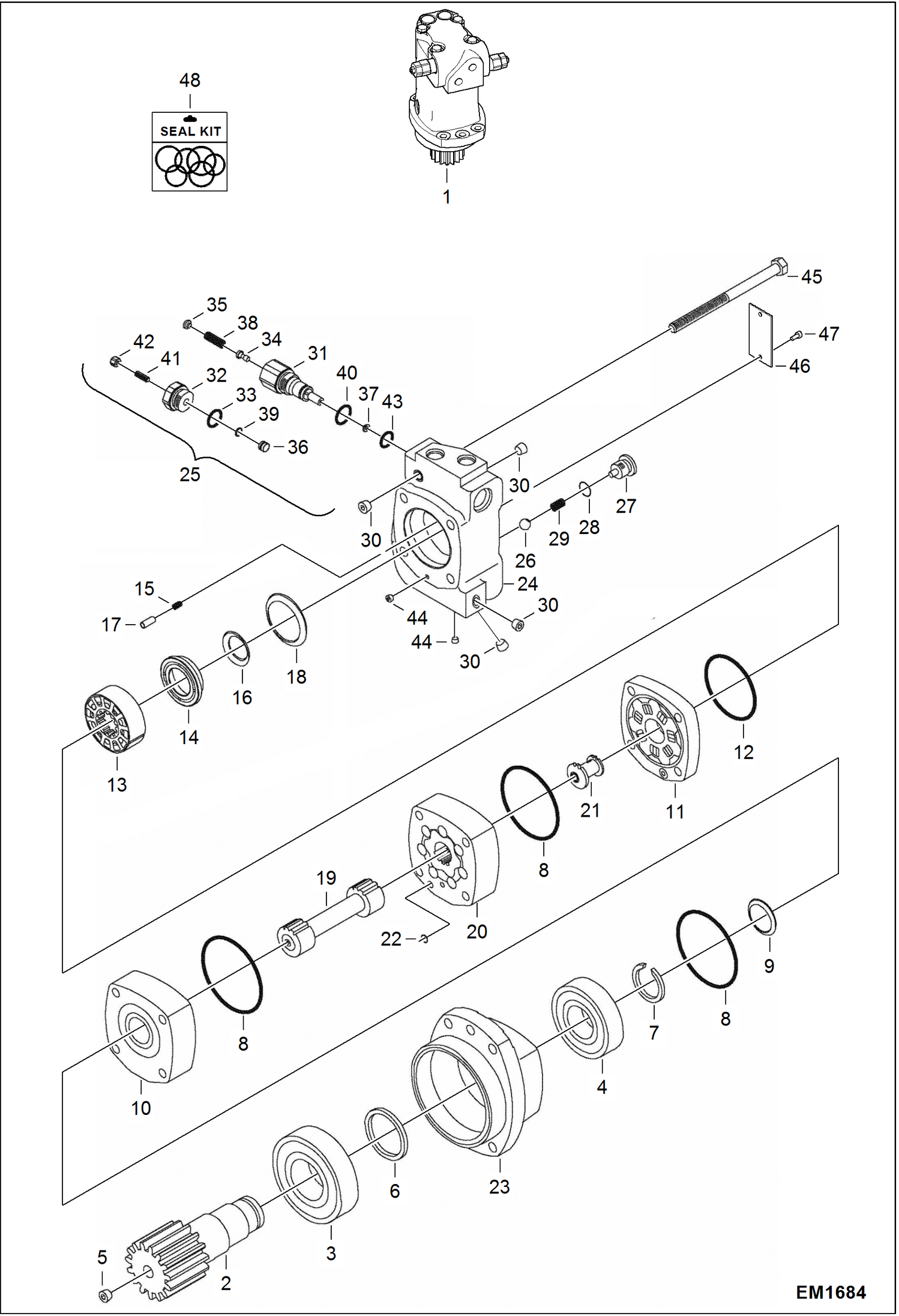

Запчасти Bobcat 319 SLEW MOTOR HYDRAULIC SYSTEM

1

6685834

MOTOR W/Ref. 2-45

2

CARTRIDGE, RELIEF NLA - Order Ref. 1 - W/Ref. 3-8

3

NUT NLA - Order Ref. 1

4

SCREW NLA - Order Ref. 1

5

SCREW NLA - Order Ref. 1

6

O-RING NLA - Order Ref. 1

7

O-RING NLA - Order Ref. 1

8

PLUG NLA - Order Ref. 1

9

SEAL NLA - Order Ref. 1

10

PLATE NLA - Order Ref. 1

11

PLATE NLA - Order Ref. 1

12

O-RING NLA - Order Ref. 1

13

VALVE NLA - Order Ref. 1

14

RING NLA - Order Ref. 1

15

PIN NLA - Order Ref. 1

16

SEAL NLA - Order Ref. 1

17

PIN NLA - Order Ref. 1

18

SEAL NLA - Order Ref. 1

19

DRIVE NLA - Order Ref. 1

20

GEROLER NLA - Order Ref. 1

21

VALVE, DRIVE NLA - Order Ref. 1

22

O-RING NLA - Order Ref. 1

23

BOLT NLA - Order Ref. 1

24

HOUSING, VALVE NLA - Order Ref. 1

25

PLUG NLA - Order Ref. 1

26

BALL NLA - Order Ref. 1

27

PLUG NLA - Order Ref. 1

28

O-RING NLA - Order Ref. 1

29

PIN NLA - Order Ref. 1

30

PLUG NLA - Order Ref. 1

31

CARTRIDGE NLA - Order Ref. 1

32

PLUG NLA - Order Ref. 1

33

X-RING NLA - Order Ref. 1

34

VALVE NLA - Order Ref. 1

35

PIN NLA - Order Ref. 1

36

O-RING NLA - Order Ref. 1

37

PLUG NLA - Order Ref. 1

38

PIN NLA - Order Ref. 1

39

RING NLA - Order Ref. 1

40

O-RING NLA - Order Ref. 1

41

BEARING, MAIN NLA - Order Ref. 1

42

BEARING, MAIN NLA - Order Ref. 1

43

O-RING NLA - Order Ref. 1

44

HOUSING NLA - Order Ref. 1

45

PINION, GEAR NLA - Order Ref. 1

46

6684155

SEAL KIT Was NLA - D
