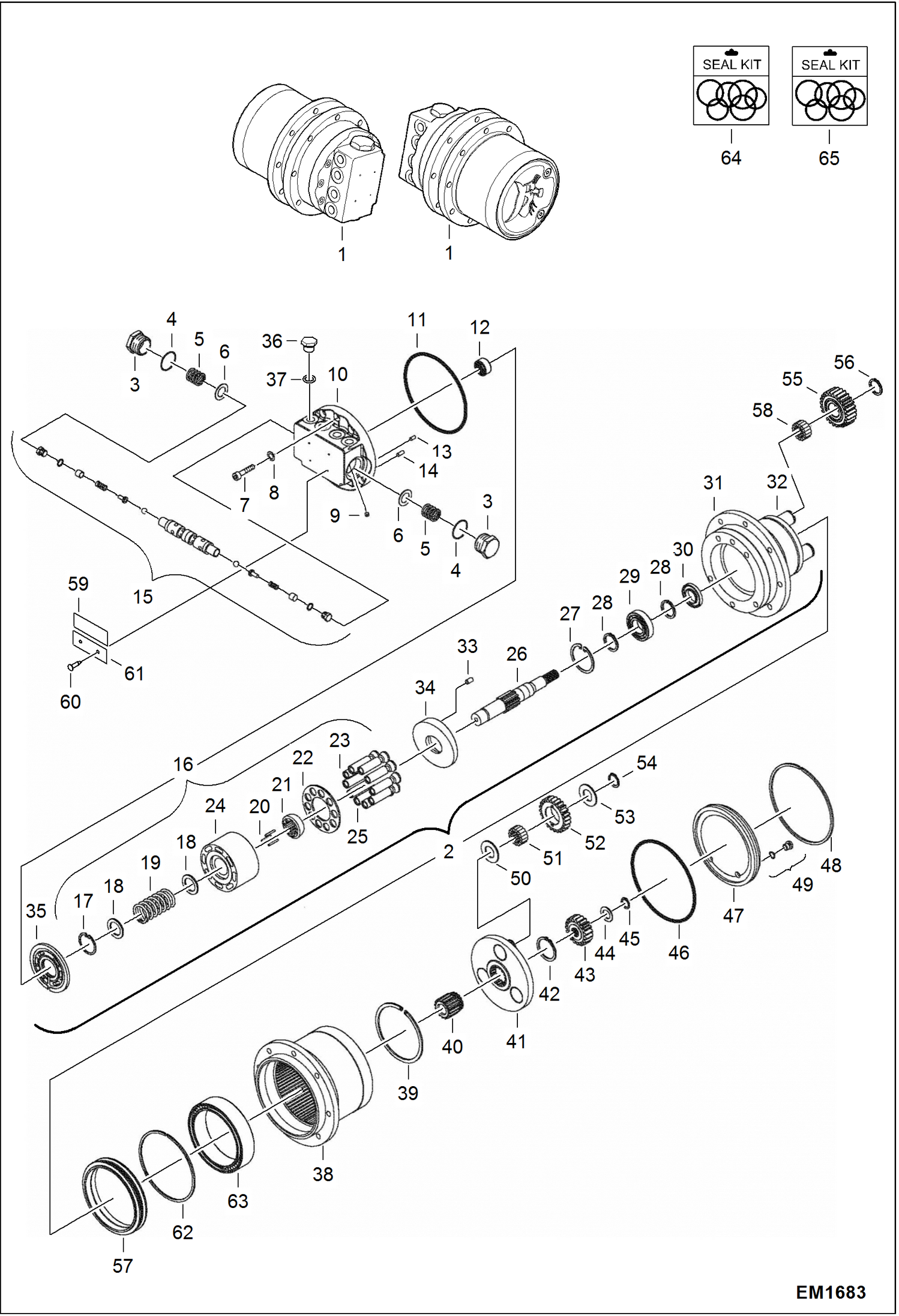

Запчасти Bobcat 319 DRIVE MOTOR (Single Speed) HYDRAULIC SYSTEM

1

6685976

MOTOR, DRIVE W/gear drive - W/Ref. 2-61

2

7000423

MOTOR W/O gear drive - W/Ref. 3-37 Was 6979523 - D

3

6688104

PLUG

4

O-RING

5

6688105

SPRING

6

6688106

WASHER

7

6688108

BOLT Was 6688980 - D

8

6667788

WASHER

9

7000436

REGULATOR

10

7000424

COVER MOTOR

11

6667779

O-RING

12

6667781

BEARING

13

6667782

DOWEL PIN

14

6688111

PIN

15

6688115

VALVE

16

6667778

PISTON ASSY W/Ref. 17-25 Was 6688112 - B

17

7000433

RING RETAINING

18

7000427

WASHER

19

7000426

SPRING PUMPING DRUM

20

PIN

21

7000430

SUPPORT PISTON

22

7000428

PLATE PISTON

23

7000434

PISTON

24

7000425

DRUM PUMPING

25

7000429

BLOCK SLIDING

26

SHAFT

27

6667762

SNAP RING

28

6667756

SNAP RING

29

6688114

BEARING

30

6667774

SEAL

31

7000437

HUB

32

7000418

PIN

33

6671913

PIN

34

7010970

PLATE, SWASH

35

6671905

PLATE

36

6693118

PLASTIC PLUG

37

6692863

ORING

38

7000402

HOUSING OUTPUT Was 6979521 - D

39

7000407

ACCESSORY SEEGER D.100 Was 6979536 - D

40

7000416

GEAR SUN Was 6979528 - D

41

7015442

CARRIER Was 6979527 - D

42

7000422

RING EXTERNAL SNAP Was 6979534 - D

43

7015440

GEAR, SUN Was 6979525 - D

44

6688119

SHIM Was 6979525 - D

45

6688118

RING

46

7000410

ORING Was 6979539 - D

47

7000403

COVER END Was 6979522 - D

48

7000409

RETAINER INT. BR130 Was 6979538 - D

49

6676161

PLUG W/ O-ring

50

7000420

WASHER Was 6979532 - D

51

6667763

BEARING

52

7015443

GEAR Was 6979529 - D

53

7000419

WASHER Was 6979531 - D

54

7000421

RING EXTERNAL SNAP Was 6979533 - D

55

7000404

GEAR PLANETARY Was 6979524 - D

56

7000406

RING EXTERNAL SNAP Was 6979535 - D

57

7000411

SEAL DOUBLE FRONT Was 6979540 - D

58

7000412

BEARING NEEDLE

59

PLATE, SERIAL NUMBER NLA

60

7000432

RIVET SCREW

61

7000431

LABEL

62

7000408

RING INTERNAL SNAP BR125 Was 6979537 - D

63

7000413

BEARING BALL Was 6979542 - D

64

7000439

KIT MAJOR REBUILT major rebuild - W/Ref. 4, 11, 30, 37, 46, 57

65

7000438

KIT, BASE SEAL W/Ref. 4, 11, 30, 37, 46
