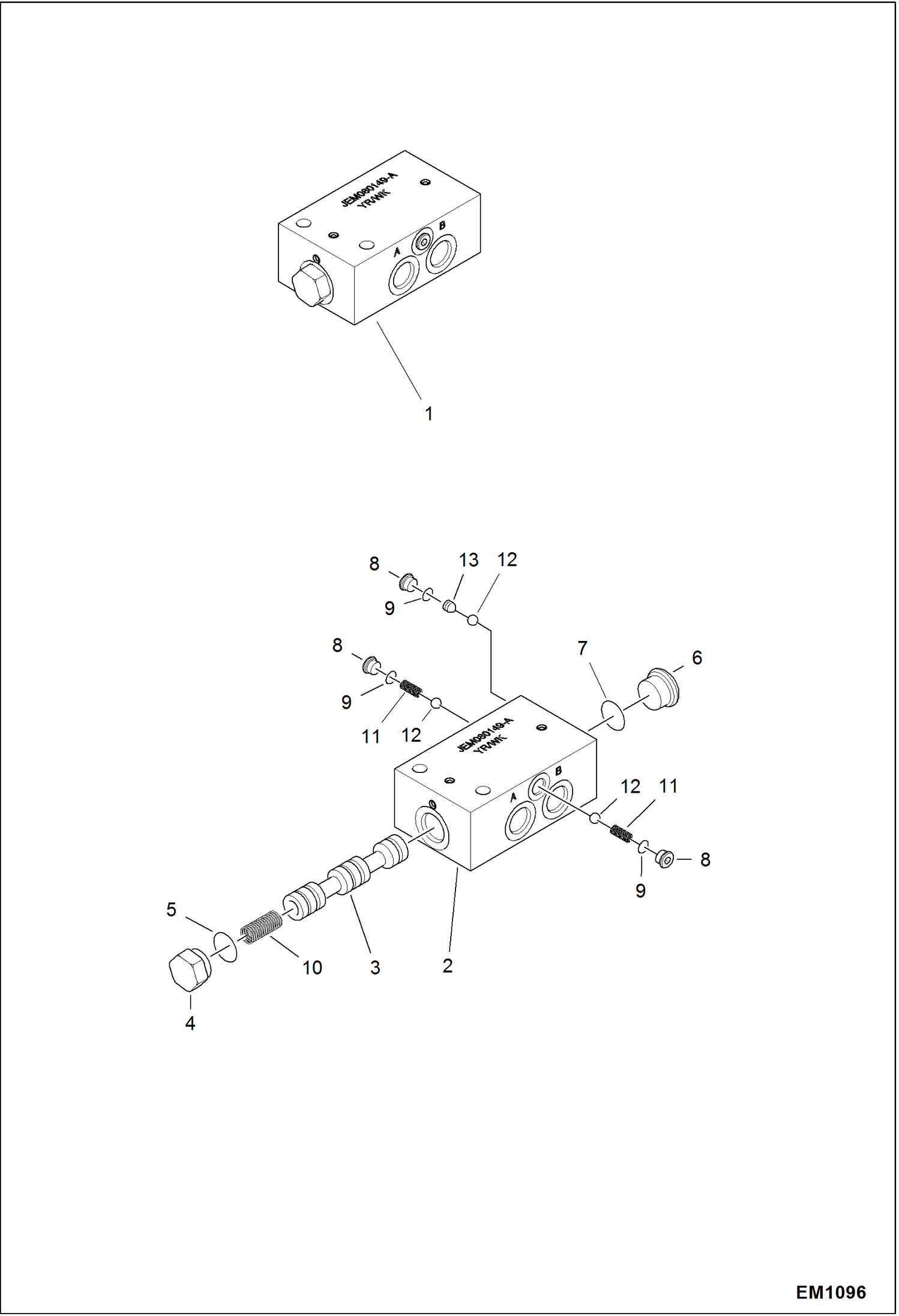

Запчасти Bobcat 319 SLEW LOCK VALVE HYDRAULIC SYSTEM

1

7003480

VALVE, LOCK SLEW W/Ref. 2-13

2

BLOCK NLA - Order Ref. 1

3

7008555

SPOOL, LOCK

4

7008556

PLUG W/Ref. 5

5

79K10

O RING 10

6

6678563

PLUG W/Ref. 7

6

O-RING NSS - Order 6678563 Plug

7

O-RING NLA - Order Ref. 6

8

6669727

PLUG W/Ref. 9

9

O-RING NLA - Order Ref. 8

10

7008557

SPRING, SPOOL

11

7008558

SPRING, CHECK

12

7008560

BALL

13

7008561

SEAT, SHUTTLE
