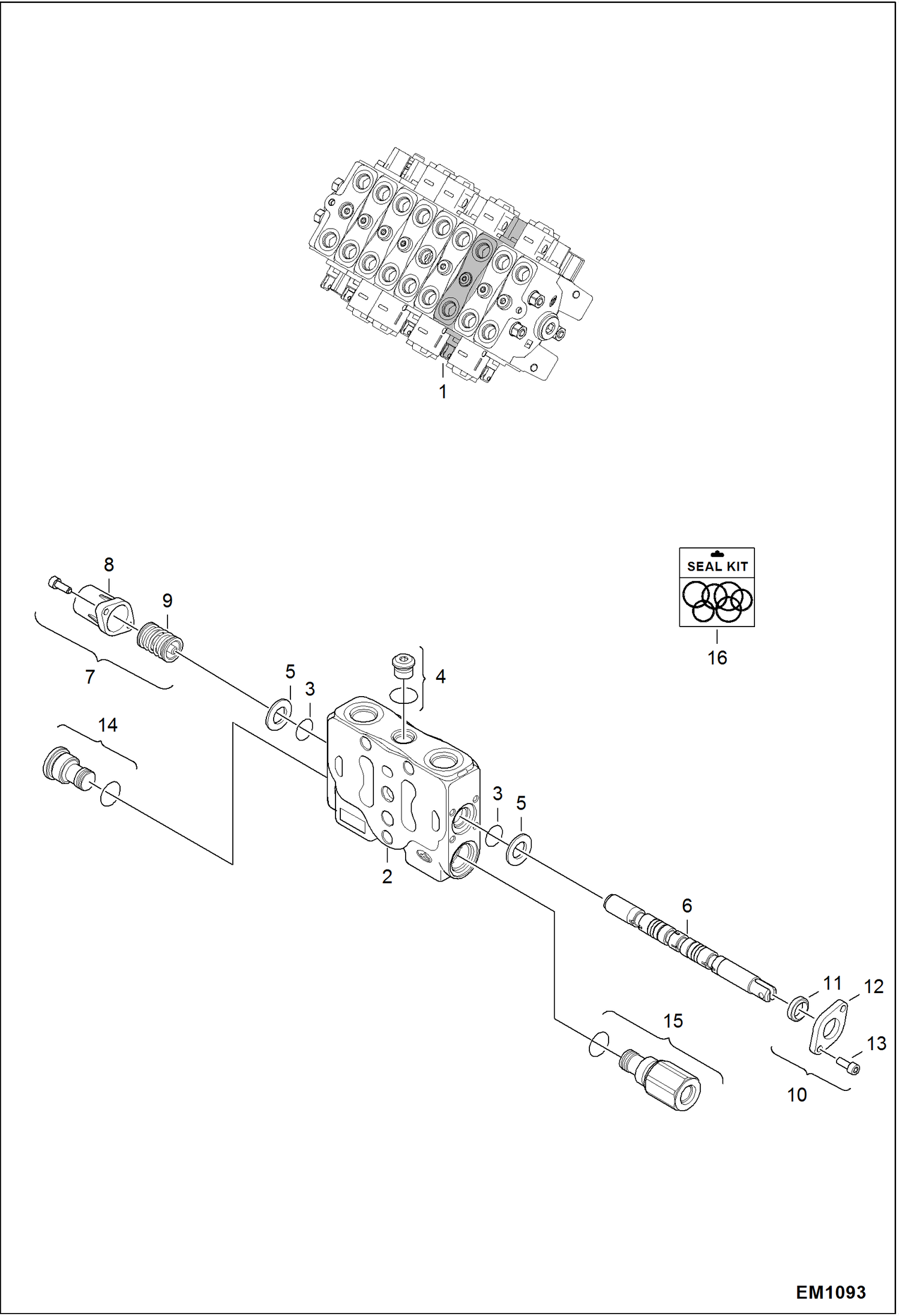

Запчасти Bobcat 319 VALVE SECTION (LH Travel) HYDRAULIC SYSTEM

1

6979435

VALVE W/Ref. 2-17

2

6693131

KIT W/Ref. 3-6

3

BLOCK NLA - Order Ref. 2

4

6680093

PLUG

5

6680095

WASHER

6

6680094

O-RING

7

6680068

KIT W/Ref. 8-9

8

6679496

END CAP

9

7015356

SPRING ASSY

10

6680097

KIT W/Ref. 11-13

11

6679912

SEAL

12

6679911

SLEEVE

13

6680071

SCREW

14

6680057

PLUG

15

6693139

GF/SDS100-SAE6 INLET JOINT

16

6693122

H2H03/SDS100 SPOOL

17

6979443

SEAL KIT
