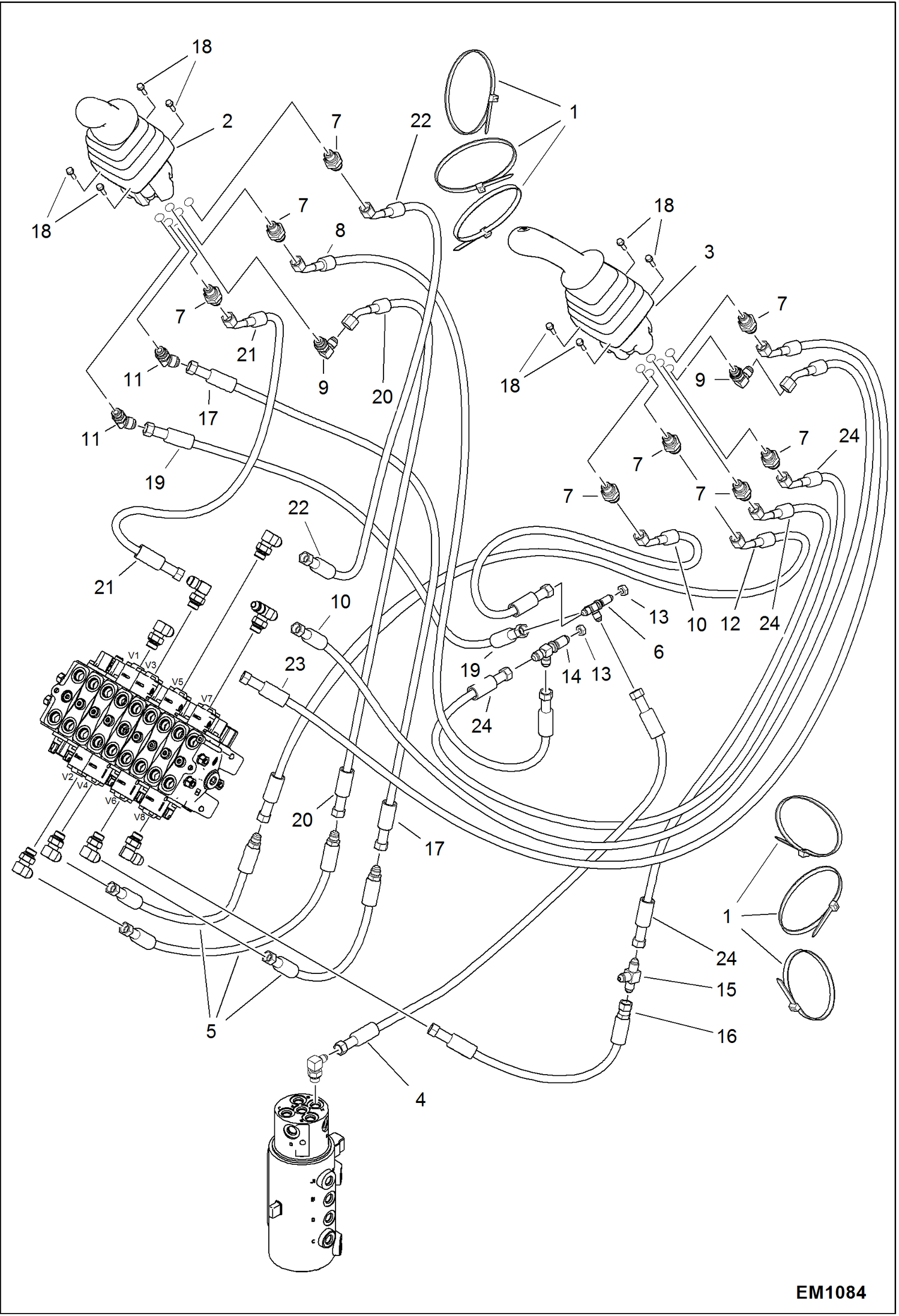

Запчасти Bobcat 319 HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677893

JOYSTICK See Illustration RH JOYSTICK CONTROLS/ EM1097

3

6677894

JOYSTICK See Illustration LH JOYSTICK CONTROLS/ EM1098

4

7175440

HOSE ASSEMBLY Was 7106604 - A

5

7175439

HOSE ASSEMBLY Was 7109285 - A

6

7109286

FTG HYD BLKHD

7

15KB0404

FTG HYD S Connector W/Ref. 8

8

79K4

O RING 10

9

17KB0404

FTG HYD ELBOW 90 W/Ref. 10

10

79K4

O RING 10

11

18KB0404

FTG HYD ELBOW 45 W/Ref. 12

12

79K4

O RING 10

13

86F3

LOCKNUT

14

91K3

TEE

15

10K3

TEE

16

7175449

HOSE ASSEMBLY Was 7170535 - A

17

7175429

HOSE ASSEMBLY Was 7106590 - A

18

26GM6020

SCREW

19

7175438

HOSE ASSEMBLY Was 7116647 - A

20

7175435

HOSE ASSEMBLY Was 7108936 - A

21

7175432

HOSE ASSEMBLY Was 7108929 - A

22

7175436

HOSE ASSEMBLY Was 7108938 - A

23

7175437

HOSE ASSEMBLY Was 7108940 - A

24

7175433

HOSE ASSEMBLY Was 7108930 - A

25

7175430

HOSE ASSEMBLY Was 7106613 - A

26

7175431

HOSE ASSEMBLY Was 7108928 - A

27

7175434

HOSE ASSEMBLY Was 7108931 - A
