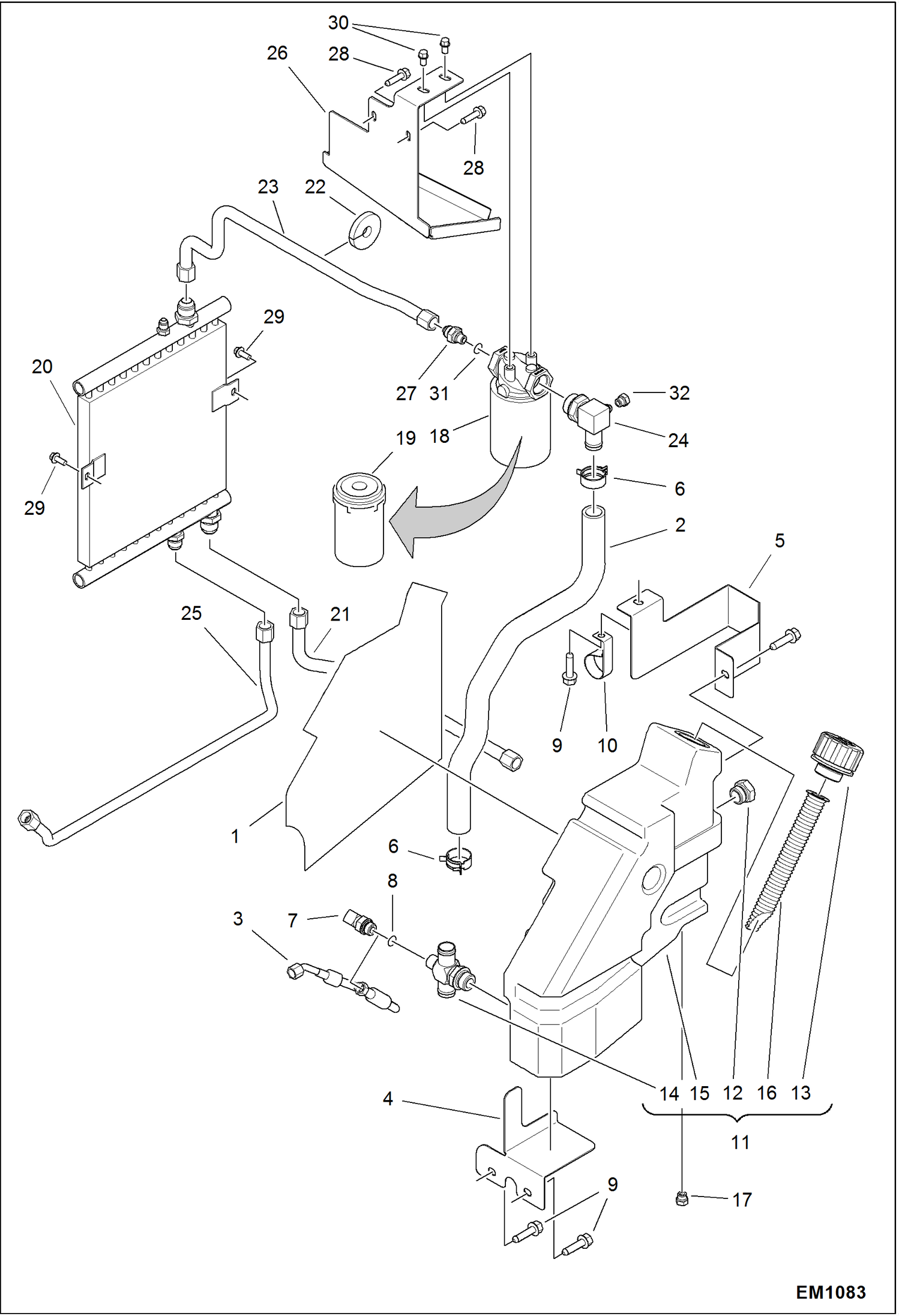

Запчасти Bobcat 319 HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC SYSTEM

1

6808113

INSULATION

2

6810208

HOSE

3

7175446

HOSE ASSY Was 7106586 - A

4

7110693

SUPPROT HYD TANK

5

7110694

SUPPORT HYD TANK

6

5HM35

HOSECLAMP

7

17KB0406

FITTING, HYD ELBOW w/ref. 79k6 - W/Ref. 8 Was 17KB406 - D

8

79K6

O RING 10

9

26GM10020

BOLT

10

30HJ624

CLAMP

11

7110940

TANK ASSY HYDR W/Ref. 12-16

12

6665915

GAUGE

13

6674690

CAP , HYD BREATHER

14

6806993

TEE

15

7105886

TANK

16

7134222

SCREEN Was 6587168 - A

17

24K5

PLUG

18

6654897

FILTER ASSY W/Ref. 19

19

6653336

ELEMENT

20

6675291

COOLER

21

6806810

TUBE

22

6807239

SEAL

23

6812952

TUBE

24

7106192

TEE

25

7116531

TUBELINE

26

7120774

BRACKET FILTER Was 7116325 - A

27

15KB1216

FITTING, HYD CONNECTOR W/Ref. 29

28

26GM8016

SCREW

29

29CM812

BOLT

30

35C610

BOLT 5

31

79K16

O RING 10

32

36K5

CAP Was 6674690 - A
