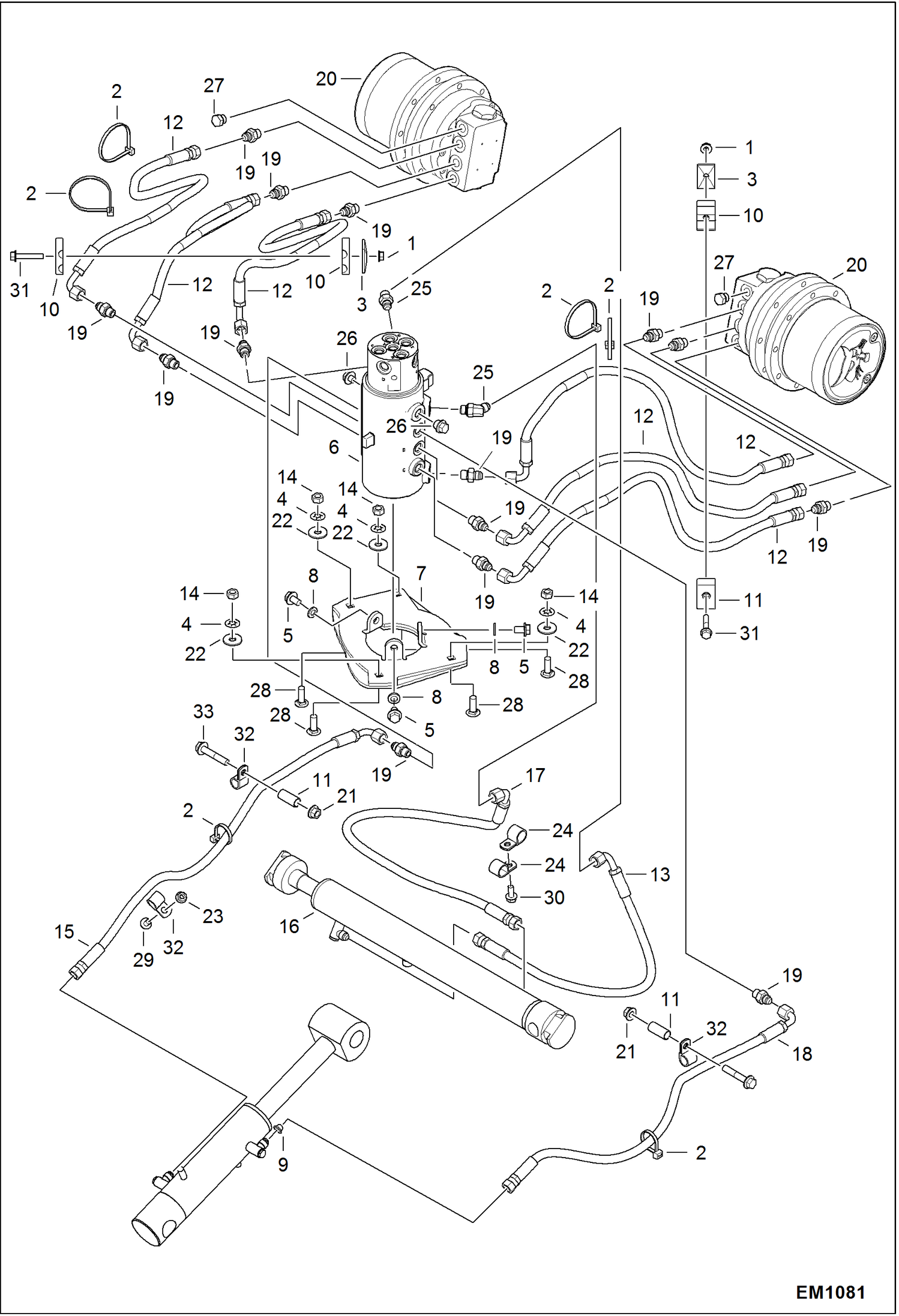

Запчасти Bobcat 319 HYDRAULIC CIRCUITRY (Lower Group) HYDRAULIC SYSTEM

1

51DM8

NUT

2

6624289

STRAP, TIE

3

6652521

PLATE

4

6674264

RETAINER NUT

5

7151727

SCREW LOCKING

5

7183437

SCREW Was 59CM1016 - A

6

7102237

SWIVEL See Illustration SWIVEL JOINT/ EM1099

6

7156120

SWIVEL, HYD ASSY See Illustration SWIVEL JOINT/ EM1679

7

MOUNT, SWIVEL Was 7104971 - A

7

7184124

MOUNT, SWIVEL Was 7156115 - A

8

7151726

WASHER

9

6586430

ORIFICE

10

6701893

CLAMP

11

6805878

SPACER

12

7103834

HOSE ASSY

13

7103836

HOSE ASSY

14

4DM10

NUT

15

6805758

HOSE

16

7114692

CYLINDERASSY 319K UC See Illustration TRACK CYLINDER/ EM1851

17

7117442

HOSE ASSY

18

7117443

HOSE ASSY

19

15KB0606

FITTING, HYD CONNECTOR W/ O-ring - W/Ref. 20

20

79K6

O RING 10

21

43DM10

NUT

22

17EM100

WASHER

23

43DM8

NUT

24

30H65

CLIP

25

18KB0606

FITTING, HYD ELBOW W/ O-ring - W/Ref. 26

26

79K6

O RING 10

27

24K5

PLUG

28

28CM1040

BOLT use with swivel mount 7184124

28

28CM1030

BOLT use with swivel mount 7156115

29

29CM816

SCREW

30

29CM820

SCREW

31

29CM845

BOLT

32

30H38

CLIP

33

29CM1055

BOLT

34

6685976

MOTOR, DRIVE See Illustration DRIVE MOTOR/ EM1683

35

6812171

PLUG for one speed drive motors
