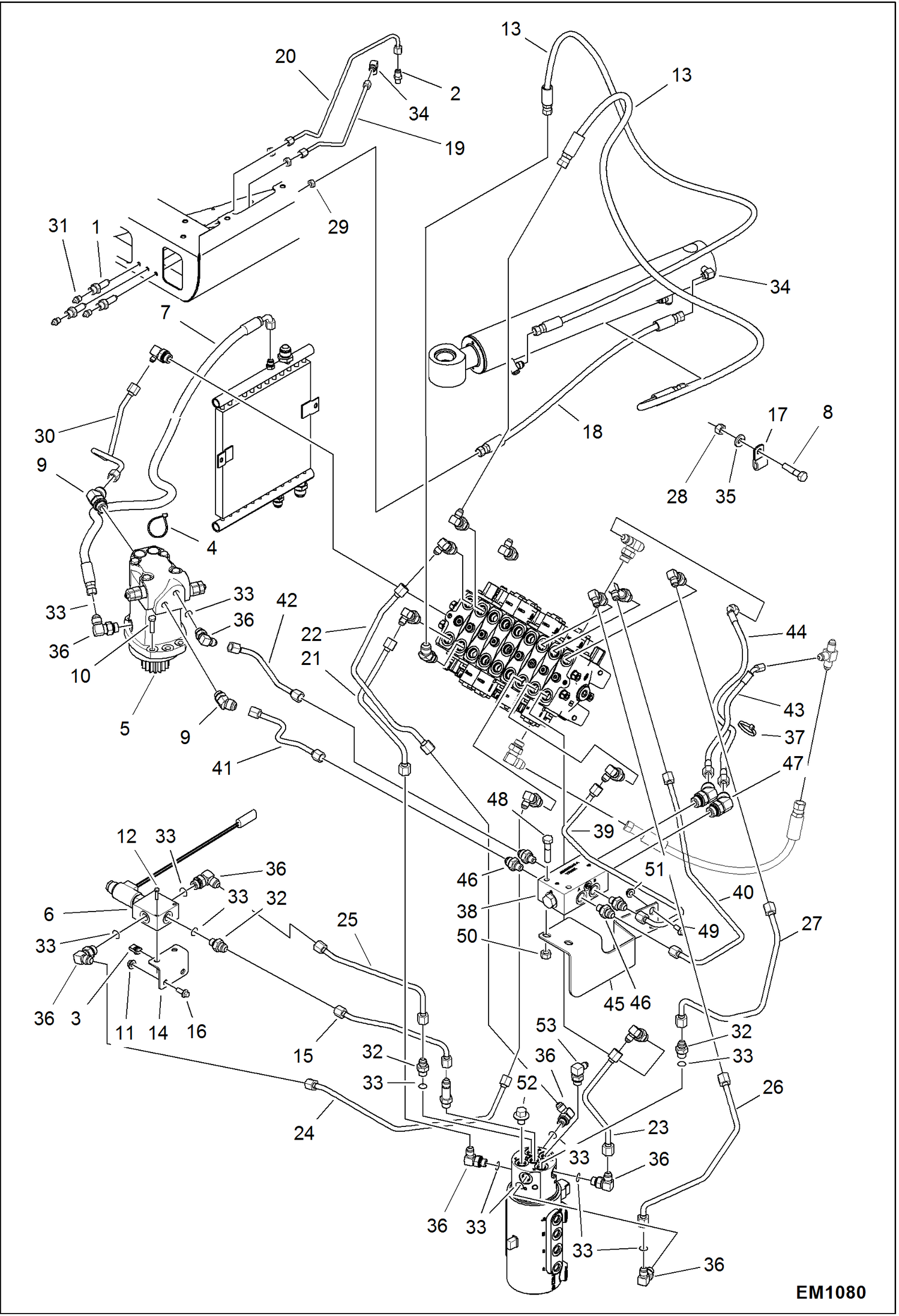

Запчасти Bobcat 319 HYDRAULIC CIRCUITRY (Upper Group) (S/N 563313536 & Above) HYDRAULIC SYSTEM

1

6807184

FITTING

2

89F3

ADAPTOR

3

6676026

NUT

4

6682345

STRAP, TIE 8

5

6685834

MOTOR See Illustration SLEW MOTOR/ EM1684

6

6686508

BLOCK See Illustration SELECTOR VALVE/ EM1095

7

6727058

HOSE

8

1CM820

BOLT

9

18KB0606

FITTING, HYD ELBOW W/ O-ring Was 18KB606 - D

10

53CM1040

SCREW

11

51DM10

NUT

12

1CM650

SCREW

13

7108857

HOSE ASSY

14

7109284

BRACKET

15

7110783

TUBELINE

16

29CM1025

BOLT

17

31H31

CLIP

18

7112340

HOSE ASSY

19

7114795

TUBELINE

20

7114796

TUBELINE

21

7115502

TUBELINE

22

7115503

TUBELINE

23

7115505

TUBELINE

24

7115601

TUBELINE

25

7115610

TUBELINE

26

7115611

TUBELINE

27

7115612

TUBELINE

28

4DM8

NUT

29

86F3

LOCKNUT

30

TUBELINE NLA - Order Ref. 9, 30 Was 7116279 - A

30

7124365

TUBELINE

31

10H25

FITTING, GREASE 5

32

15KB0606

FITTING, HYD CONNECTOR W/ O-ring - W/Ref. 33 Was 15KB606 - D

33

79K6

O RING 10

34

83F3

ELBOW 5

35

6EM80

WASHER, SPRING

36

17KB0606

FITTING W/ O-ring - W/Ref. 33 Was 17KB606 - D

37

6682345

STRAP, TIE 8

38

7003480

VALVE, LOCK SLEW See Illustration SLEW LOCK VALVE/ EM1096

39

7170107

TUBELINE

40

7170188

TUBELINE

41

7170340

TUBELINE

42

7170341

TUBELINE

43

7175451

HOSE, HYD Was 7170342 - A

44

7175450

HOSE, HYD Was 7170343 - A

45

7170402

HOLDER

46

15KB0608

FITTING, HYD CONNECTOR Was 15KB608 - D

47

18KB0404

FTG HYD ELBOW 45 Was 18KB404 - D

48

29CM1070

BOLT

49

29CM825

BOLT

50

51DM10

NUT

51

51DM8

NUT

52

6812171

PLUG for one speed drive motors

53

17KB0406

FITTING, HYD ELBOW w/ref. 79k6 Was 17KB406 - D
