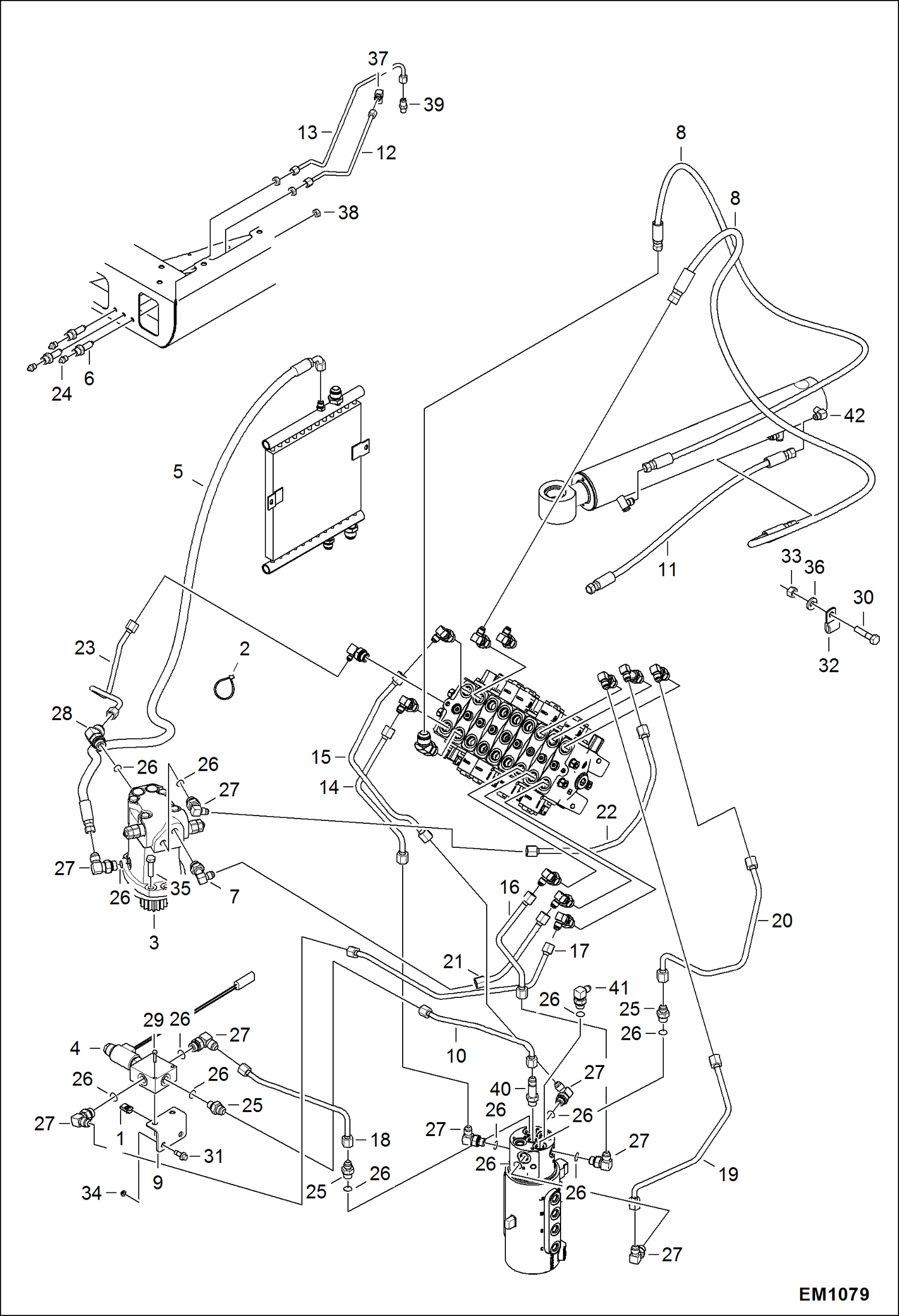

Запчасти Bobcat 319 HYDRAULIC CIRCUITRY (Upper Group) (S/N 563313535 & Below) HYDRAULIC SYSTEM

1

6676026

NUT

2

6682345

STRAP, TIE 8

3

6685834

MOTOR See Illustration SLEW MOTOR/ EM1684

4

6686508

BLOCK See Illustration SELECTOR VALVE/ EM1095

5

6727058

HOSE

6

6807184

FITTING

7

6812815

FITTING

8

7108857

HOSE ASSY

9

7109284

BRACKET

10

7110783

TUBELINE

11

7112340

HOSE ASSY

12

7114795

TUBELINE

13

7114796

TUBELINE

14

7115502

TUBELINE

15

7115503

TUBELINE

16

7115505

TUBELINE

17

7115601

TUBELINE

18

7115610

TUBELINE

19

7115611

TUBELINE

20

7115612

TUBELINE

21

7115672

TUBELINE

22

7124364

TUBELINE

23

TUBELINE NLA - Order Ref. 9, 30 Was 7116279 - A

23

7124365

TUBELINE

24

10H25

FITTING, GREASE 5

25

15KB0606

FITTING, HYD CONNECTOR W/ O-ring - W/Ref. 26 Was 15KB606 - D

26

79K6

O RING 10

27

17KB0606

FITTING W/ O-ring - W/Ref. 26 Was 17KB606 - D

28

18KB0606

FITTING, HYD ELBOW W/ O-ring - W/Ref. 26 Was 18KB606 - D

29

1CM650

SCREW

30

1CM820

BOLT

31

29CM1025

BOLT

32

31H31

CLIP

33

4DM8

NUT

34

51DM10

NUT

35

53CM1040

SCREW

36

6EM80

WASHER, SPRING

37

83F3

ELBOW 5

38

86F3

LOCKNUT

39

89F3

ADAPTOR

40

16KB0606

FTG HYD L CONNECTOR Was 16KB606 - D

41

17KB0406

FITTING, HYD ELBOW w/ref. 79k6 - W/Ref. 26 Was 17KB406 - D
