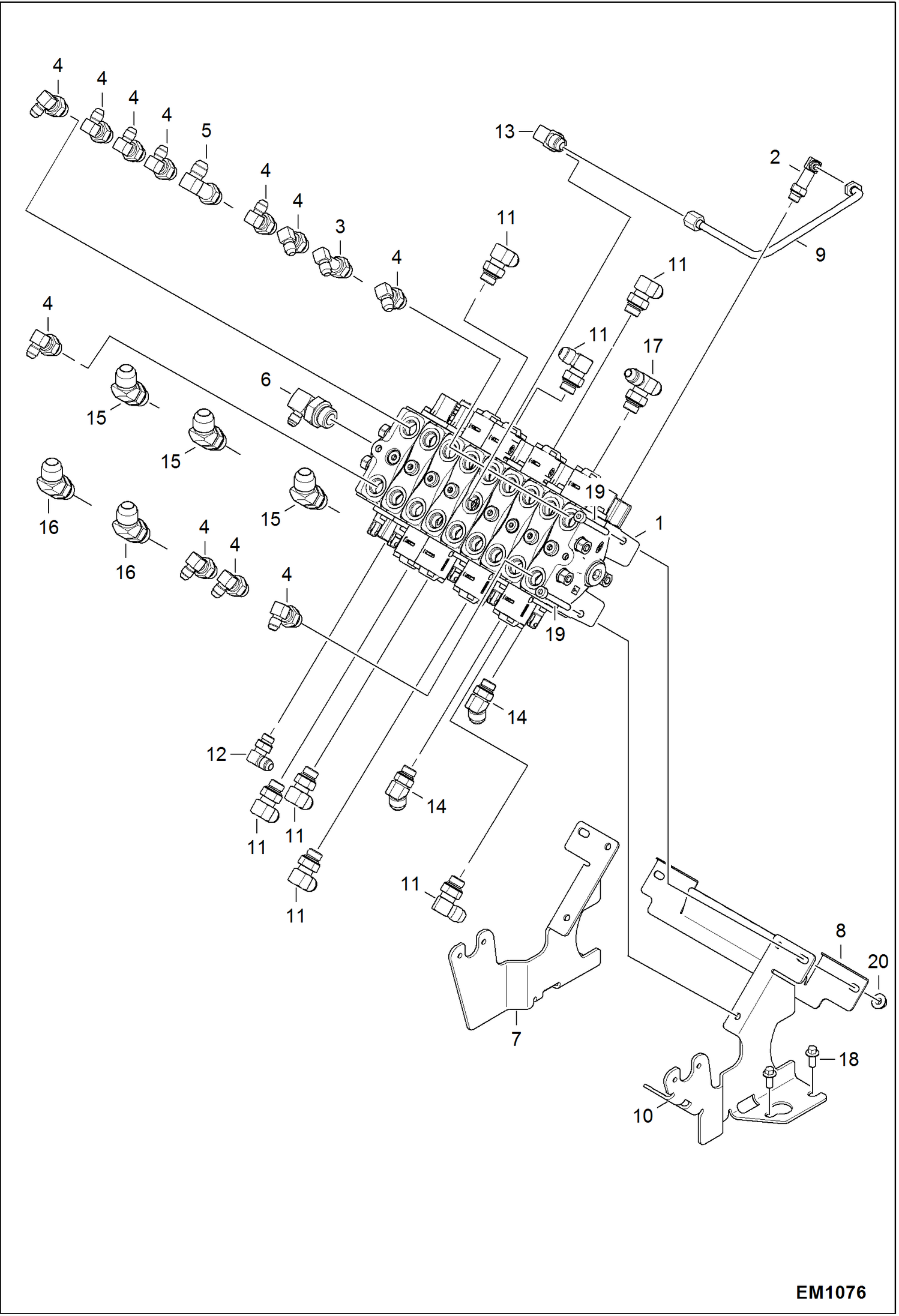

Запчасти Bobcat 319 HYDRAULIC CIRCUITRY (Control Valve Installation) HYDRAULIC SYSTEM

1

6685835

VALVE See Illustration CONTROL VALVE/ EM1085

2

6812815

FITTING W/Ref. 22

3

6812817

ELBOW W/Ref. 21

4

6812818

ELBOW W/Ref. 21

5

6812820

ELBOW W/Ref. 21

6

7108793

FITTING CROSS W/Ref. 24

7

7116277

MOUNT, VALVE RH

8

7116278

BRACKET

9

7116530

TUBELINE

10

7144872

MOUNT, VALVE LH

11

17KB0404

FTG HYD ELBOW 90 W/Ref. 23 Was 17KB404 - D

12

17KB0606

FITTING W/ O-ring - W/Ref. 22 Was 17KB606 - D

13

17KB0608

FITTING, HYD ELBOW W/Ref. 21 Was 17KB608 - D

14

18KB0606

FITTING, HYD ELBOW W/ O-ring - W/Ref. 22 Was 18KB606 - D

15

18KB0608

FTG HYD ELBOW 45 W/Ref. 21 Was 18KB608 - D

16

18KB0808

FTG HYD ELBOW 45 W/Ref. 21 Was 18KB808 - D

17

19KB0404

FITTING, HYD TEE W/Ref. 23 Was 19KB404 - D

18

29CM1016

BOLT

19

3GM840

SCREW

20

51DM8

NUT

21

79K8

O RING 10

22

79K6

O RING 10

23

79K4

O RING 10

24

79K12

O RING 10
