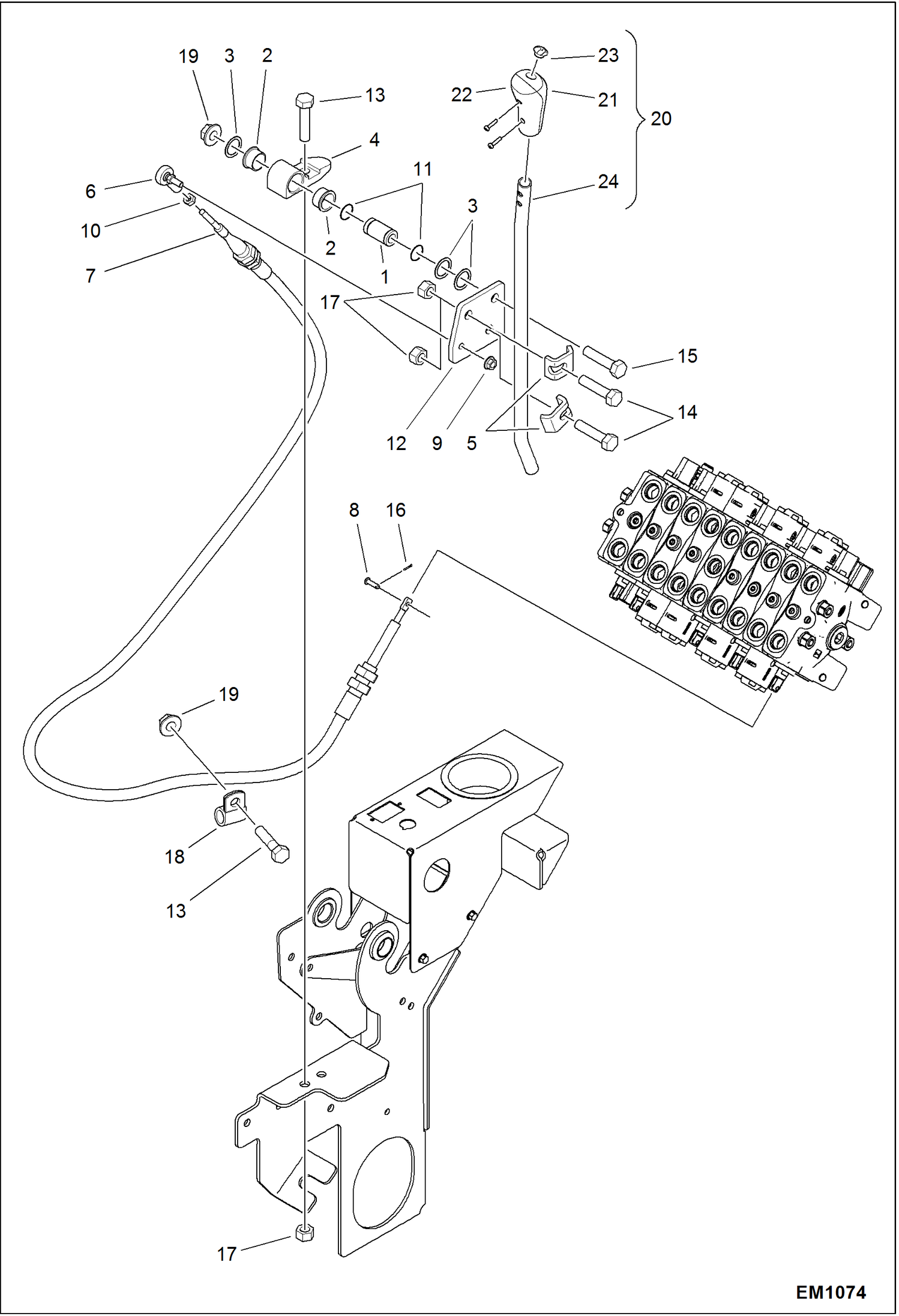

Запчасти Bobcat 319 BLADE CONTROL CONTROLS

1

6536545

SLEEVE

2

6536801

BUSHING

3

6536802

WASHER

4

6537481

MOUNT

5

6562266

CLAMP

6

6631036

JOINT

7

6669604

CABLE

8

6801068

PIN

9

98D4

NUT

10

62D4

NUT

11

58K015

O-RING 10 Was 58K15 - D

12

7115049

HANDLE BRACKET

13

1CM1030

BOLT

14

1CM1040

BOLT

15

1CM1055

BOLT

16

1F212

PIN

17

53DM10

NUT

18

30H32

CLIP

19

51DM10

NUT

20

LEVER,BLADE NLA - one speed - Order Ref. 21-24 - Was 6818301 - A

21

6675831

HANDLE front half

22

6675832

HANDLE back half

23

6684644

INSERT

24

6810706

TUBE
