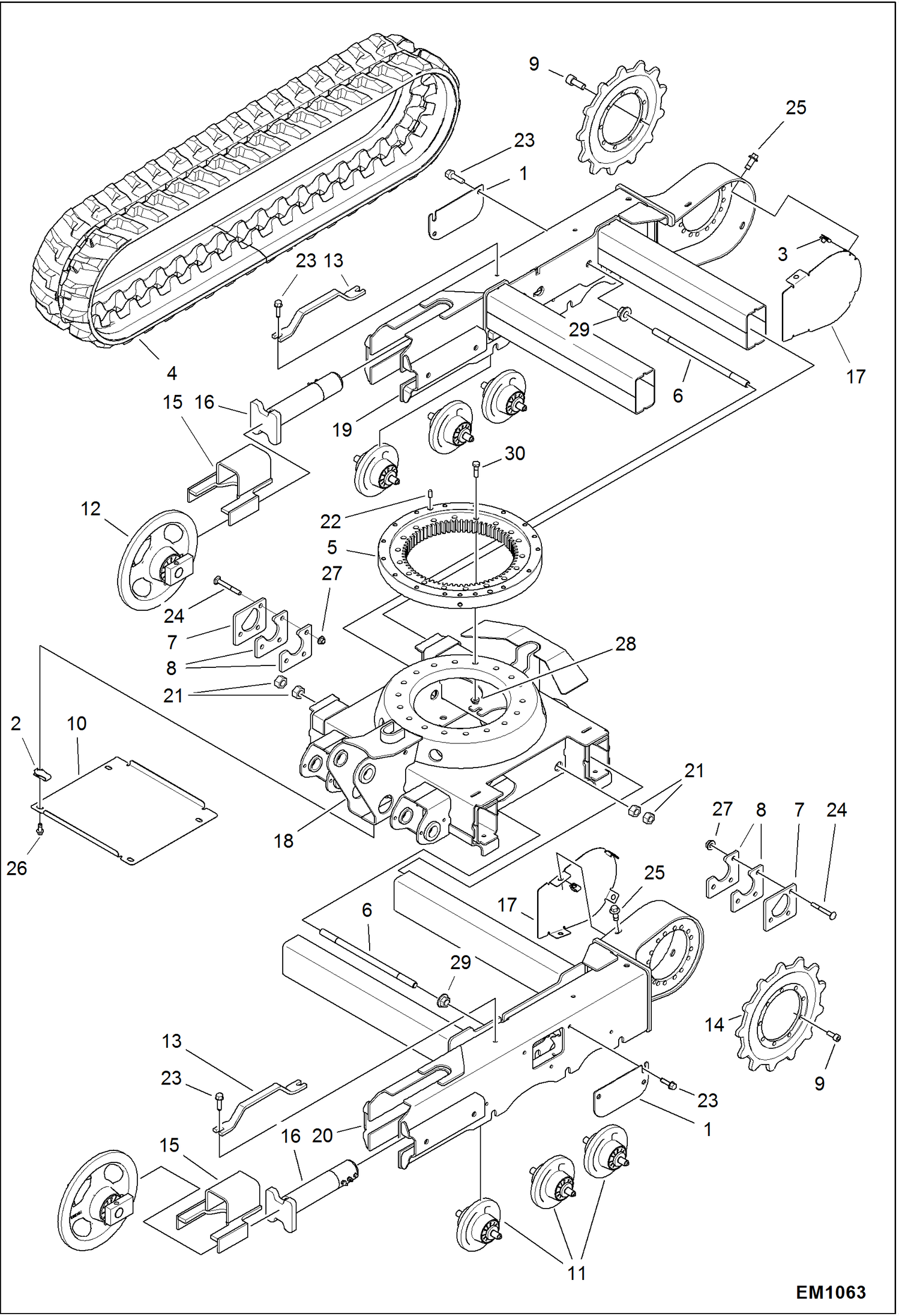

Запчасти Bobcat 319 UNDERCARRIAGE UNDERCARRIAGE

1

6596723

COVER

2

6675722

NUT

3

6676169

NUT

4

6685210

TRACK, RUBBER

5

6686964

BEARING, SLEW

6

6805050

ROD

7

6805377

MOUNT

8

6805378

MOUNT

9

6805750

SCREW

10

7100298

COVER

11

7101818

ROLLER See Illustration ROLLER ASSY/ EM1066

12

7101821

IDLER See Illustration IDLER ASSY/ EM1065

13

7101824

GUIDE TRACK

14

7161067

SPROCKET, PAINT Was 7101831 - A

15

7101835

YOKE W/A

16

7124134

CYL ASSY GRS 319 See Illustration TRACK TENSION CYLINDER/ EM1064 Was 7114325 - A

17

7103795

COVER MOTOR

18

7115069

UNDERCARRIAGE W/A

19

7116214

FRAME, TRACK W/A RH

20

7116215

FRAME, TRACK W/A LH

21

1DM16

NUT

22

23JM1232

PIN PARALLEL

23

26GM10020

BOLT

24

28CM1040

BOLT

25

29CM825

BOLT

26

29CM1025

BOLT

27

51DM10

NUT

28

51DM12

NUT

29

51DM16

NUT

30

7CM1260

BOLT
