Запчасти Bobcat 319 DOOR MAIN FRAME

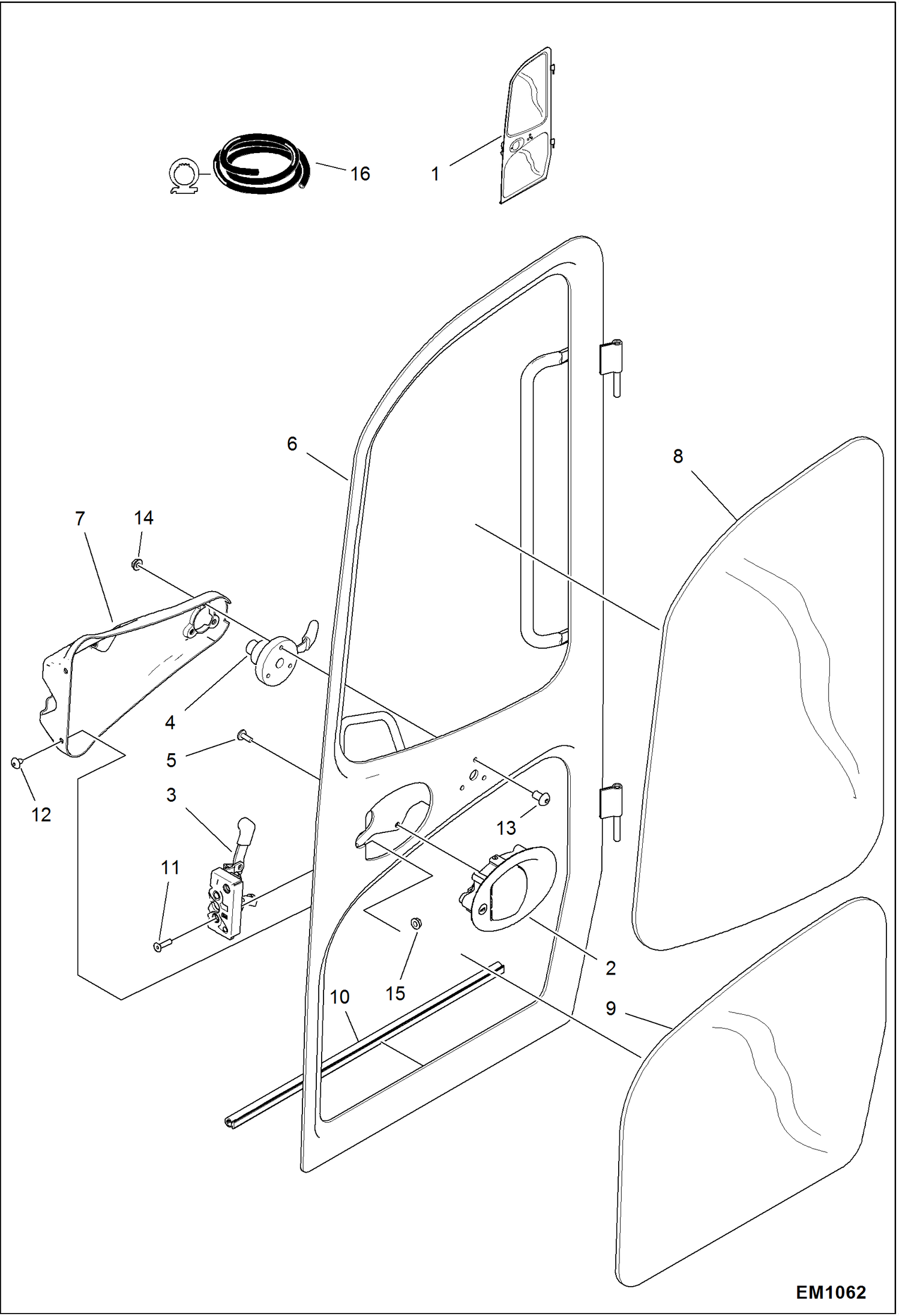

Схема запчастей Bobcat 319 - DOOR MAIN FRAME

Артикул

Название

Примечание

Количество

1

7117231

DOOR, CAB ASSY W/Ref. 2-15

2

6688997

DOOR HANDLE

3

6688998

LATCH ROTARY

4

6689000

LATCH

5

6803202

SCREW

6

7114733

DOOR W/A W/A

7

7114756

COVER LATCH

8

WINDOW, DOOR See Illustration DOOR WINDOW KIT/ EM1898 NLA - Order kit # 7120479

9

WINDOW, DOOR See Illustration DOOR WINDOW KIT/ EM1897 NLA - Order kit # 7120480

10

SEAL NLA - 22.5'' (572 mm) long - Order Ref. 16

11

9G524

SCREW

12

6589675

SCREW

13

27CM630

SCREW

14

51DM6

NUT

15

97D5

NUT

16

6684518

SEAL bulk - sold per foot

Выбрано товаров: 16
