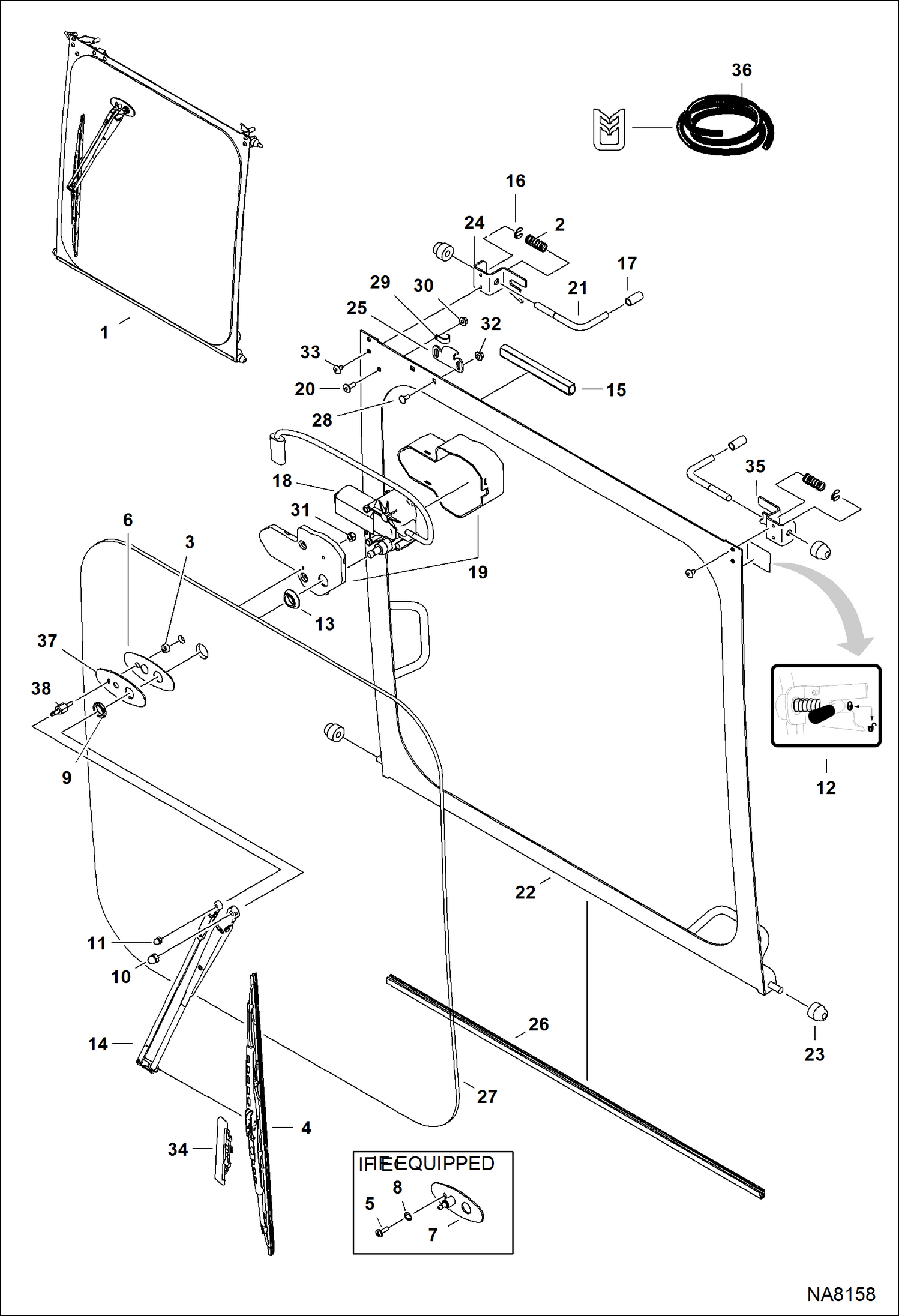

Запчасти Bobcat 319 FRONT WINDOW MAIN FRAME

1

6816165

WINDOW W/Ref. 2-34

2

6610082

SPRING

3

6664085

BUSHING

4

BLADE, WIPER WINDOW NLA - used adapter 6677845 - Order 7147359 wiper blade - Was 6677834

4

7147359

BLADE, WIPER WINDOW Use W/Ref. 14 (NLA 6680180 Arm) & Ref. 7 - A

4

7188372

BLADE, WIPER WINDOW Use W/Ref. 14 (7234015 Arm), Ref. 37 & Ref. 38

5

6677837

BOLT

6

6677839

GASKET

7

SWIVEL, PLATE ASSY NLA - Use W/Ref. 14 (NLA/ 6680180 arm) - Order 7188371 wiper arm, 7188372 wiper blade, 7188373 swivel & 7009047 plate - Was 6677840 - A

8

6677841

WASHER

9

6677842

NUT

10

6677843

NUT

11

6677844

NUT

12

7103874

DECAL

13

6677847

GROMMET

14

ARM NLA - Use W/Ref 4 (NLA 7147359 Blade) & Ref. 7 (6677840 Swivel) Was 6810180

14

7234015

ARM, WIPER Use W/Ref. 4 (7188372 Blade), Ref. 37 & Ref. 38 - A

15

6680971

RETAINER

16

6681651

RING

17

6681652

CAP

18

6684139

MOTOR

19

6685140

COVER

20

6803202

SCREW

21

6812413

PIN

22

FRAME, FRONT WINDOW NLA - Order Ref. 1 Was 6812416 - A

23

6813028

ROLLER

24

7225223

BRACKET, LATCH LH Was 6814423 - A

25

7178840

BRACKET, LATCH Was 6816437 - A

26

SEAL NLA - 32.5'' (826 mm) long - Order Ref. 35

27

WINDOW See Illustration FRONT WINDOW KIT/ NA8039 NLA - Order kit # 7110442

28

21CM616

SCREW

29

30H10

CLIP

30

43DM6

NUT

31

4DM5

NUT

32

51DM6

NUT

33

6589675

SCREW

34

ADAPTER, BLADE NLA - Use W/Ref. 4 # 6677834 Was 6677845 - A

35

7225224

BRACKET LATCH, RH Was 6814423 - A

36

6682492

TRIM bulk - sold per foot

37

7009047

PLATE Use W/Ref. 38 (7188373 Swivel, Plate Assy) Ref. 14 (7234015 Arm) & Ref. 4 (7188372 Blade)

38

7188373

SWIVEL, PLATE ASSY Use W/Ref. 37 (7009047 Plate) Ref. 14 (7234015 Arm) & Ref. 4 (7188372 Blade)

39

6677837

BOLT Use W/Ref. 7 (6677840 Swivel) & Ref. 8 (6677841 Washer)
