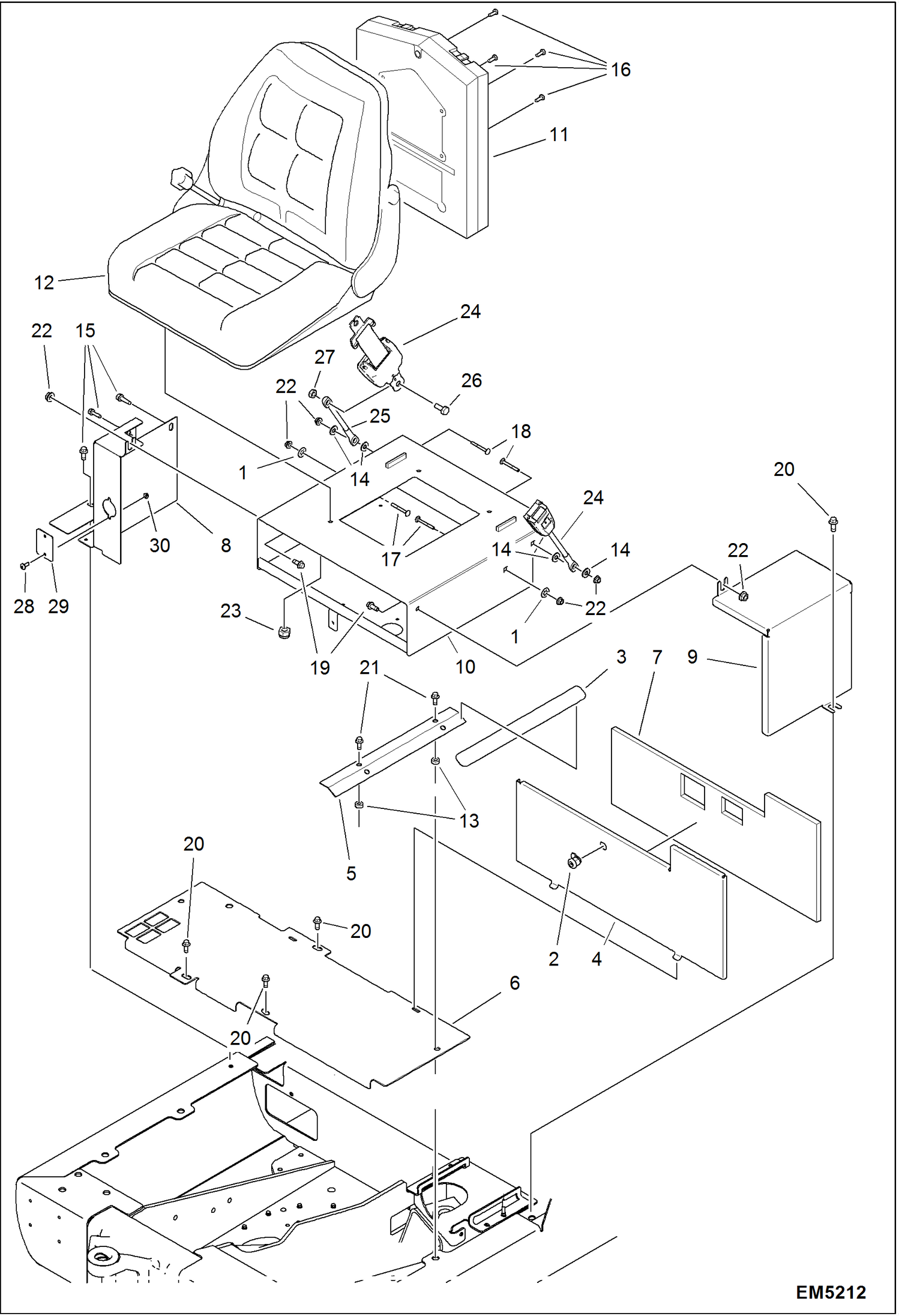

Запчасти Bobcat 319 OPERATOR SEAT INSTALLATION (W/Seat #7180305) MAIN FRAME

1

6674264

RETAINER NUT

2

6675723

LOCK

3

6807327

SAFETY TREAD

4

7108969

COVER FRONT

5

7111123

ANGLE

6

7114508

PLATE FLOOR

7

7120138

INSULATION

8

7144959

COVER, RH

9

7144960

COVER, LH

10

7171069

TRAY, SEAT

11

7178637

BOX, MANUAL

12

7180305

SEAT ASSY

13

7187082

SPACER Was 6503451 - B

14

15EM100

WASHER

15

26GM10020

BOLT

16

27CM510

SCREW

17

28CM1030

BOLT

18

28CM1040

BOLT

19

29CM1020

BOLT

20

29CM1030

BOLT

21

29CM1045

BOLT

22

43DM10

NUT

23

51DM8

NUT

24

7207354

BELT, SEAT Was 7143563 - A

25

7207356

CABLE, STALK Was 7163348 - A

26

1CM1025

BOLT

27

53DM10

NUT

28

6803202

SCREW

29

7111122

COVER

30

43DM6

NUT
