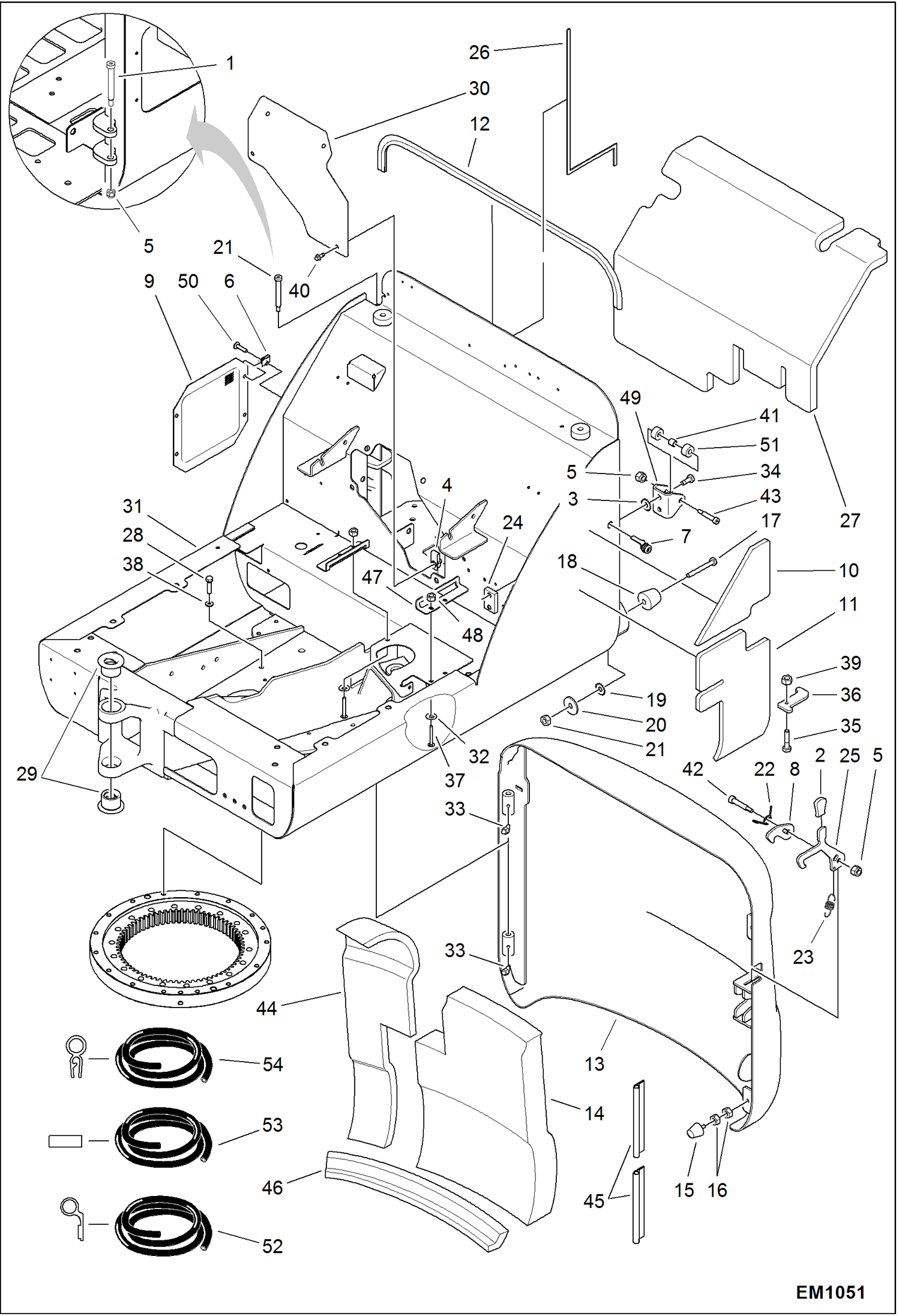

Запчасти Bobcat 319 UPPERSTRUCTURE MAIN FRAME

1

6675732

SEAL bulk - sold per foot

2

6564452

GRIP

3

6675273

WASHER

4

6675722

NUT

5

59D6

NUT

6

6676026

NUT

7

6678025

LOCK

8

6733667

LATCH, REAR DOOR

9

7198866

SCREEN Was 6807519 - A

10

6807606

INSULATION

11

6807607

INSULATION

12

SEAL NLA - 26.9'' (991 mm) long - Order Ref. 1

13

7145284

TAILGATE W/A Was 7101319 - A

14

6808117

INSULATION

15

6733616

BUMPER W/ tailgate 7145284

16

61D5

NUT W/ tailgate 7145284

17

29CM1050

BOLT W/ tailgate 7101319

18

6808365

BUMPER W/ tailgate 7101319

19

6675273

WASHER W/ tailgate 7101319

20

6560899

WASHER W/ tailgate 7101319

21

51DM10

NUT W/ tailgate 7101319

22

6810132

SPRING

23

6810141

SPRING

24

6810802

BAR

25

6811909

HANDLE

26

SEAL NLA - 38'' (965 mm) long- Order Ref. 41

27

7102616

INSULATION

28

56CM1045

SCREW

29

7104174

BUSHING

30

7104985

COVER

31

7114453

UPPERSTRUCTURE W/A

32

6675859

RETAINER

33

10H25

FITTING, GREASE 5

34

17C820

BOLT

35

1CM612

BOLT

36

6808706

STOP

37

28CM816

BOLT

38

27E6

WASHER 5

39

4DM6

NUT

40

29CM1020

BOLT

41

6648416

SEAL BULK /FT bulk - sold per foot

42

38C824

SCREW

43

38C840

BOLT

44

7149189

INSULATION

45

SEAL NLA - 7.5'' (190 mm) long - Order Ref. 49

46

7114285

INSULATION

47

7102619

CLAMP BATTERY

48

1DM8

NUT

49

6676396

SEAL bulk - sold per foot

50

6809030

SCREW

51

6809726

ROLLER

52

6809727

CHANNEL

53

6809734

BUSHING

54

6809845

BOLT
