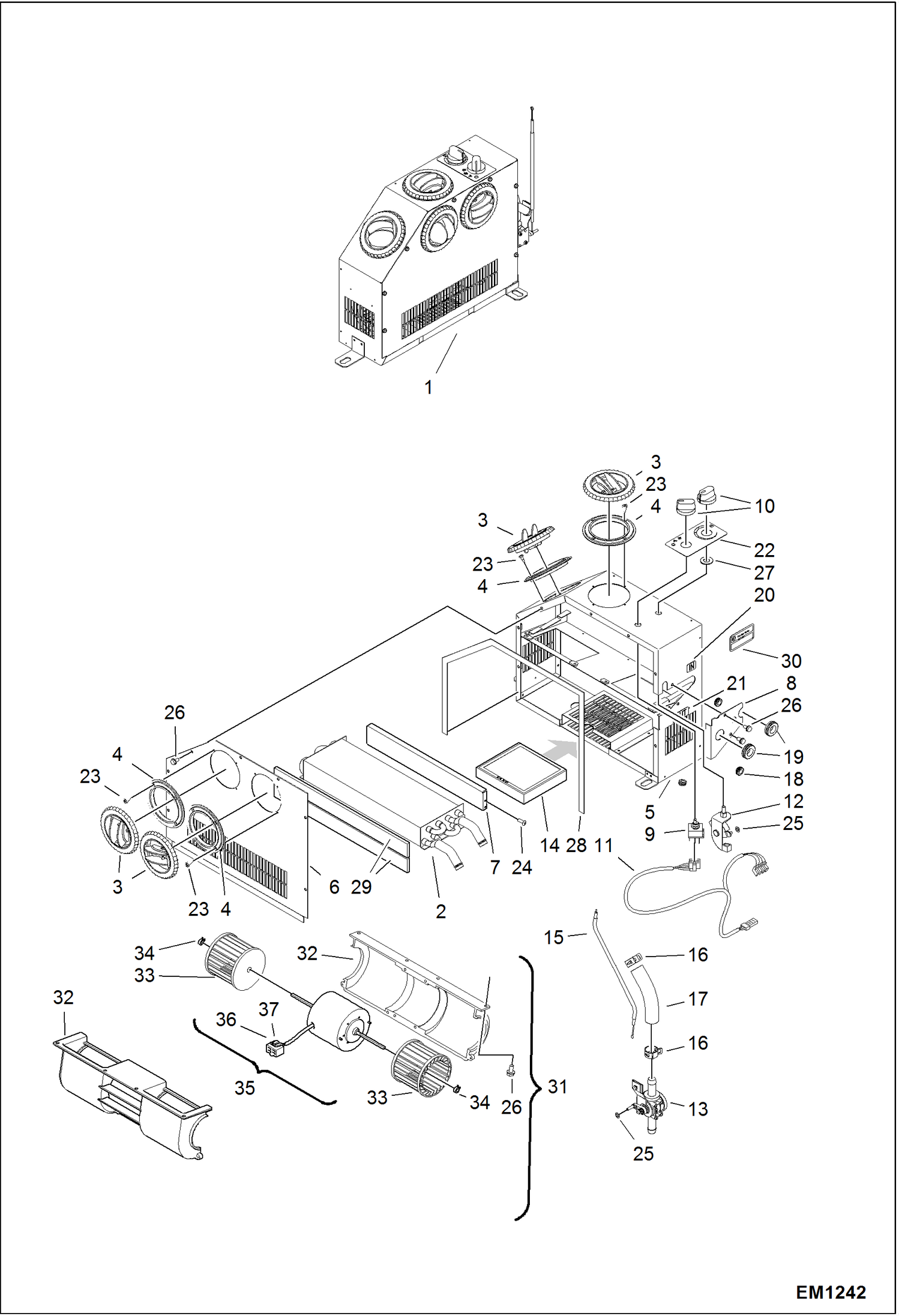

Запчасти Bobcat 319 HEATER ASSY (Heater #7138829) ACCESSORIES & OPTIONS

1

7138829

HEATER CAB W/Ref. 2-37

2

7010680

HEATER COIL

3

6676621

LOUVER

4

6675179

FLANGE

5

7010681

CASING

6

7010682

COVER

7

7010683

PLATE

8

7010684

COIL COVER

9

6675176

SWITCH

10

10

6684940

KNOB

11

7010685

WIRING HARNESS

12

6676622

CONTROL

13

7217229

HEATER CONTROL VALVE Was 7010686 - A

14

7010687

FILTER

15

7010688

BOWDEN CABLE

16

6676629

CLAMP

17

6684944

HEATER HOSE

18

6675513

GROMMET

19

6684946

GROMMET

20

7010689

OVERLAY 'IN'

21

7010690

OVERLAY 'OUT'

22

6513721

BOLT

23

6684951

SCREW

24

7010691

POP RIVET

25

7010692

PUSHNUT

26

6677580

SCREW

27

7010693

WASHER

28

6696953

FOAM

29

6696954

INSULATION

30

LABEL, PRODUCT NSS Was 7010694 - D

31

7010058

BLOWER 12V W/Ref. 32-37

32

6676615

HOUSING

33

6676616

FAN

34

6676618

CLIP

35

7010695

MOTOR 12V W/Ref. 36-37

36

7010697

PCKARD 4-WAY CON. 4-way

37

7010698

PCKARD TERMINAL
