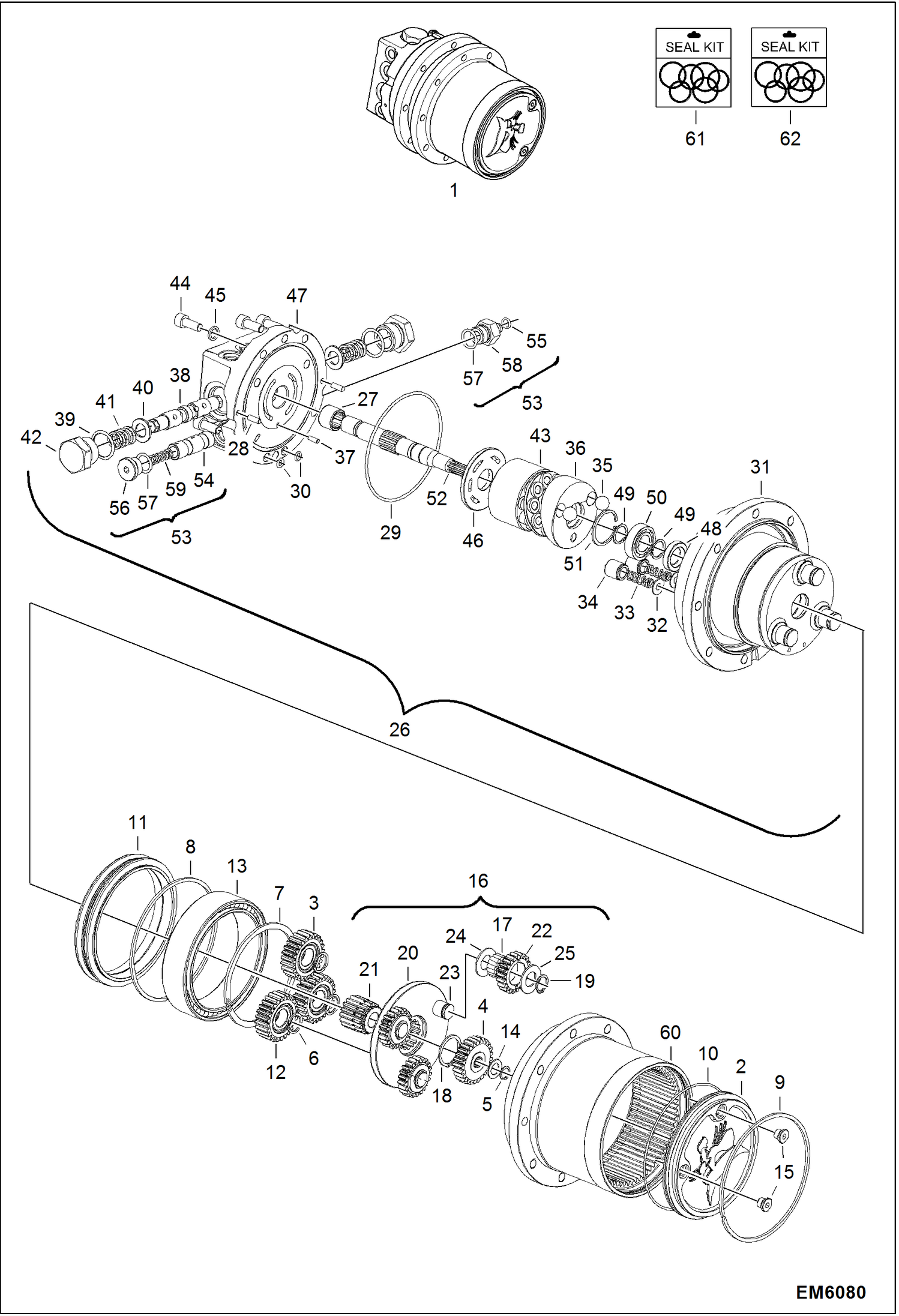

Запчасти Bobcat 319 DRIVE MOTOR (2 Speed) ACCESSORIES & OPTIONS

1

6691262

MOTOR, DRIVE W/Ref. 2-60

2

7000403

COVER END

3

7000404

GEAR PLANETARY

4

7015440

GEAR, SUN

5

6688118

RING

6

7000406

RING EXTERNAL SNAP

7

7000407

ACCESSORY SEEGER D.100

8

7000408

RING INTERNAL SNAP BR125

9

7000409

RETAINER INT. BR130

10

7000410

ORING

11

7000411

SEAL DOUBLE FRONT

12

7000412

BEARING NEEDLE

13

7000413

BEARING BALL

14

6688119

SHIM

15

SEAL NLA - Was 6679161 - A

16

7015441

SET, GEAR W/Ref. 17-25

17

6667763

BEARING

18

7000422

RING EXTERNAL SNAP

19

7000421

RING EXTERNAL SNAP

20

7015442

CARRIER

21

7000416

GEAR SUN

22

7015443

GEAR

23

7000418

PIN

24

7000419

WASHER

25

7000420

WASHER

26

7000961

MOTOR HYDRAULIC W/Ref. 27-59

27

6667781

BEARING

28

6688111

PIN

29

6667779

O-RING

30

6688110

O-RING

31

7000962

HUB

32

6688101

WASHER

33

6688100

SPRING

34

6688099

PISTON

35

6688107

BALL

36

6693117

SWASH PLATE 9-15 DEGREES 9°-15°

37

6667782

DOWEL PIN

38

6698694

SPOOL, VALVE

39

6667777

O-RING

40

6688106

WASHER

41

6688105

SPRING

42

6688104

PLUG

43

6688112

KIT

44

6688108

BOLT

45

6667788

WASHER

46

6671905

PLATE

47

7000963

COVER

48

6667774

SEAL

49

7010972

RING, SNAP

50

7015444

BEARING, BALL

51

6667762

SNAP RING

52

7000435

SHAFT MOTOR

53

6688117

VALVE W/Ref. 54-59

54

7013330

PISTON, DISPLACEMENT

55

25K20010

O RING 10 Was 6683434 - D

56

7000964

PLUG

57

6679861

O-RING Was 7000965 - A

58

7000966

FITTING

59

7003680

SPRING

60

7000402

HOUSING OUTPUT

61

7000959

KIT, SEAL basic - W/Ref. 10, 30, 29, 39, 48, 57, 60

62

7000960

KIT REBUILT major rebuild - W/Ref. 10, 11, 30, 29, 39, 48, 57, 60
