Запчасти Bobcat 319 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

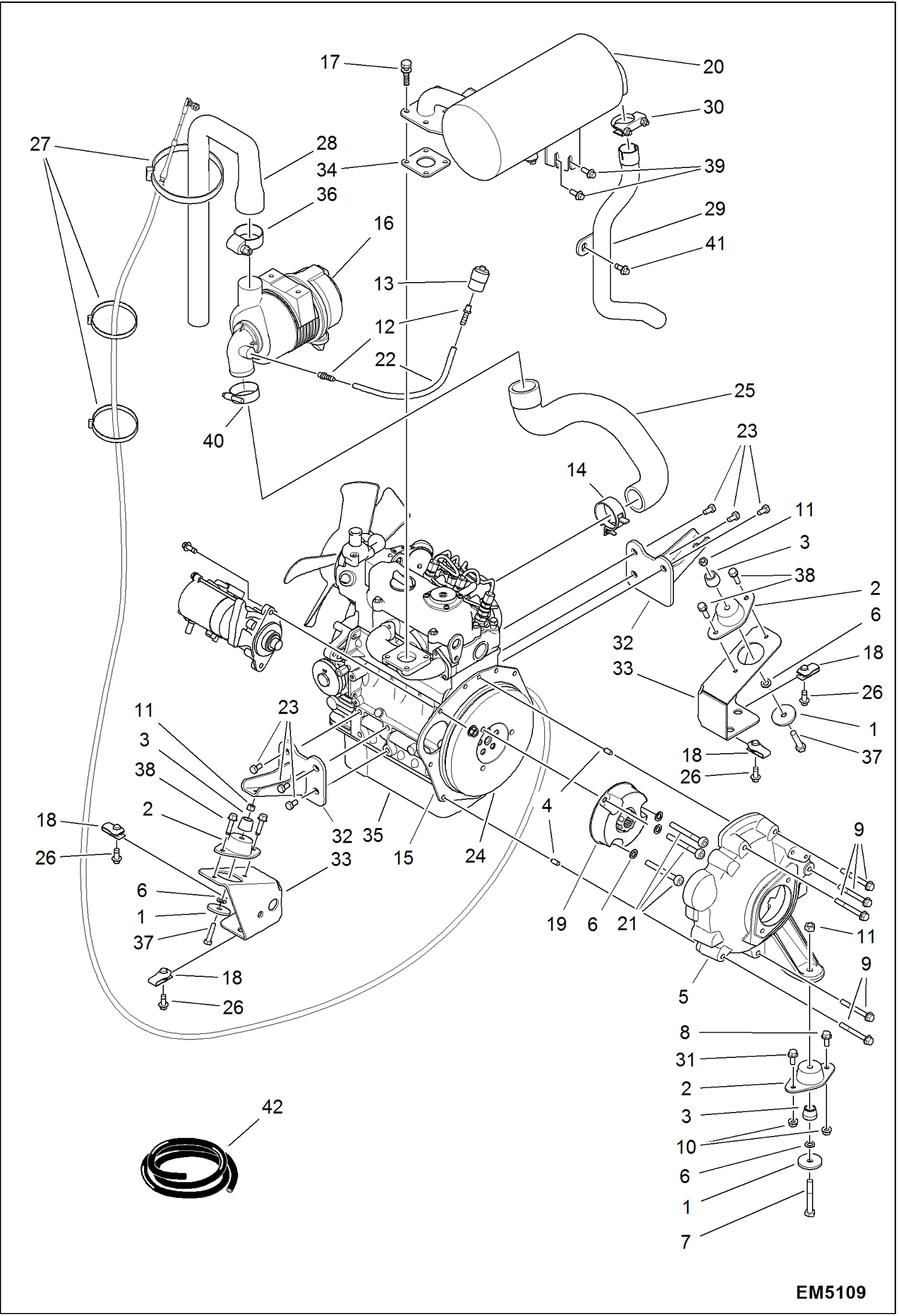

Схема запчастей Bobcat 319 - ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

Артикул

Название

Примечание

Количество

1

872229

WASHER

2

6653764

MOUNT

3

6804522

SPACER

4

7101341

PIN

5

MOUNT NLA - Order 7241709 - Was 7101653 - A

5

7241709

MOUNT Use W/Ref. 4 (7101341 Pin) & Ref. 46 (7241693 Pin, Roll, Heavy)

6

15EM100

WASHER

7

1CM1070

BOLT

8

29CM820

SCREW

9

29CM870

BOLT

10

51DM8

NUT

11

53DM10

NUT

12

6505813

CONNECTOR

13

6515007

GAUGE

14

5HM53

CLAMP Was 5HM00053B - D

15

6683017

PLATE REAR END

16

6675529

FILTER See Illustration AIR FILTER/ EM6360

17

4CM822

BOLT

18

6675722

NUT

19

6683843

COUPLER

20

6685916

MUFFLER

21

3GM1016

SCREW HEX SOCKT 12.9 Was 3GM01016B - D

22

HOSE NLA - 279 (11'') long - Order Ref. 42

23

6733378

SCREW

24

6693111

FLYWHEEL Was 6979771 - B

25

6806886

HOSE

26

29CM1025

BOLT

27

6624289

STRAP, TIE

28

6808932

HOSE

29

7103246

TUBE

30

7108173

CLAMP

31

29CM830

CAPSCREW Was 29CM825

32

7116317

MOUNT ASSY, ENGINE

33

7145890

SUPPORT Was 7116319 - A

34

6680583

GASKET MUFFLER Was 6575580 - A

35

6686978

ENG, D722 13.9 HP EPA T2 / EU STG II W/Ref. 15 & 24

36

42H32

HS CLAMP5

37

1CM1055

BOLT

38

26GM8016

SCREW

39

29CM816

SCREW

40

42HC250

CLAMP

41

29CM1020

BOLT

42

6557720

HOSE bulk - sold per foot

43

7101341

PIN

43

7241693

PIN, ROLL

44

6688372

STARTER See Illustration STARTER/ EM1856

45

29CM830

CAPSCREW

46

43DM8

NUT

Выбрано товаров: 48
