Запчасти Bobcat 319 FUEL AND INJECTION PUMP POWER UNIT

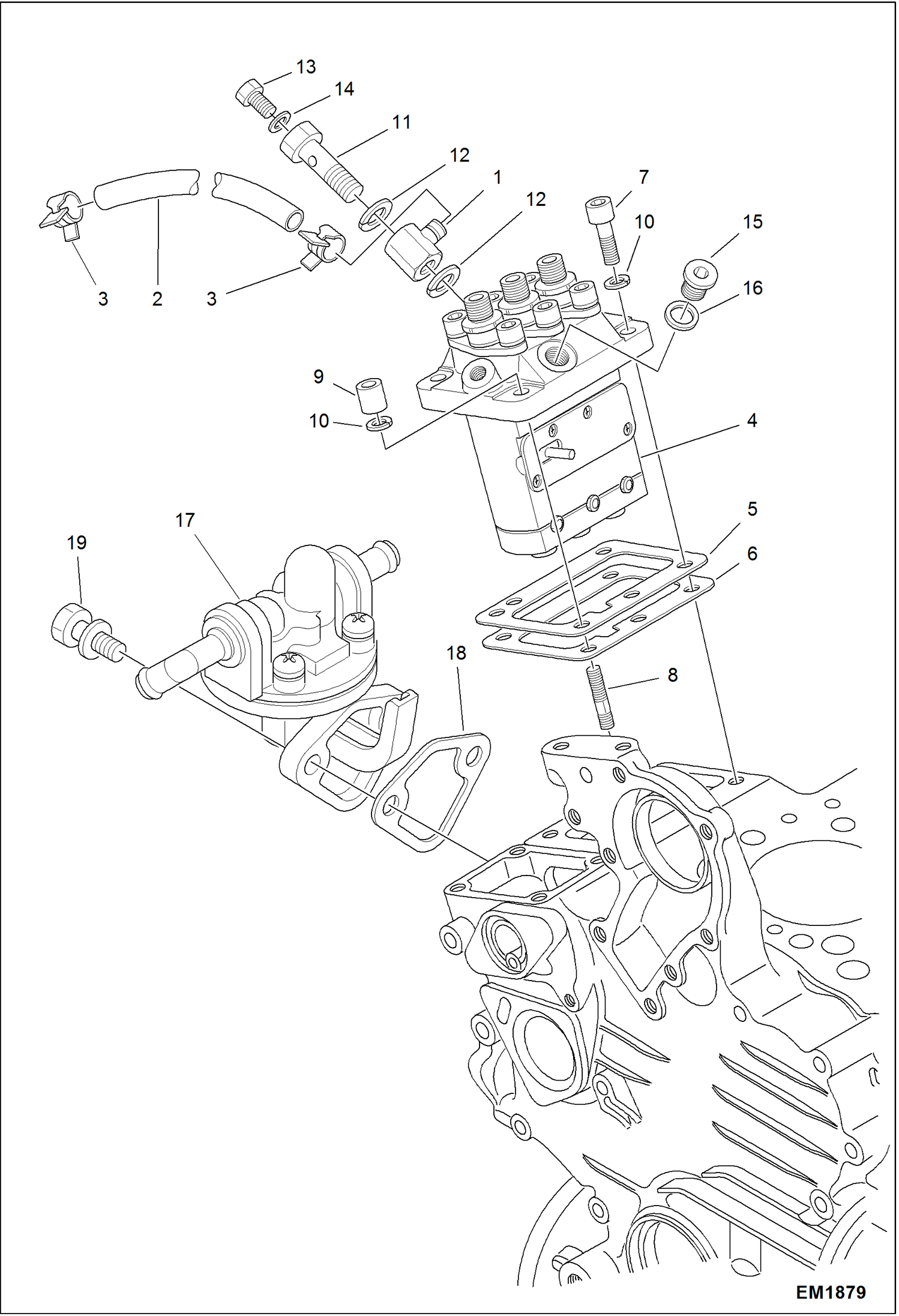

Схема запчастей Bobcat 319 - FUEL AND INJECTION PUMP POWER UNIT

Артикул

Название

Примечание

Количество

1

6670436

FITTING

2

6598694

HOSE

3

6680274

CLAMP

4

6670432

PUMP, FUEL INJ

5

6672390

SHIM 0,20 mm

5

6672391

SHIM 0,25 mm

6

6670777

SHIM

7

6670435

BOLT

8

6657458

STUD

9

6657461

NUT

10

6667419

WASHER

11

6670444

SCREW Was 6687665 - A

12

6657466

GASKET

13

6657445

SCREW

14

6657467

GASKET

15

6672396

PLUG

16

6670446

WASHER

17

6687727

PUMP

18

6670782

GASKET

19

1CM616

SCREW Was 4CM616 - A

Выбрано товаров: 20
