Запчасти Bobcat 319 SPEED CONTROL AND STOP LEVER POWER UNIT

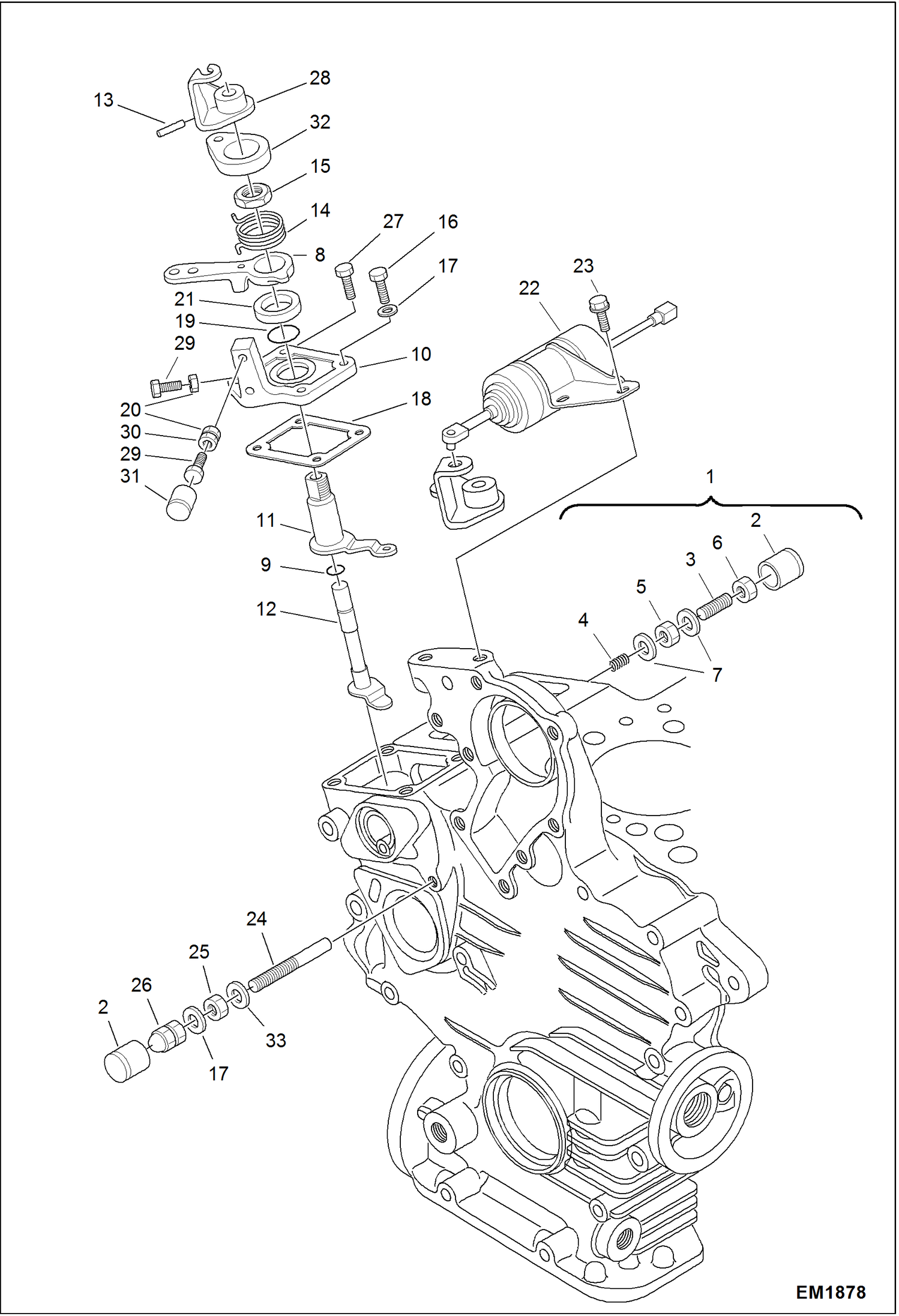

Схема запчастей Bobcat 319 - SPEED CONTROL AND STOP LEVER POWER UNIT

Артикул

Название

Примечание

Количество

1

6670424

IDLE ASSY W/Ref. 2-7

2

6670427

CAP, SECURITY

3

BOLT NLA - Order Ref. 1

4

SPRING NLA - Order Ref. 1

5

6599085

NUT Was 6680836 - A

6

6670426

NUT

7

3974095

MET-GASK

8

6687712

LEVER

9

3974280

O RING

10

6670456

COVER

11

6670455

LEVER ASSY

12

6670429

LEVER

13

6670431

PIN

14

6670780

SPRING

15

6687674

NUT

16

4CM618

BOLT Was 4CM00618B - D

17

3974972

GASKET

18

6670457

GASKET

19

6683021

SEAL

20

6969802

NUT

21

6687678

COLLAR

22

6670776

SOLENOID, SHUTOFF FUEL

23

29CM612

BOLT, FLANGED Was 6652762 - A

24

6670461

BOLT

25

6680272

NUT

26

6670462

NUT

27

6652580

BOLT

28

6698155

LEVER, ENGINE STOP Was 6670430 - B,D

29

6655228

STOPPER

30

6652712

STOPPER

31

CAP NLA

32

6670781

CAP

33

6687687

GASKET

Выбрано товаров: 33
