Запчасти Bobcat 319 WATER FLANGE AND THERMOSTAT POWER UNIT

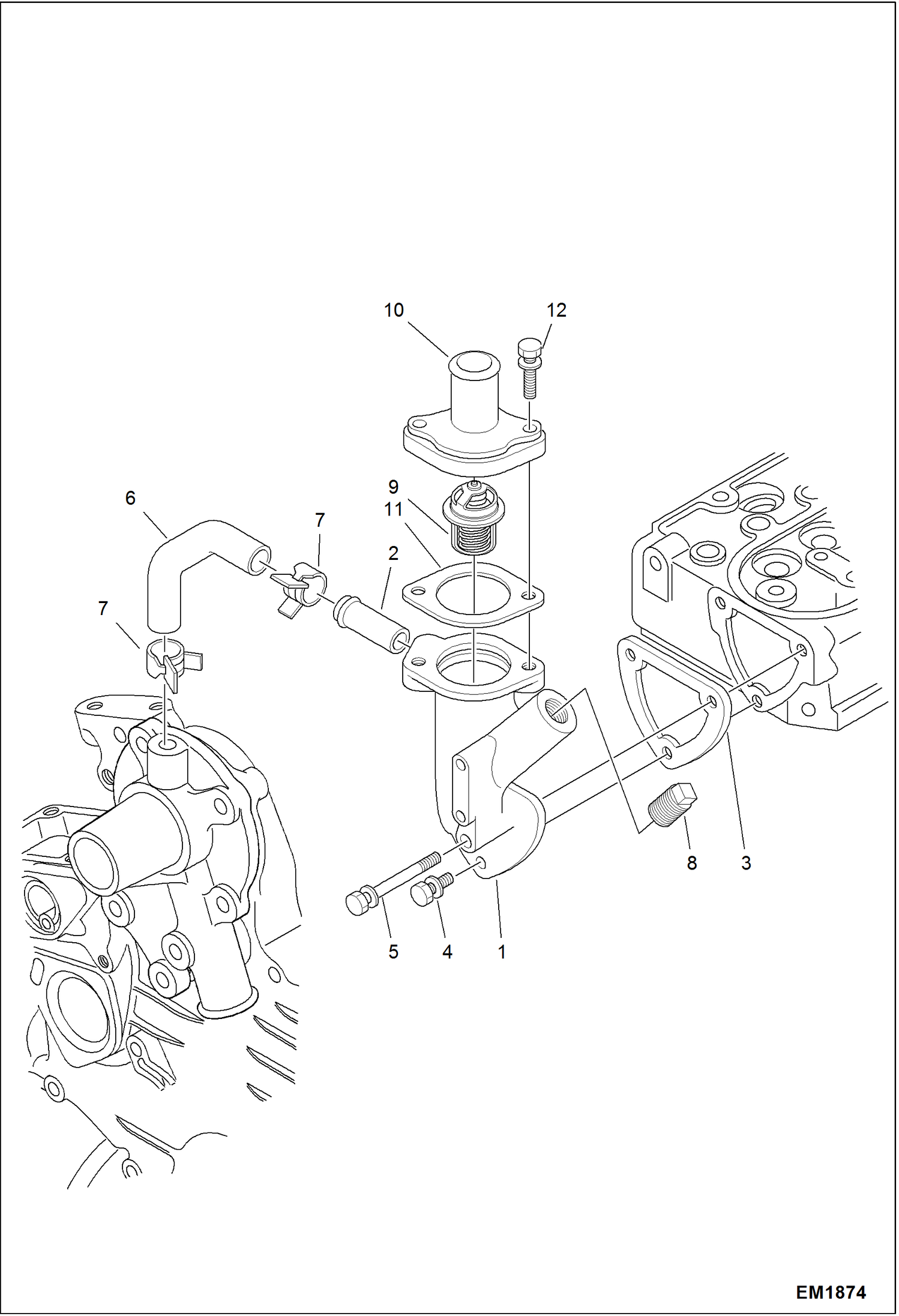

Схема запчастей Bobcat 319 - WATER FLANGE AND THERMOSTAT POWER UNIT

Артикул

Название

Примечание

Количество

1

6670499

FLANGE Was 6688080 - A

2

6670785

PIPE

3

6670500

GASKET

4

1CM616

SCREW Was 4CM616 - A

5

6670770

BOLT

6

6670502

HOSE

7

6680580

CLAMP

8

6684857

PLUG Was 6670504 - A

9

6652760

THERMOSTAT Was 6688081 - A

10

6688082

COVER

11

6681757

GASKET THERMOSTAT Was 6688083 - A

12

6653584

BOLT

Выбрано товаров: 12
