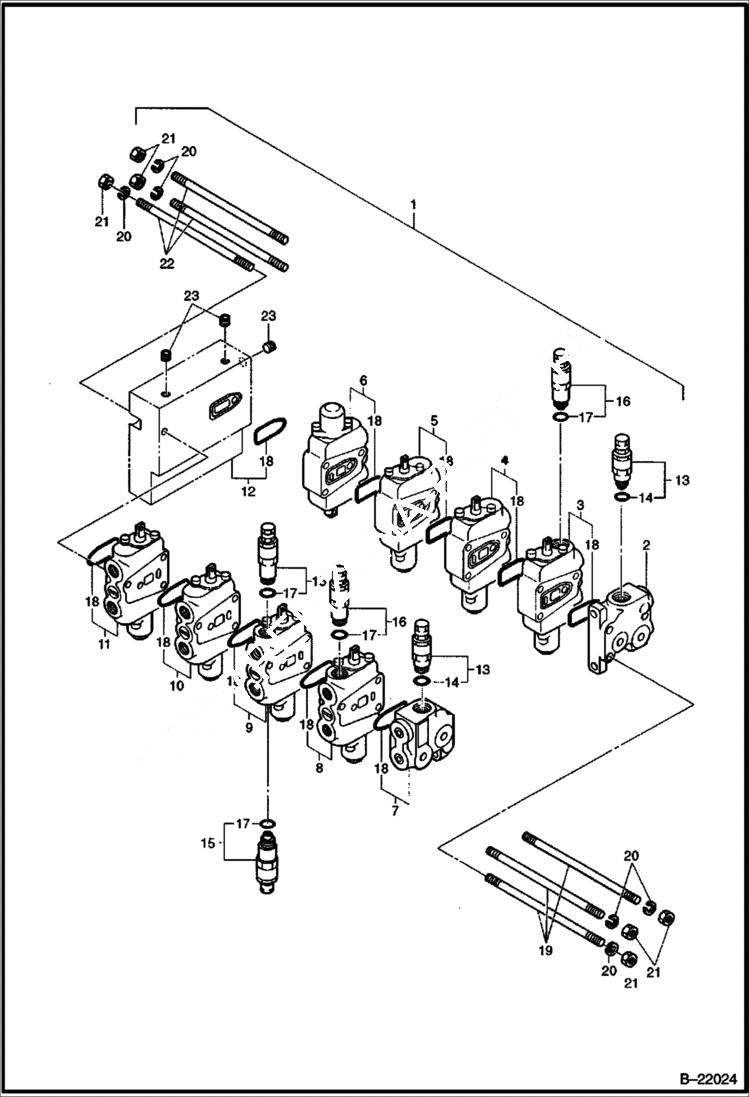

Запчасти Bobcat 316 CONTROL VALVE J/D Pattern ACCESSORIES & OPTIONS

1

SP22-00050

CONTROL VALVE assy - Ref. 2-22

2

SV3-005IC208

SECTION ASSY inlet

3

SV3-005-D450

BLOCK ASSY arm - W/Ref. 18

4

SV3-005-D387

BLOCK ASSY bucket - W/Ref. 18

5

SV3-005-H256

BLOCK ASSY travel - W/Ref. 18

6

SV3-005-D380

BLOCK ASSY W/Ref. 18

7

SV3-005-IC68

INLET SECTION W/Ref. 18

8

SV3-005-D386

BLOCK ASSY boom - W/Ref. 18

9

SV3-005-D385

BLOCK ASSY swing - W/Ref. 18

10

SV3-005-H256

BLOCK ASSY travel - W/Ref. 18

11

SV3-005-D378

BLOCK ASSY blade - W/Ref. 18

12

SV3-005-OC8

COVER ASSY end - W/Ref. 18

13

0LV5-003

VALVE ASSY relief - W/Ref. 14

14

C401-1AXP14

O-RING

15

0LV3F-001

VALVE ASSY relief - W/Ref. 17

16

0LV3C-001

VALVE ASSY relief - W/Ref. 17

17

C401-1AXP14

O-RING

18

C401-1A-G55

O-RING

19

SV3-15-141

TIE ROD

20

C142-M8

WASHER

21

C131-M8

NUT

22

SV3-15-134

TIE ROD

23

8

PLUG
