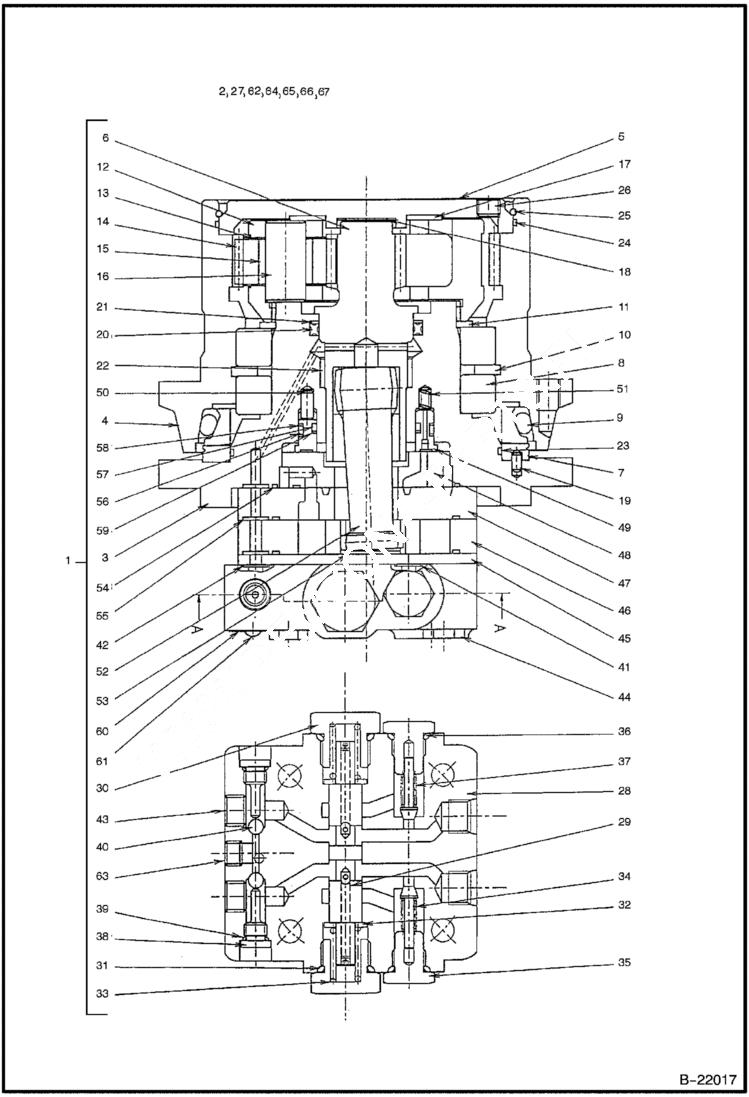

Запчасти Bobcat 316 TRAVEL MOTOR HYDROSTATIC/HYDRAULIC

1

NTS5-58000

MOTOR ASSY travel - Ref. 2-63

2

AL0120B

MOTOR ASSY reduce - Ref. 3-26

3

CASING NSS

4

WHEEL NSS

5

COVER NSS

6

SHAFT NSS

7

AK0049A

PLATE seal

8

BEARING NSS

9

AK0048A

SEAL floating

10

SNAP RING NSS

11

SNAP RING NSS

12

CARRIER NSS

13

SPACER NSS

14

GEAR NSS - idle

15

BEARING NSS - needle

16

PIN NSS

17

SPACER NSS

18

SPACER NSS

19

PIN NSS

20

X-RING NSS

21

RING NSS - backup

22

BUSHING NSS

23

O-RING NSS

24

O-RING NSS

25

C-RING NSS

26

A42041

PLUG

27

AK0059C

COVER ASSY end - Ref. 28-42, 62

28

END COVER NSS

29

SPOOL ASSY NSS

30

PLUG NSS

31

O-RING NSS

32

WASHER NSS

33

SPRING NSS

34

POPPET NSS

35

PLUG NSS

36

O-RING NSS

37

SPRING NSS

38

PLUG NSS

39

O-RING NSS

40

BALL NSS

41

O-RING NSS

42

O-RING NSS

43

A45019

PLUG

44

AK0031B-1

BOLT

45

AK0018B

PLATE spacer

46

AK0073C-10

PLATE

47

AK0015C

PLATE valve

48

AK0013C

VALVE

49

AK0016B

PLATE balancing

50

14351

PIN

51

7383

SPRING

52

8434S-2

DRIVE

53

6901S-20

SPACER

54

O-RING NSS

55

O-RING NSS

56

O-RING NSS

57

O-RING NSS

58

RING NSS - backup

59

RING NSS - backup

60

NAME PLATE NSS

61

RIVET NSS

62

CAP NSS - port

63

BJ0027A

PLUG

64

NTS5-58500

SEAL KIT Ref. 65-67

65

AK0056A

SEAL KIT Ref. 20, 21, 23 & 24

66

AK0069A

SEAL KIT Ref. 30, 36, 39, 41 & 42

67

AK0040A

SEAL KIT Ref. 54-59
