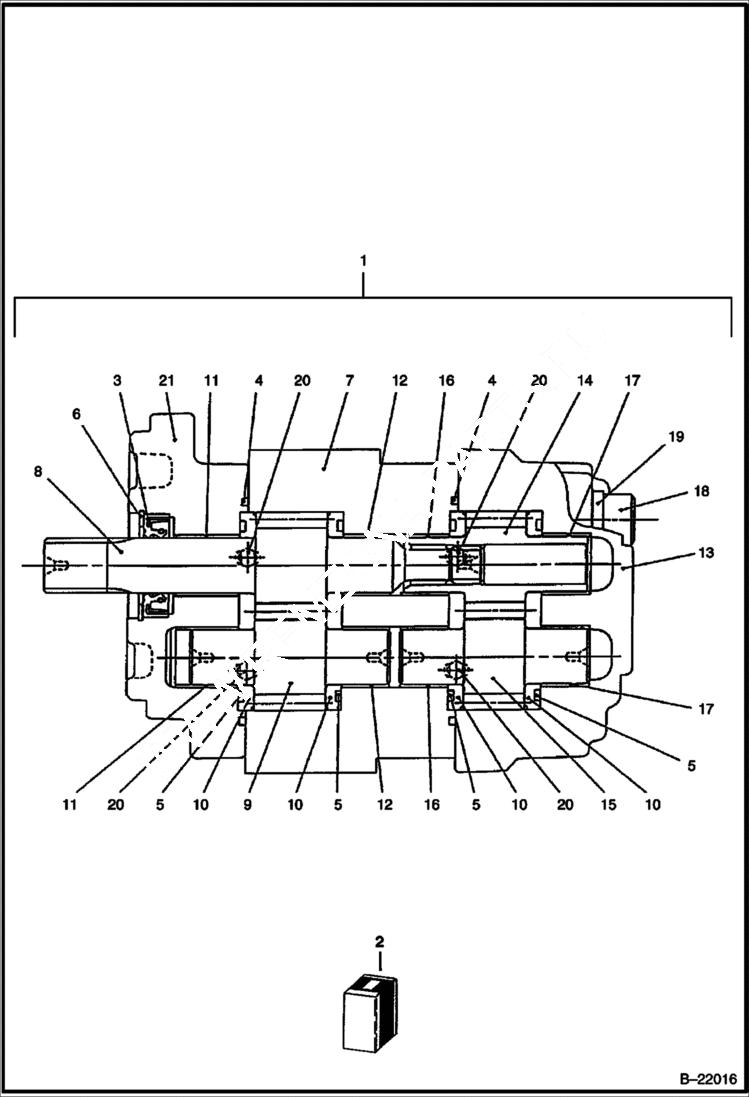

Запчасти Bobcat 316 PUMP HYDROSTATIC/HYDRAULIC

1

SP21-00015

PUMP ASSY Ref. 2-21

2

403-23228

SEAL KIT Ref. 3-6

3

400-00380-02

SEAL oil

4

402-65083-00

GASKET

5

402-12467-00

GASKET

6

026-63025-00

SNAP RING

7

BODY NSS

8

GEAR NSS - drive

9

GEAR NSS - drive

10

PLATE NSS - side

11

BUSHING NSS

12

BUSHING NSS

13

BODY NSS

14

GEAR NSS - drive

15

GEAR NSS - drive

16

BUSHING NSS

17

BUSHING NSS

18

BOLT NSS

19

WASHER NSS

20

BALL NSS

21

COVER NSS - front
