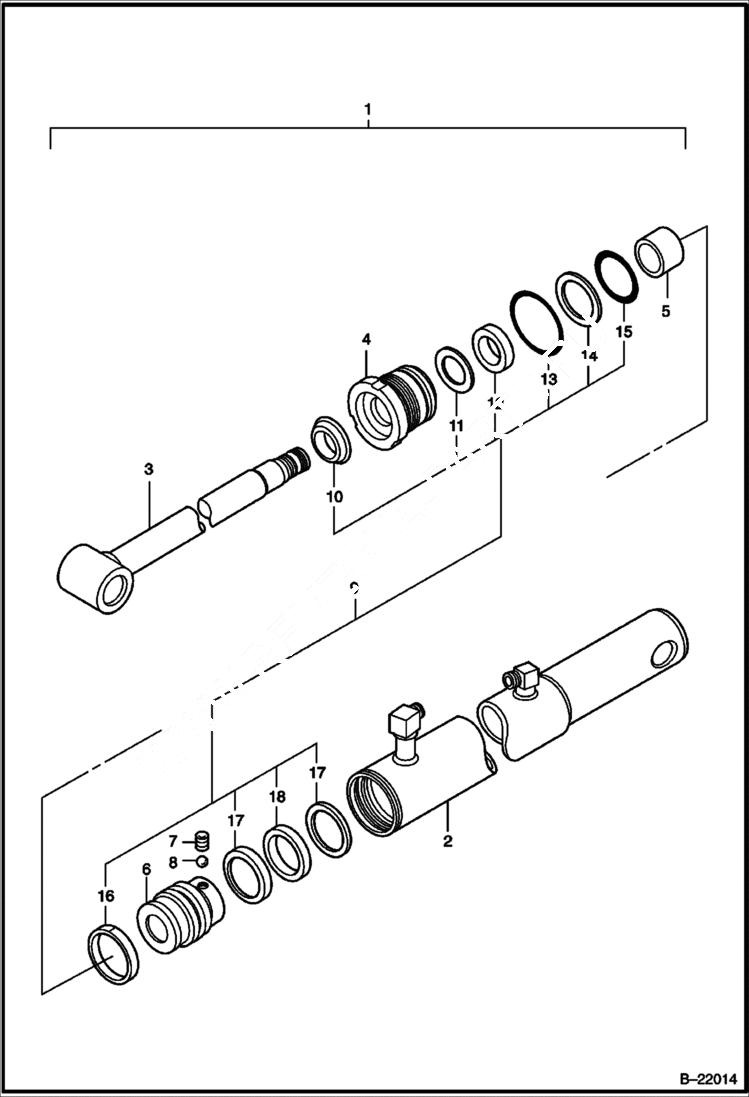

Запчасти Bobcat 316 EXTENSION CYLINDER HYDROSTATIC/HYDRAULIC

1

NTS5-63000

CYLINDER extension

2

60622-15101

CASE

3

60622-15102

ROD

4

60121-40100

HEAD

5

96401-25209

BUSHING

6

60221-40100

PISTON

7

91511-05050

SET SCREW

8

96321-03960

BALL

9

60629-15101

SEAL KIT Ref. 10-18

10

30191-25025

RING wiper

11

60461-02505

RING backup

12

30961-02512

U-RING

13

95151-04000

O-RING

14

95723-03500

RING backup

15

95122-03500

O-RING

16

60181-04001

RING wear

17

60461-32001

RING backup

18

60161-40011

SEAL
