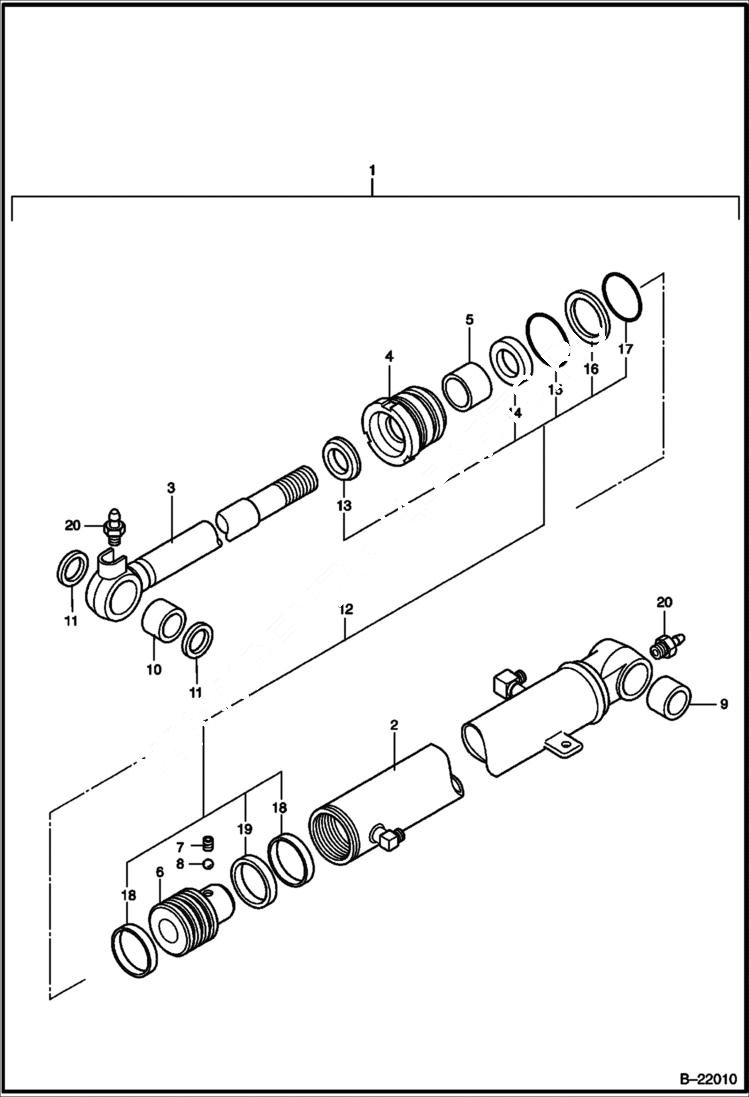

Запчасти Bobcat 316 ARM CYLINDER HYDROSTATIC/HYDRAULIC

1

NTS5-52000

CYLINDER arm

2

60622-14701

CASE

3

60622-14702

ROD

4

60121-50121

HEAD

5

30131-02503

BUSHING

6

60221-50111

PISTON

7

91511-06080

SET SCREW

8

96321-03960

BALL

9

60421-25235

BUSHING

10

60421-25330

BUSHING

11

60191-25006

SEAL dust

12

60629-14701

SEAL KIT Ref. 13-19

13

30191-25025

RING wiper

14

30961-02512

U-RING

15

95151-05000

O-RING

16

95723-04500

RING backup

17

95122-04500

O-RING

18

60231-50061

RING slide

19

30983-50001

SEAL RING

20

0540-02000-F

GREASE ZERK
