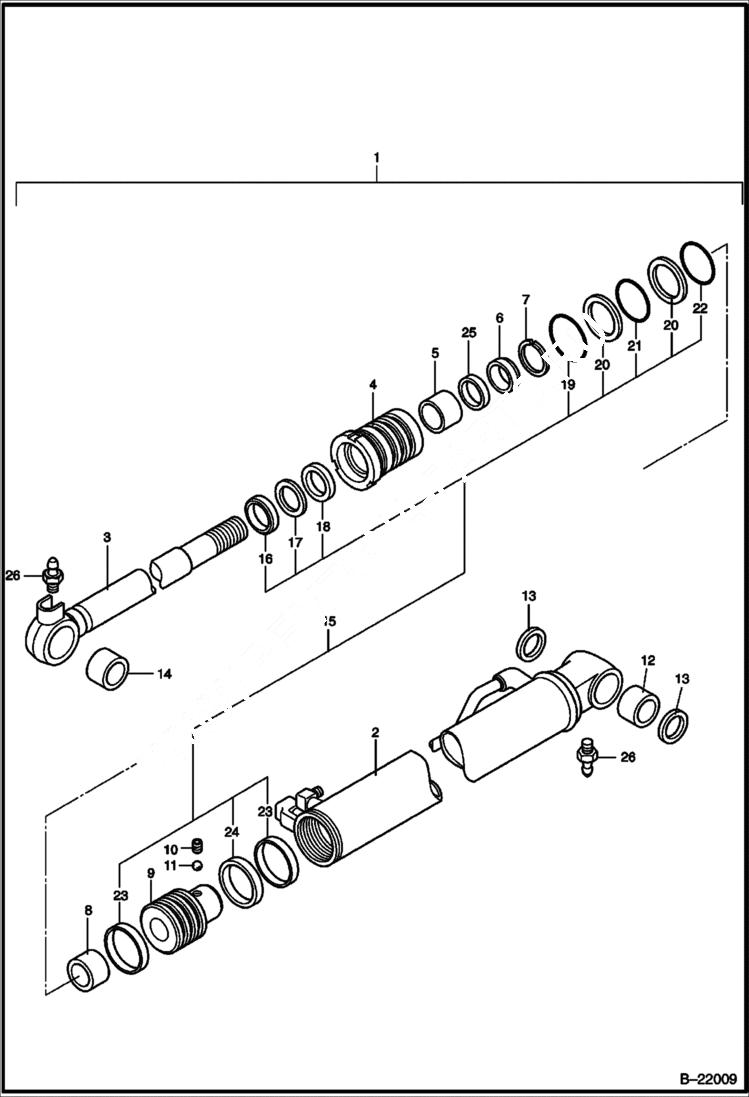

Запчасти Bobcat 316 BOOM CYLINDER HYDROSTATIC/HYDRAULIC

1

BOLT NSS - M6x14

1

NTS5-51000-1

CYLINDER boom

2

60642-21101

CASE

3

60642-21102

ROD

4

60121-50150

CYLINDER HEAD

5

30131-02503

BUSHING

6

60111-28001

SPACER

7

60331-32002

STOPPER

8

60551-28001

BEARING cushion

9

60221-50101

PISTON

10

91511-06080

SET SCREW

11

96321-03960

BALL

12

60421-25330

BUSHING

13

60191-25006

SEAL dust

14

60421-25235

BUSHING

15

60629-14601

SEAL KIT Ref. 16-24

16

30191-25025

RING wiper

17

60461-02505

RING backup

18

30961-02512

U-RING

19

95151-05000

O-RING

20

95723-04500

RING backup

21

95122-04500

O-RING

22

95123-04000

O-RING

23

60231-50061

RING slide

24

30983-50001

SEAL RING

25

60561-28004

RING cushion

26

0540-02000-F

GREASE ZERK
