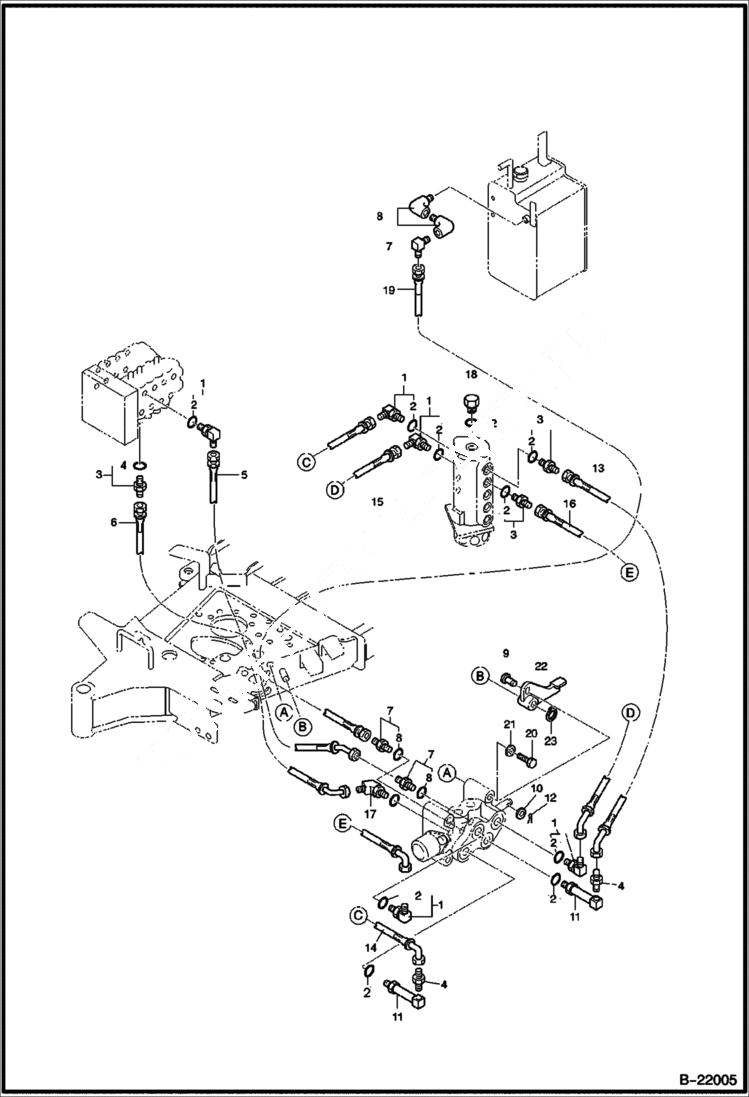

Запчасти Bobcat 316 HYDROSTATIC CIRCUITRY Upper Frame HYDROSTATIC/HYDRAULIC

1

0602-04004-X

ELBOW W/Ref. 2 - Was 0582-04004-X - A

2

0490-00011-B

O-RING

3

0600-04004-X

CONNECTOR W/Ref. 2

4

0580-04004-X

CONNECTOR

5

0783-04046-O

HOSE Was 0749-04046-O - A

6

0783-04050-O

HOSE Was 0749-04050-O - A

7

0562-04004-X

ELBOW

8

0569-04004-X

ELBOW

9

NTS4-30004

PIN clevis

10

0383-05000-A

WASHER

11

0603-04003-X

ELBOW

12

0420-02015-O

PIN split

13

0794-04036-O

HOSE

14

0794-04041-O

HOSE

15

0794-04034-O

HOSE Was 0794-04035-O - A

16

0794-04040-O

HOSE Was 0794-04038-O - A

17

0601-04004-X

ELBOW

18

0547-04000-0

PLUG Was 0547-04000-O - A

19

0794-04076-O

HOSE Was 0790-04063-O - A

20

0102-08050-A

BOLT M8x50

21

0389-08000-A

WASHER

22

NTS4-30200

LINK

23

0445-01200-O

SNAP RING
