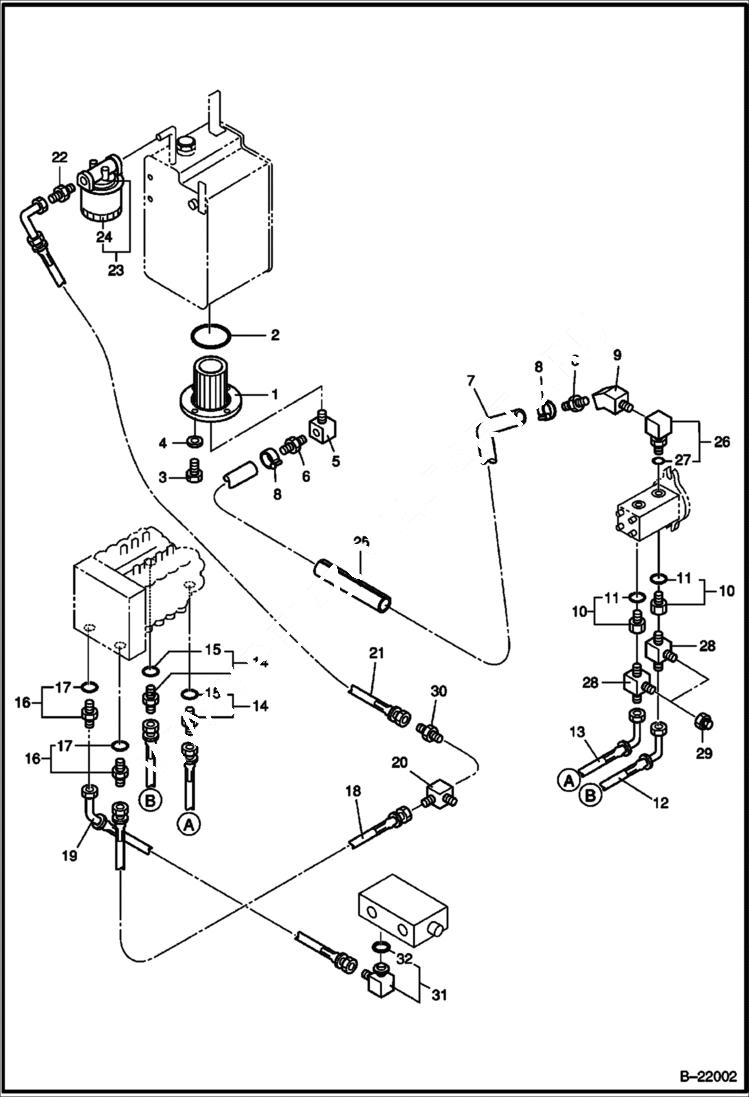

Запчасти Bobcat 316 HYDROSTATIC CIRCUITRY Upper Frame HYDROSTATIC/HYDRAULIC

1

NTS2-22001

FILTER suction

2

0491-00075-B

O-RING Was 0791-00075-B - A

3

0102-08020-A

BOLT M8x20

4

0389-08000-A

WASHER M8

5

0569-12012-X

ELBOW

6

0620-12000-B

CONNECTOR

7

0751-19055-O

CLAMP rubber - Was 0751-19800-O - A

8

0750-25035-0

CLAMP

9

0571-12012-H

ELBOW

10

0604-04004-O

BUSHING

11

6655250

O-RING Was 0490-00014-B - A

12

0794-04056-N

HOSE Was 0778-04060-N - A

13

0794-04048-N

HOSE Was 0778-04052-N - A

14

0600-04004-X

CONNECTOR W/Ref. 15

15

0490-00011-B

O-RING

16

0600-06006-X

CONNECTOR W/Ref. 16

17

6655250

O-RING Was 0490-00014-B - A

18

0790-06055-O

HOSE

19

0778-06050-N

HOSE Was 0778-06053-N - A

20

0570-06006-X

TEE

21

0794-08060-O

HOSE Was 0790-08055-O - A

22

0582-06008-X

CONNECTOR

23

12514-1003

FILTER ASSY

24

12514-1102

FILTER

25

HOSE GUARD

26

0605-12012-O

ELBOW W/Ref. 27

27

0490-00024-B

O-RING Was 0490-00014-B - A

28

0594-04004-X

TEE

29

0549-04000-X

PLUG female

30

0580-06008-X

CONNECTOR

31

0602-06006-X

ELBOW W/Ref. 32 - Was 0600-06006-X - A

32

6655250

O-RING Was 0490-00014-B - A
