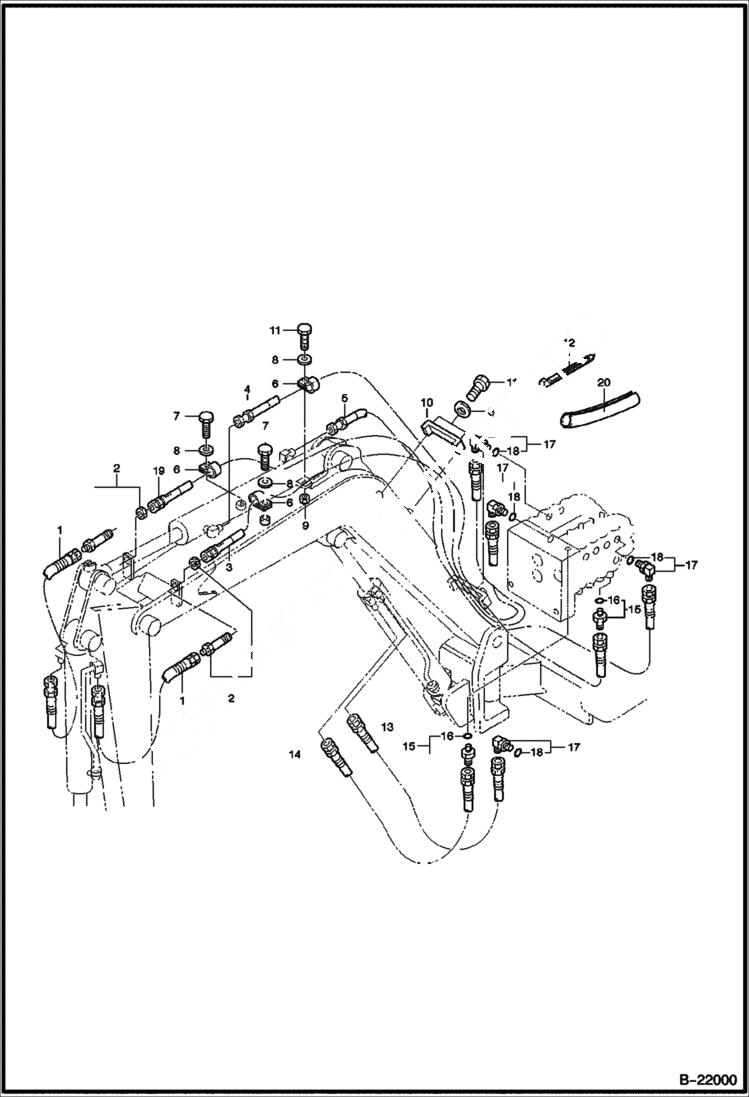

Запчасти Bobcat 316 HYDRAULIC CIRCUITRY Work Equipment HYDROSTATIC/HYDRAULIC

1

0783-04060-K

HOSE Was 0783-04060-L - A

2

0572-04004-O

CONNECTOR

3

0778-04225-N

HOSE Was 0783-04225-N - A

4

0778-04195-N

HOSE Was 0783-04195-N - A

5

0778-04165-N

HOSE Was 0783-04165-N - A

6

CLAMP NLA - hose - Was 1S-0994 - A

7

0102-08015-A

BOLT

8

0389-08000-A

WASHER

9

0251-08000-A

NUT

10

NTS5-10016-1

CLAMP Was NTS5-10016 - A

11

0102-08015-A

BOLT

11

0102-08015-A

BOLT Was 0102-08020-A - A

12

0805-78365-B

TIE STRAP

13

0778-04144-N

HOSE

14

0778-04134-N

HOSE

15

0600-04004-X

CONNECTOR W/Ref. 16

16

0490-00011-B

O-RING

17

0600-04004-X

CONNECTOR W/Ref. 18

18

0490-00011-B

O-RING

19

0778-04220-N

HOSE Was 0783-04220-N - A

20

0758-45025-O

GUARD hose
