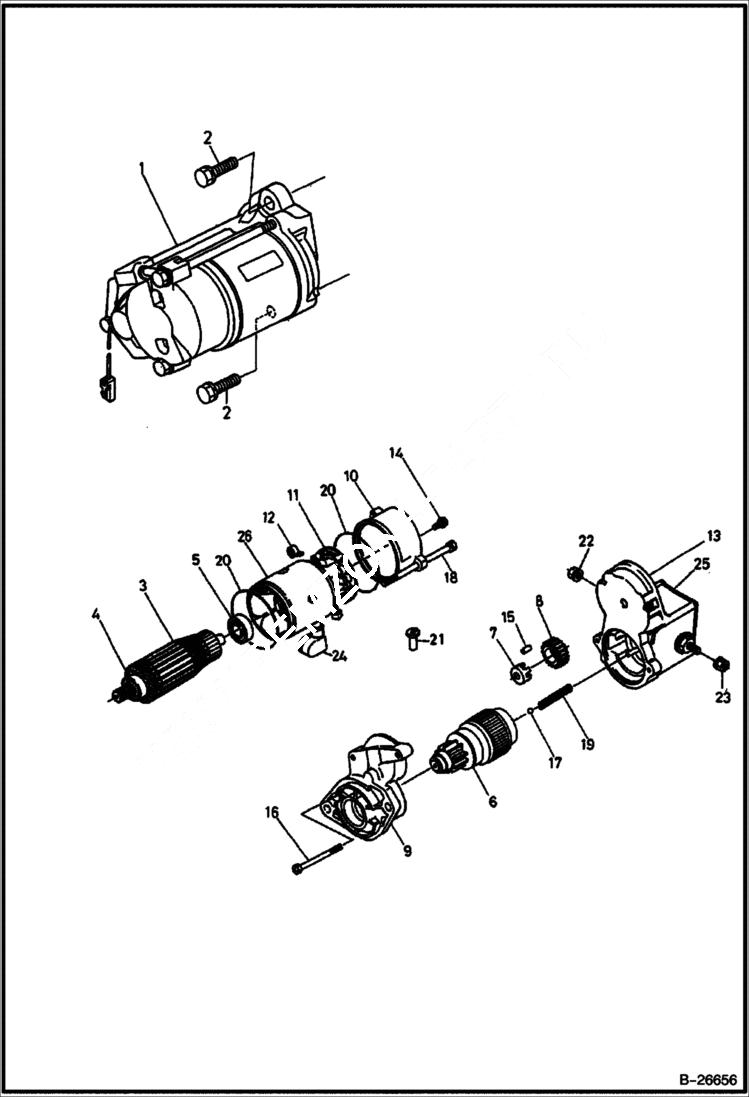

Запчасти Bobcat 316 STARTER POWER UNIT

1

6693080

STARTER

2

1CM825

BOLT Was 4CM825 - A

3

6693082

ARMATURE

4

6662326

BEARING

5

6683289

BEARING

6

6693083

CLUTCH

7

6662334

RETAINER

8

6662333

GEAR

9

6693113

HOUSING

10

6693114

FRAME

11

HOLDER

12

6693084

SPRING

13

6693208

SWITCH

14

6693085

BOLT

15

6689408

BOLT

16

6662336

BOLT

17

3390093

BALL Was 6689499 - A

18

6683077

BOLT THROUGH

19

6662335

SPRING

20

3390007

O-RING Was 6689443 - A

21

6662337

DRAIN

22

3390097

NUT Was 6689417 - A

23

6683153

NUT

24

6683290

COVER, TERMINAL

25

6693086

COVER
