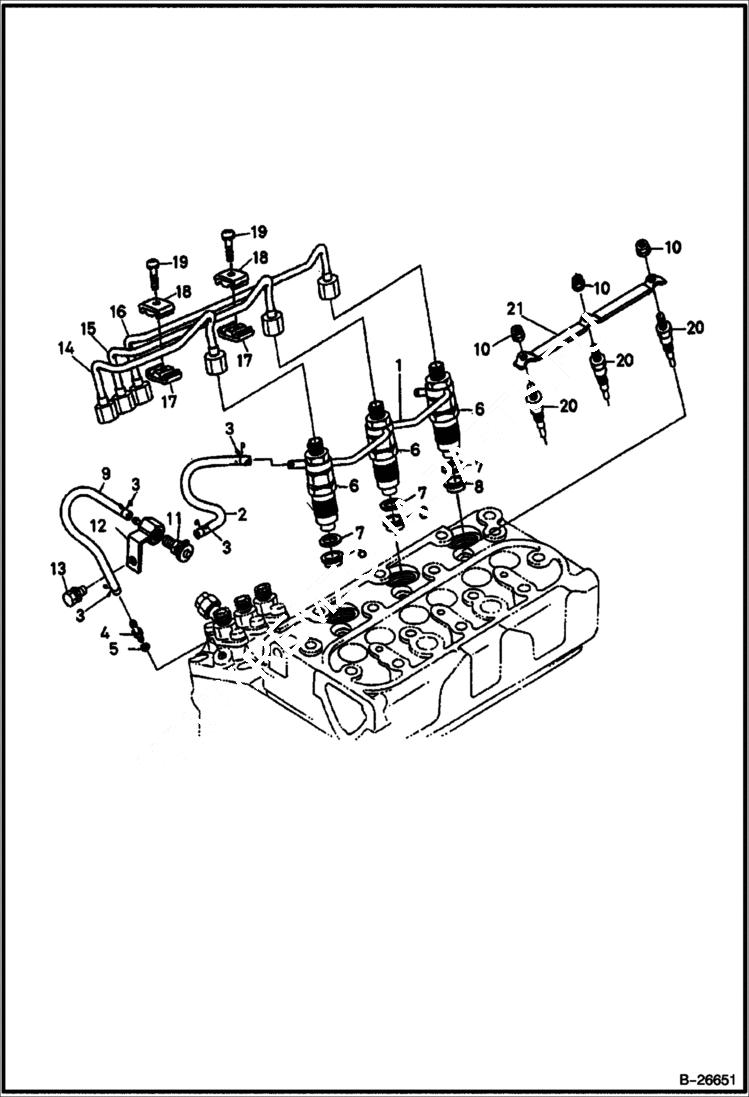

Запчасти Bobcat 316 INJECTOR NOZZLES Kubota D722 POWER UNIT

1

6670463

PIPE Injector Return Line

2

6685635

TUBE Overflow - W/Ref. 3

3

6654718

CLAMP pipe - Was 6680795 - A

4

6657446

SCREW

5

3974972

GASKET

6

NOZZLE HOLDER NLA - Order 7012004, nozzle holder and 6657460, nut - Was 6670465 - A

7

6655218

GASKET See Illustration UPPER GASKET KIT/ B16471 Included W/upper gasket kit

8

6655872

HEAT SEAL See Illustration LOWER GASKET KIT/ B16470 W/Lower gasket seal

9

6693056

TUBE

10

6670472

NUT

11

6598102

VALVE jet start

12

6693057

HOLDER

13

6657415

BOLT

14

6670467

PIPE

15

6670468

PIPE

16

6670469

PIPE

17

6652688

CLAMP

18

6652689

CLAMP

19

3974260

SCREW

20

6670470

GLOW PLUG

21

6670471

WIRE
