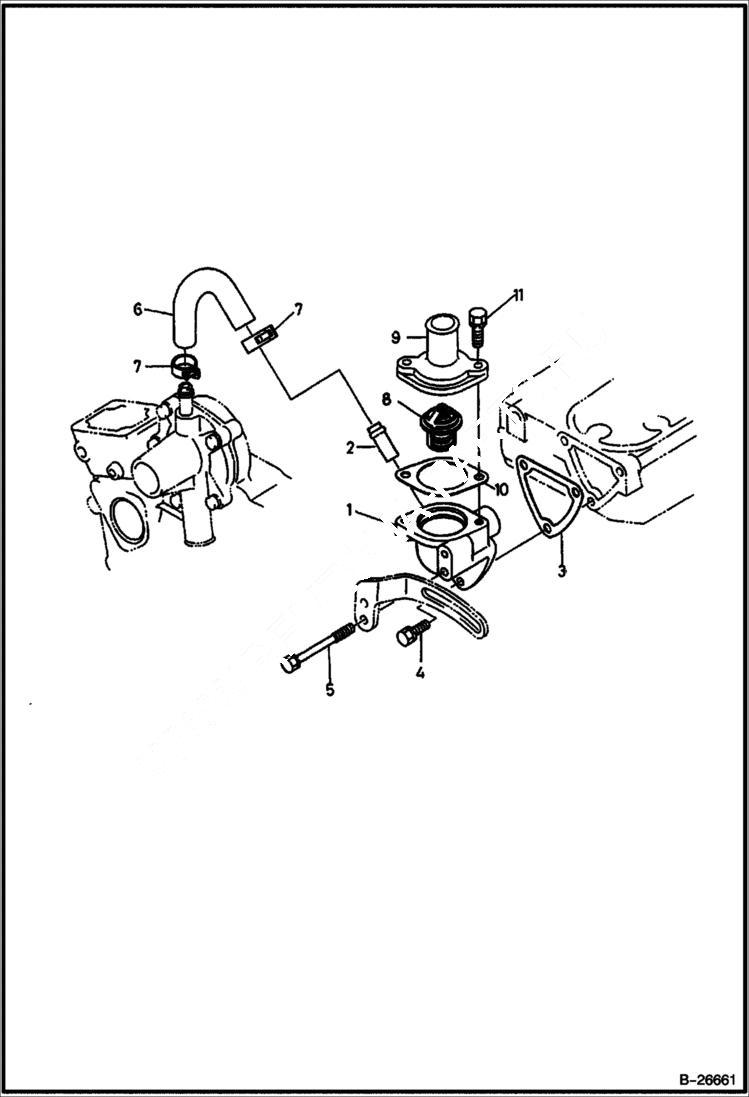

Запчасти Bobcat 316 WATER FLANGE & THERMOSTAT Kubota D722 POWER UNIT

1

6693209

FLANGE

2

6670785

PIPE press fit

3

6670500

GASKET See Illustration UPPER GASKET KIT/ B16471 Included W/Upper gasket kit

4

1CM616

SCREW Was 4CM616 - A

5

6693087

BOLT

6

6693088

PIPE

7

6680580

CLAMP Was 6652748 - A

8

6599036

THERMOSTAT

9

6688082

COVER Was 6670503 - A

10

6688083

GASKET

11

6653584

BOLT
