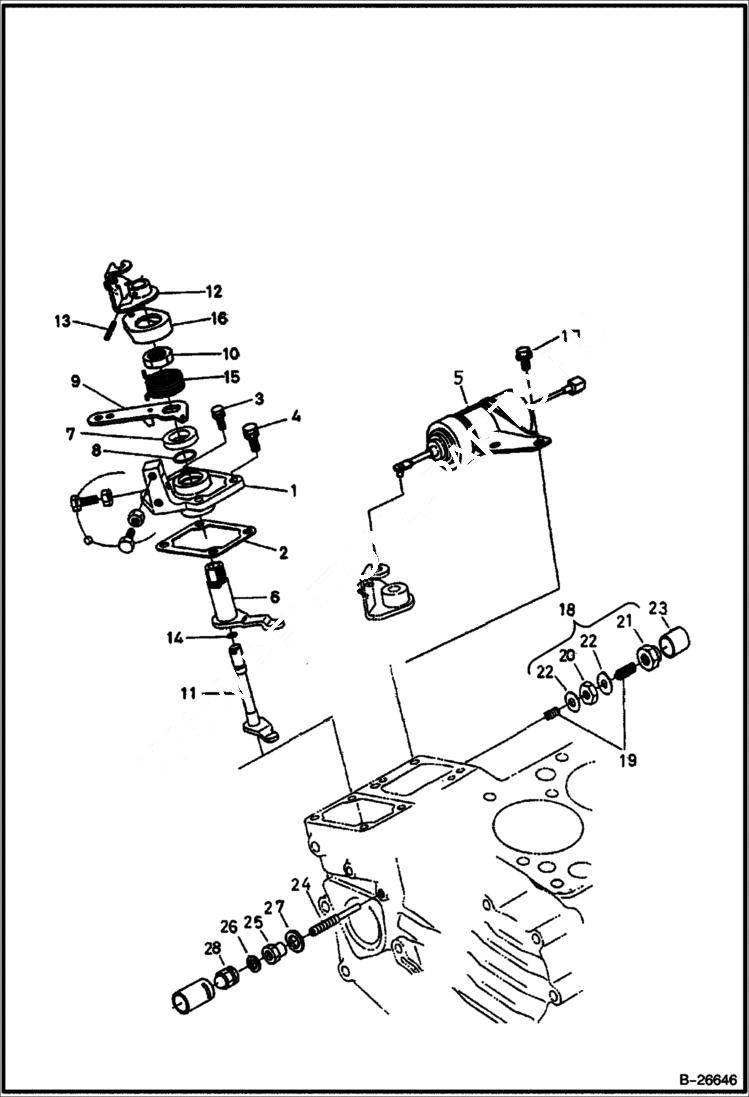

Запчасти Bobcat 316 SPEED CONTROL & STOP LEVER Kubota D722 POWER UNIT

1

6670456

COVER

2

6670457

GASKET See Illustration LOWER GASKET KIT/ B16470 Included W/lower gasket kit

3

6652580

BOLT

4

6693055

BOLT

5

6670776

SOLENOID, SHUTOFF FUEL

6

6670455

LEVER ASSY

7

6687678

COLLAR

8

6683021

SEAL See Illustration LOWER GASKET KIT/ B16470 Included W/lower gasket kit

9

6687712

LEVER

10

6687674

NUT

11

6693112

LEVER

12

6698155

LEVER, ENGINE STOP Was 6670430 - B,D

13

6670431

PIN

14

6683023

O-RING See Illustration LOWER GASKET KIT/ B16470 Included W/lower gasket kit

15

6670780

SPRING

16

6670781

CAP

17

29CM612

BOLT, FLANGED Was 6652762 - A

18

6670424

IDLE ASSY Ref. 2-7

19

6670425

SCREW

20

6680836

NUT

21

6670426

NUT

22

3974095

MET-GASK copper - Was 6680792 - A

23

6670427

CAP, SECURITY

24

6670461

BOLT

25

6680272

NUT

26

3974972

GASKET

27

6687687

GASKET

28

6670462

NUT
