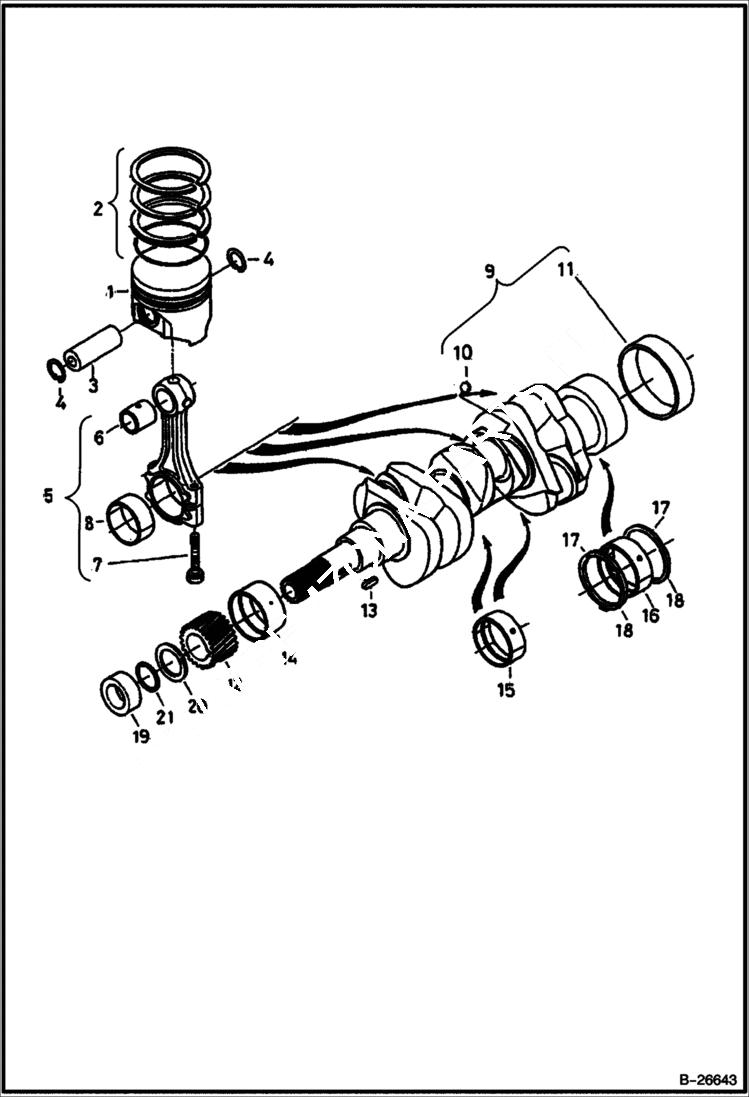

Запчасти Bobcat 316 PISTON & CRANKSHAFT Kubota D722 POWER UNIT

1

7000376

PISTON, ENG std. - piston only - (16851-2111) - Was 6670393 - A

1

6670394

PISTON .010 in. (0.25 mm Oversize) - Only Piston

2

6670395

RING ASSY Piston, Std. - for 1 piston - Was 6693109 - A

2

6670396

RING ASSY Piston (.010 in.-0.25 mm Oversize) - For 1 Piston

3

6670397

PIN

4

3974216

RING

5

6690166

ROD, CONNECTING W/Ref. 6-9

6

6670399

BUSHING 1 - bushing only

7

6670400

BOLT

8

6670401

BEARING Rod, Std. - 1 Bearing

8

6670402

BEARING Rod (.079 in. - 0.2 mm) - 1 Bearing

8

6670403

BEARING Rod (.0157 in. - 0.4 mm) - 1 Bearing

9

6670404

CRANKSHAFT W/Ref. 11 & 12 - 1 bearing

10

6683013

BALL

11

3986830

SLEEVE

12

6670405

GEAR

13

3974226

KEY

14

6670406

BEARING Main, Std. -1 Bearing

14

6670407

BEARING Main (-0.2 mm) - 1 Bearing

14

6670408

BEARING Main (-0.4 mm) - 1 Bearing

15

6670409

BEARING Main, Std. - 1 Bearing

15

6670410

BEARING Main (-0.2 mm) - 1 Bearing

15

6670411

BEARING Main (-0.4 mm) - 1 Bearing

16

7023260

BEARING, ENG CRANKSHAFT std - rear - (1) bearing - Was 6670412 - A

16

6660336

BEARING Main (-0,2mm) - 1 Bearing

16

6660337

BEARING Main (-0,4mm) - 1 Bearing

17

6652636

WASHER Thrust, Std. - 1/2 thrust washer

17

6513613

WASHER Thrust (+0.2 mm) - 1/2 thrust washer

17

6513615

WASHER Thrust (+0.4 mm) - 1/2 thrust washer

18

7000492

WASHER, THRUST SIDE Std - 1/2 thrust washer - Was 6652637 - A

18

6698149

WASHER, THRUST SIDE thrust - (+0.2 mm) 1/2 thrust washer - Was 6513614 - A

18

6513616

WASHER Thrust (+0.4 mm) - 1/2 thrust washer

19

6670413

COLLAR

20

6670414

OIL SLINGER

21

6683014

SEAL See Illustration LOWER GASKET KIT/ B16470 Included W/lower gasket kit
