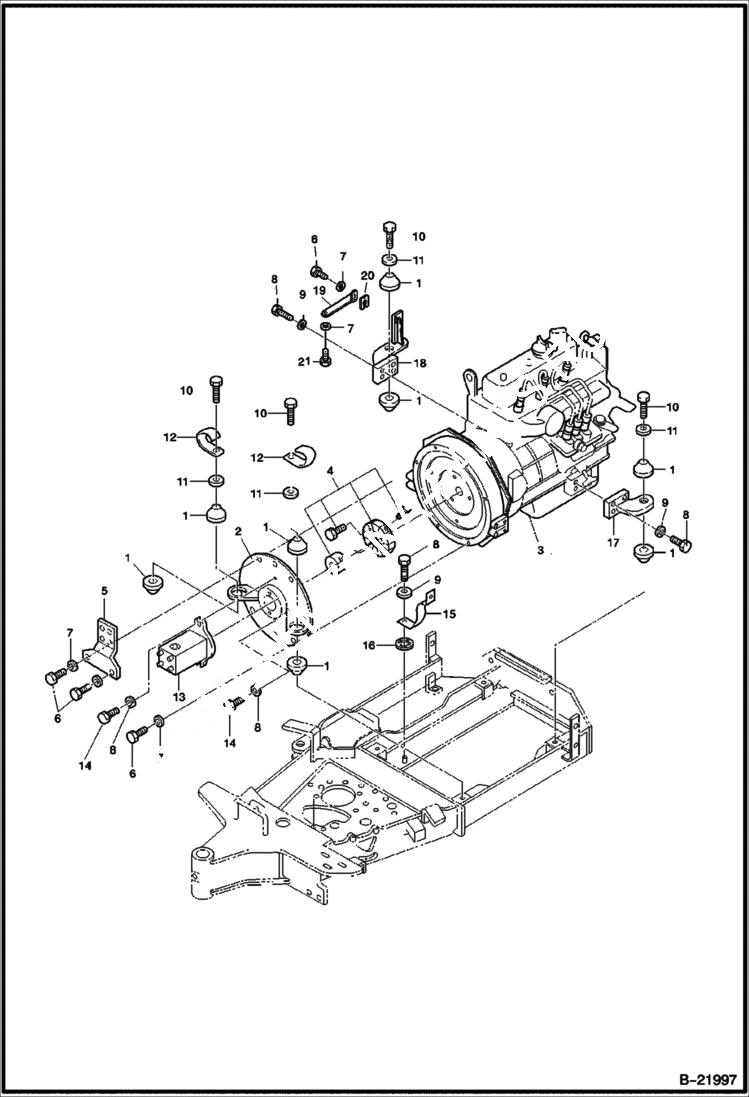

Запчасти Bobcat 316 ENGINE & ATTACHING PARTS Engine Mounts ESA 522911 - NA 522811 POWER UNIT

1

NTS8-10003

MOUNT rubber

2

NTS8-30100-2

MOUNT pump

3

S042-00211

ENGINE ASSY Was NTS8-40000 - A

3

S042-00211

ENGINE ASSY Tier II

4

SP17-00006

COUPLING

5

NTS8-10009-4

BRACKET

6

0102-08020-A

BOLT M8x20

7

0389-08000-A

WASHER M8

8

0126-10020-A

BOLT M10x20

9

0389-10000-A

WASHER M10

10

0103-12100-A

BOLT M12x100 - Was 0211-12100-A - A

11

MBU4-12102

WASHER

12

7031612

PLATE, DEPPING Was 942-00004 - A

13

PUMP See Illustration PUMP/ B22016

14

0103-10025-A

BOLT M10x30

15

905-00140

STRAP grounding

16

0388-10000-A

WASHER

17

NTS8-10100-2

BRACKET

18

NTS8-10900-B

SUPPORT muffler

19

NTS8-10910-A

BRACKET

20

NTS8-10903

SPACER t 0.5

20

NTS8-10904

SPACER t 1.0

21

0102-08010-A

BOLT M8x10
