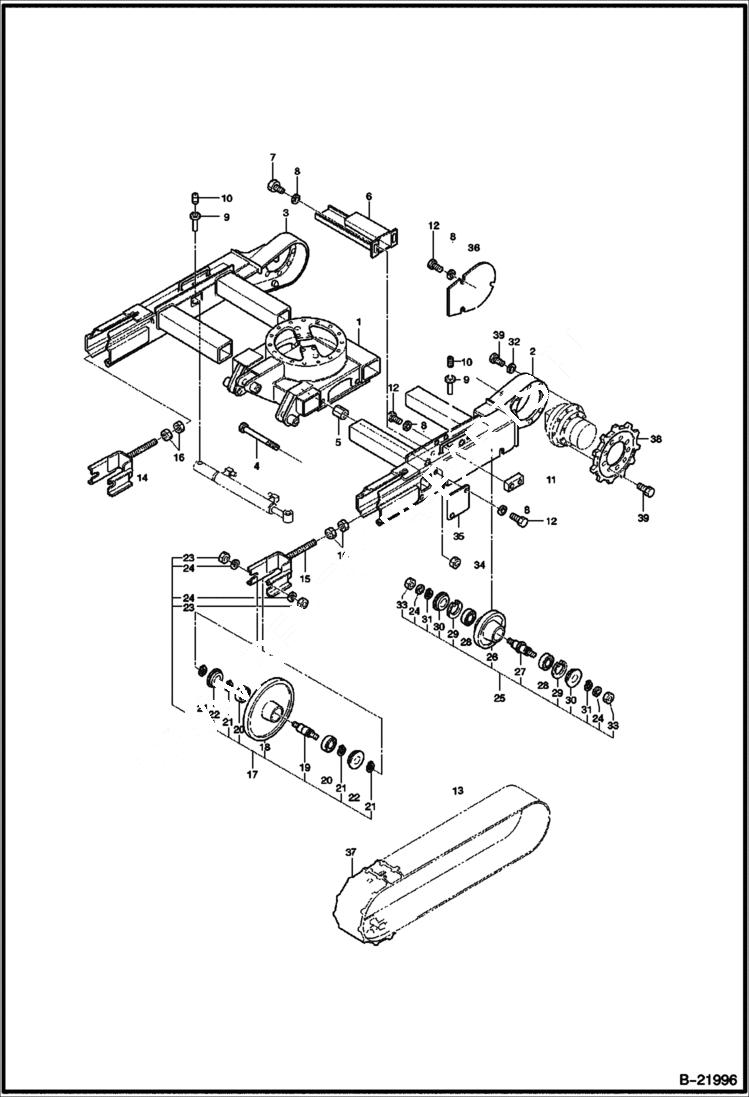

Запчасти Bobcat 316 TRACK FRAME UNDERCARRIAGE

1

NTS1-30000-1

FRAME center

2

NTS1-10000-2

FRAME track - Was NTS1-10000-1 - A

3

NTS1-20000-2

FRAME track - Was NTS1-20000-1 - A

4

NTS1-00013

BOLT stopper

5

NTS1-00014

NUT

6

NTS1-00018

COVER cylinder

7

0102-08015

BOLT M8x15

8

0389-08000-A

WASHER M8

9

NTS1-00009

PIN

10

0340-08010-C

SCREW

11

NTS1-00010

PLATE

12

0102-08015-A

BOLT

13

CRAWLER NLA - rubber - option - was never offered - Was S032-00125 - A

14

NTS1-01900-1

FORK IDLER Left - Was NTS1-01900-B - A

15

NTS1-02000-1

FORK IDLER Right - Was NTS1-02000-B - A

16

0311-20000-A

NUT M20

17

NTS1-60000

IDLER ASSY front - W/Ref. 18-24

18

NTS1-60001

IDLER front

19

NTS1-60002

SHAFT idler

20

0460-62025-O

BEARING ball

21

0455-02500-O

SNAP RING

22

NTS1-60003

OIL SEAL

23

0251-16000-A

NUT M16

24

0389-16000-A

WASHER M16

25

NTS1-50000

ROLLER ASSY truck - W/Ref. 26-31

26

NTS1-50001

TRUCK ROLLER

27

NTS1-50002

SHAFT truck roller

28

0460-62025-O

BEARING ball

29

0446-05200-O

SNAP RING

30

810050001

OIL SEAL

31

0455-02500-O

SNAP RING

32

0389-10000-A

WASHER M10

33

0275-16000-A

NUT

34

0311-10000-A

NUT

35

NTS1-00015

COVER

36

NTS1-00016-1

COVER case

37

NTS1-91000

TRACKS rubber

38

NTS1-00023

SPROCKET

39

0160-10025-A

BOLT M10x25
