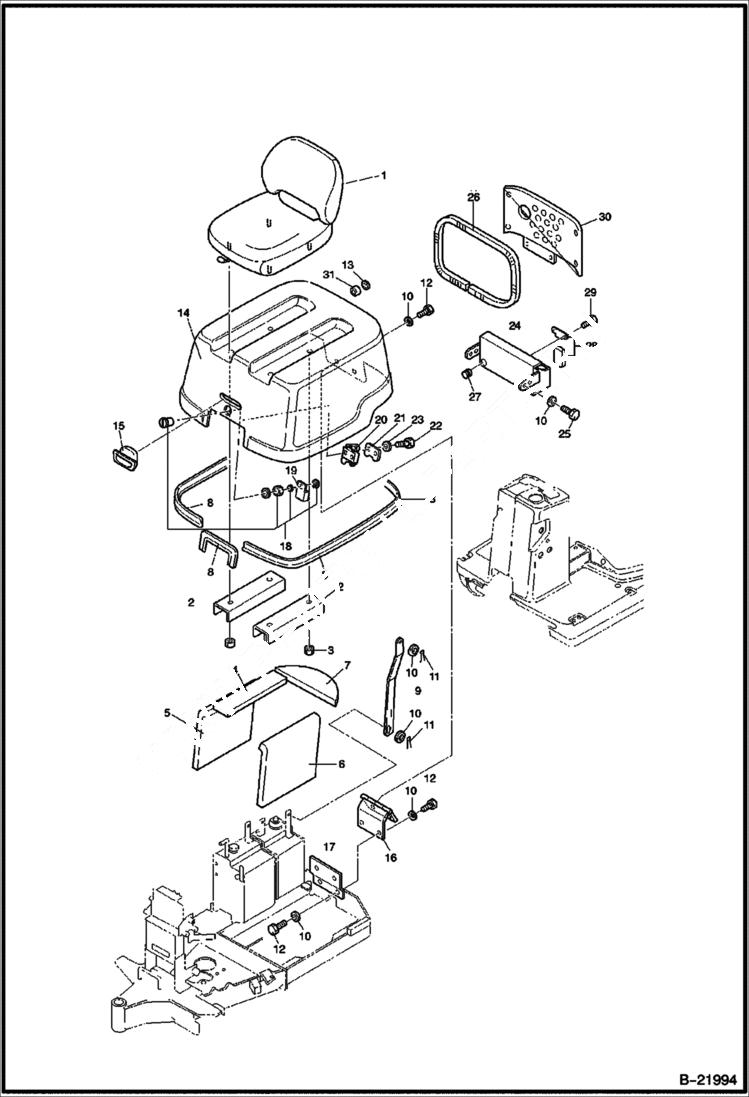

Запчасти Bobcat 316 ENGINE COVER MAIN FRAME

1

SP66-00007

SEAT Was NK27-80013 - A

1

6817076

SEAT BELT

2

NTS2-60001

PLATE

3

0311-08000-A

NUT

4

NTS2-60051

INSULATION

5

NTS2-60052-1

INSULATION

6

NTS2-60053-1

INSULATION

7

NTS2-60055

INSULATION

8

0813-07300-0

RUBBER, TRIM Was 0813-07300-O - A

9

NTS2-60036-1

SUPPORT

10

0389-08000-A

WASHER

11

0421-08034-O

PIN snap

12

0102-08030-A

BOLT

13

0387-08000-A

WASHER M8

14

NTS2-60400-B

COVER engine - W/Ref. 30

15

121-3587

HANDLE

16

NTS2-63800

HINGE

17

NTS2-60028

PLATE

18

41301-01630

CYLINDER Use ignition key

18

41307-00007

IGNITION KEY

19

NTS2-60412-A

PLATE

20

NTS2-60413-0

LOCK

21

NTS2-60411-0

PLATE

22

0102-06025-A

BOLT M6x25

23

0389-06000-A

WASHER

24

NTS2-61000-0

TOOL BOX

25

0102-08020-A

BOLT

26

0813-08108-0

RUBBER TRIM 1080C

27

0814-12000-A

BUSHING rubber

28

NTS2-61007-0

CLIP catch

29

0331-04010-A

SCREW M4x10

30

NTS2-60500-B

PLATE

31

0251-08000-A

NUT M8
