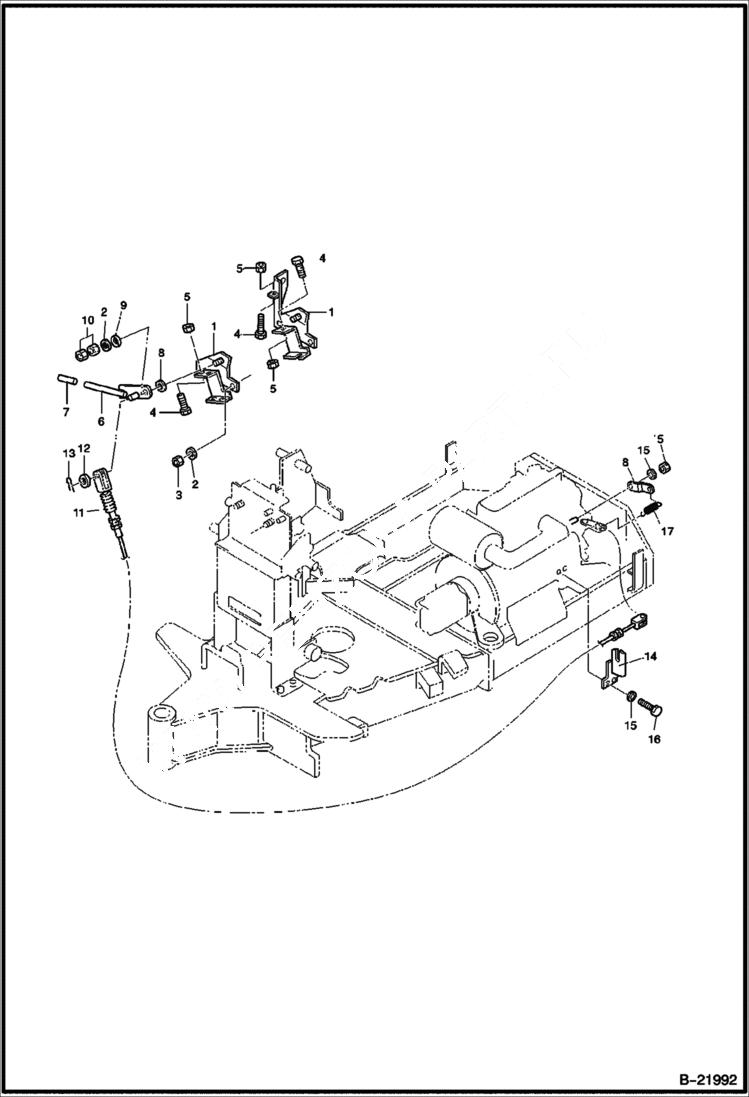

Запчасти Bobcat 316 CONTROL SYSTEM Throttle MAIN FRAME

1

NTS4-20100-2

BRACKET

1

S042-00286

BRACKET accelerator lever

2

0389-08000-A

WASHER M8

3

0311-08000-A

NUT M8

4

0102-06025-A

BOLT M6x25

4

0102-06025-A

BOLT M6x25

5

0311-06000-A

NUT M6

5

0311-06000-A

NUT M6

6

NTS4-20400-1

LEVER throttle

7

NTS4-20002

GRIP

8

NTS4-20001

BRACKET

9

0390-10000-C

WASHER M10

10

0311-10000-A

NUT M10

11

NTS4-21300

WIRE Was 11340-00070 - A

12

0383-06000-A

WASHER M6

13

0420-02020-O

PIN 1.6x20

14

NTS4-20200

BRACKET

15

0389-06000-A

WASHER M6

16

0102-06015-A

BOLT M6x15

17

11801-00200

SPRING
