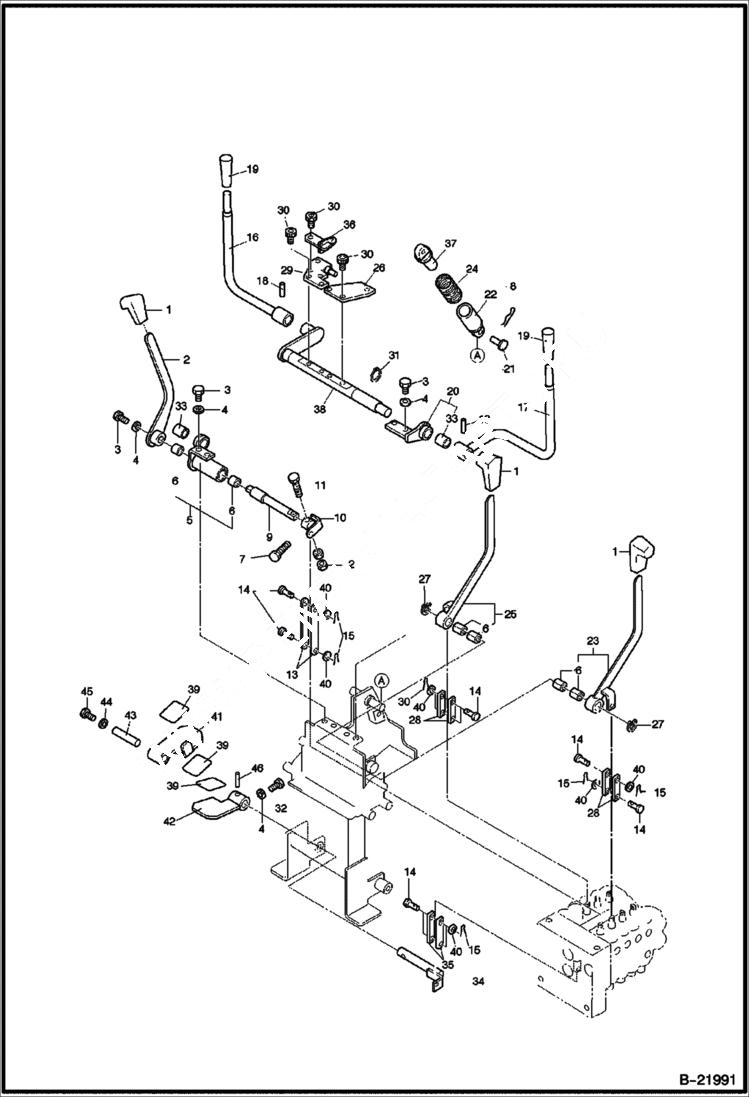

Запчасти Bobcat 316 CONTROL SYSTEM Travel MAIN FRAME

1

NTS4-10011

GRIP lever

2

NTS4-12300-1

LEVER dozer

3

0102-08020-A

BOLT M8x20

4

0389-08000-A

WASHER M8

5

NTS4-42100

BRACKET W/Ref. 6 & 50

6

0480-15010-0

BUSHING Was 0480-15010-O - A

7

0102-08012-A

BOLT M8x12

8

0421-10040

PIN split

9

NTS4-10013

SHAFT

10

NTS4-10500-1

BLOCK

11

0102-06035-A

BOLT M6x35

12

0311-06000-A

NUT M6

13

NTS4-10006-1

JOINT

14

NB50-023030

PIN link

15

0420-02015-O

PIN

16

NTS4-43100

LOCK LEVER

16

NTS4-43100-B

RH LOCK LEVER

17

NTS4-43200-A

LOCK LEVER

17

NTS4-43200-B

LH LOCK LEVER

18

0425-60025-0

PIN spring spring - Was 0425-60025-O

19

870-00008

GRIP

20

NTS4-42200

BRACKET W/Ref. 33

21

NTS4-40002

PIN

22

NTS4-44100

BODY

23

NTS4-11000-1

LEVER ASSY LH drive - W/Ref. 6

24

NTS4-44001

SPRING

25

NTS4-10900-1

LEVER ASSY RH drive - W/Ref. 6

26

NTS4-42001

PLATE

27

0445-01500-O

SNAP RING

28

NTS4-10012

JOINT

29

NTS4-42400

PLATE

30

0160-08010-A

BOLT

31

0445-01600-0

RING, RETAINING WQas 0445-01600 - A

32

0102-08025-A

BOLT M8x25

33

0480-16015-O

BUSHING

34

NTS4-16100

SHAFT

35

NTS4-10060

JOINT

36

NTS4-42500

BRACKET

37

NTS4-44200

ROD

38

NTS4-42300

SHAFT

39

NTS4-10064

SAFETY TREAD

40

0389-05000-A

WASHER

41

NTS4-16300

PEDAL SWING

42

NTS4-16400

PEDAL SWING

43

NTS4-16303

SHAFT

44

0387-08000-A

WASHER

45

0211-08015-A

BOLT

46

0425-60020-0

PIN spring
