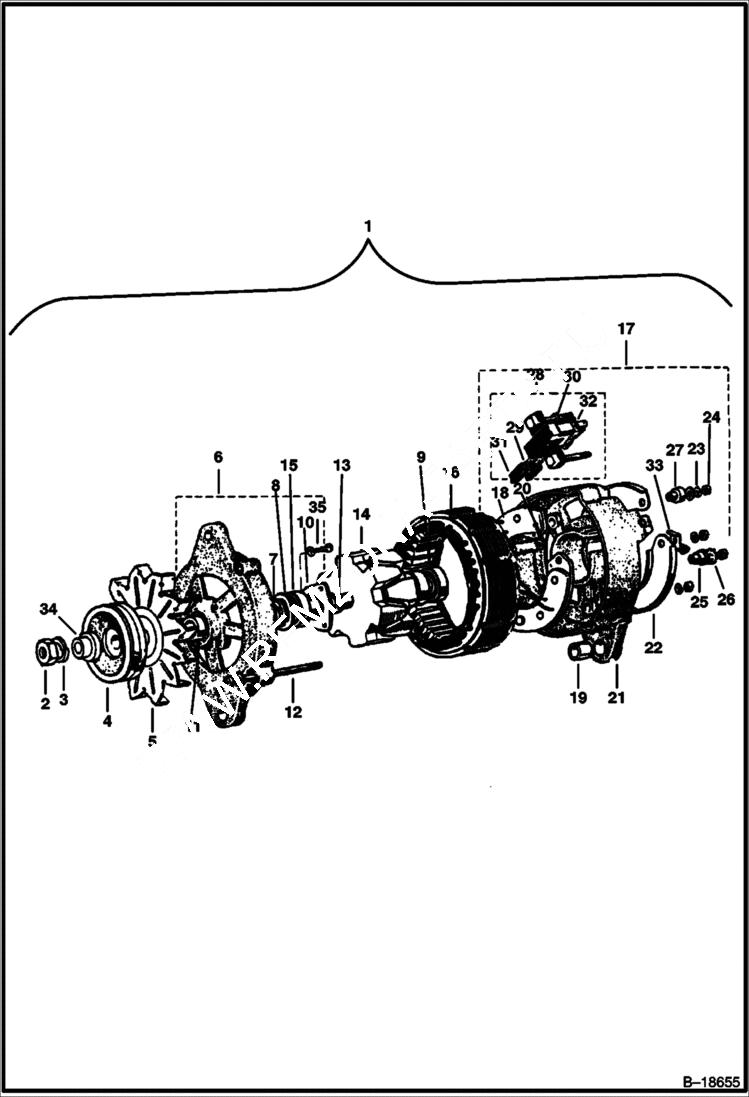

Запчасти Bobcat 231 ALTERNATOR (Open) ELECTRICAL SYSTEM

1

6655541

ALTERNATOR Ref. 2-35 - Was 6633277 - A

1

6655541REM

ALTERNATOR

2

3974749

NUT

3

3974750

WASHER

4

6655542

PULLEY

5

3974752

FAN

6

FRAME NLA - Was 3974753B - A

7

FELT NLA - Oil - Was 3974754B - A

8

COVER NLA - Was 3974755B - A

9

BEARING NLA - Was 3974756B - B

10

PLATE NLA - Was 3974756B - A

11

3974758

COLLAR

12

BOLT NLA - Was 3974759B - A

13

SPACER NLA - Was 3974781B - A

14

ARMATURE NLA - Was 3918633B - A

15

BEARING NLA - Was 3974762B - A

16

YOKE NLA - Was 3918634B - A

17

FRAME NLA - Was 3974764B - A

18

BUSHING NLA - Was 3974765B - A

19

3974766

BUSHING

20

WASHER NLA - Was 3974767B - A

21

FRAME NLA - Was 3974768B - A

22

COVER NLA - Was 3974769B - A

23

6EM50

LOCK-WSHR

24

NUT NLA - Was 3974771B - A

25

BUSHING NLA - Was 3974772B - A

26

4E4

WASHER

27

BUSHING NLA - Was 3974774B - A

28

HOLDER NLA - brush - W/Ref. 29-32 - Was 3974775B - A

29

SPRING NLA - Was 3974776B - A

30

6633292

WASHER

31

BRUSH NLA - Was 3974778B - A

32

INSULATOR NLA - Was 3974779B - A

33

CLAMP NLA - Was 3974780B - A

34

SPACER NLA - Was 3974781B - A

35

1CM516

BOLT Was 4CM516 - A
