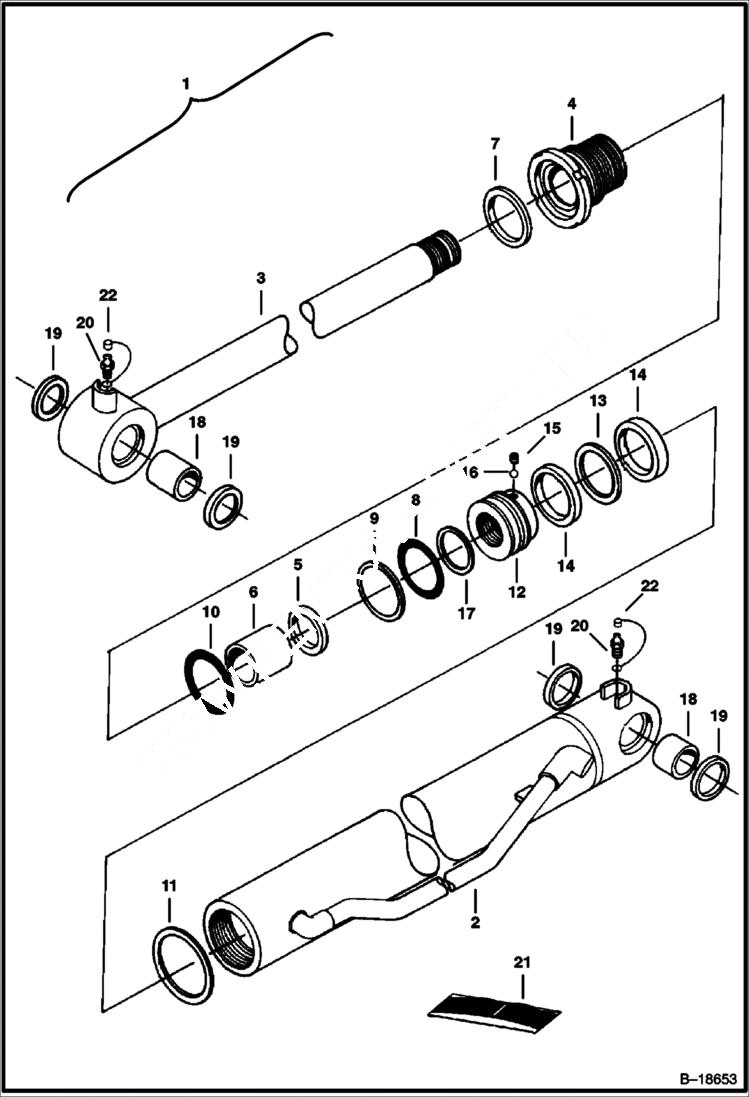

Запчасти Bobcat 231 BUCKET CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-20 - Was 6655583 - A

2

HOUSING W/Ref. 18 NLA - W/Ref. 18 - Was 6655644 - A

3

ROD NLA - W/Ref. 18 - Was 6655645 - A

4

HEAD NLA - Was 6655646 - A

5

6655608

U-RING

6

6655609

BUSHING

7

6655610

RING Wiper

8

6655631

O-RING

9

6655635

BACK-UP RING

10

6655633

O-RING

11

6655634

WASHER

12

6655636

PISTON

13

6655637

SEAL

14

6655638

RING Slide

15

6655620

SET SCREW

16

6655621

BALL Steel

17

6656267

SHIM

18

BUSHING NLA - Was 6653673 - A

19

SEAL NLA - Was 6653674 - A

20

6652990

GREASE ZERK

21

SEAL KIT NLA - Ref. 5, 7, 8, 9, 10, 13 & 14 - Was 6655647 - A

22

6652943

COVER grease fitting
