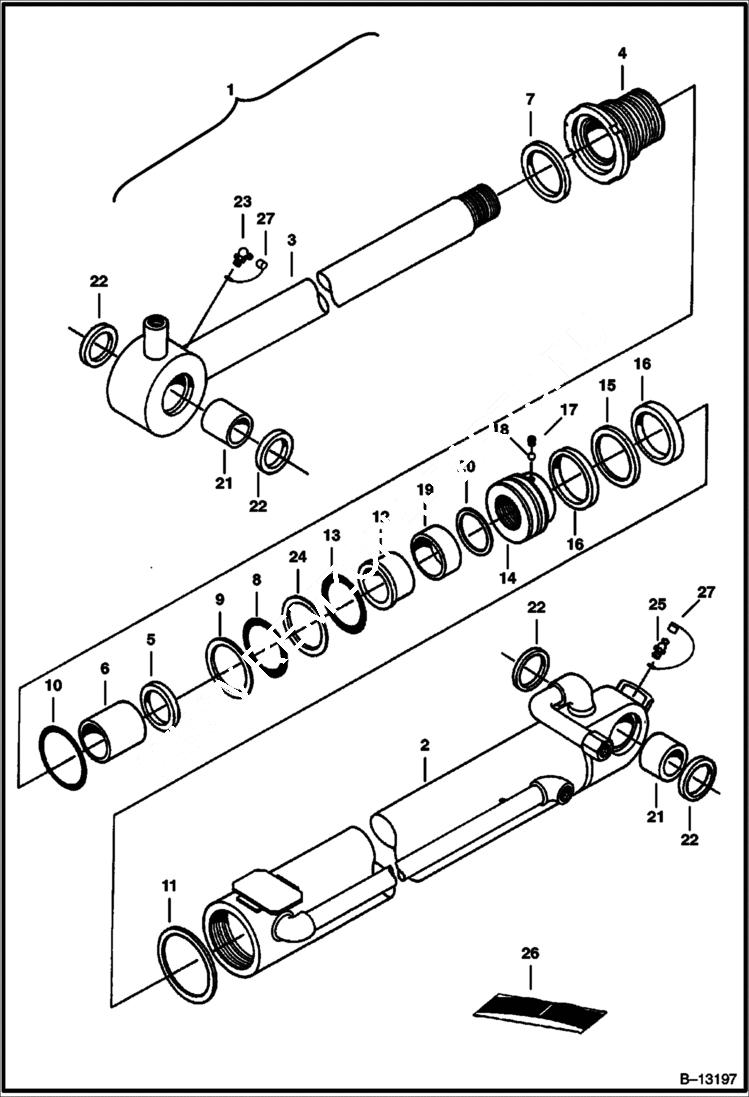

Запчасти Bobcat 231 BOOM CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-23 - Was 6655581 - A

2

CASE NLA - W/Ref. 21 - Was 6655605 - A

3

ROD NLA - W/Ref. 21 - Was 6655606 - A

4

HEAD NLA - Was 6655607 - A

5

6655608

U-RING

6

6655609

BUSHING

7

6655610

RING Wiper

8

6655611

O-RING

9

6655612

BACK-UP RING

10

6655613

O-RING

11

6655614

WASHER

12

6655615

SHIM

13

6655616

SEAL

14

PISTON NLA - Was 6655617 - A

15

6655618

SEAL

16

6655619

RING Slide

17

6655620

SET SCREW

18

6655621

BALL Steel

19

6655622

RING Cushion

20

6655623

SHIM

21

BUSHING NLA - Was 6653673 - A

22

SEAL NLA - Was 6653674 - A

23

6653000

GREASE ZERK

24

6655624

BACK-UP RING

25

6652990

GREASE ZERK

26

6655625

SEAL KIT W/Refs. 5, 7, 8, 9, 10, 13 , 15,

27

6652943

COVER grease fitting
