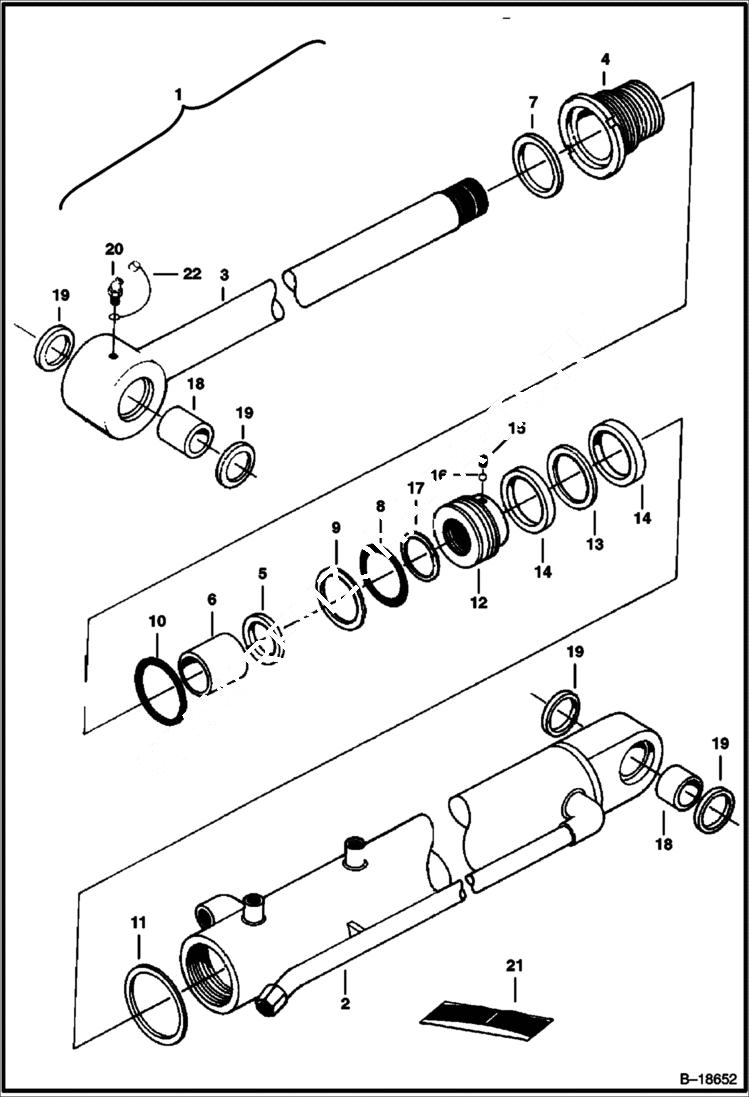

Запчасти Bobcat 231 BLADE CYLINDER HYDRAULIC SYSTEM

1

6655584

CYLINDER Ref. 2-20

2

HOUSING NLA - W/Ref. 18 - Was 6720416 - A

3

ROD NLA - W/Ref. 18 - Was 6655662 - A

4

HEAD NLA - Was 6655663 - A

5

6655608

U-RING

6

6655609

BUSHING

7

6655610

RING Wiper

8

6655664

SEAL

9

6655665

BACK-UP RING

10

6655666

O-RING

11

6655667

WASHER

12

6655668

PISTON

13

6655669

SEAL

14

6655670

RING Slide

15

6655620

SET SCREW

16

6655621

BALL Steel

17

6656267

SHIM

18

BUSHING NLA - Was 6655654 - A

19

SEAL NLA - Was 6655655 - A

20

6652991

GREASE ZERK

21

6655672

SEAL KIT Ref. 5, 7, 8, 9, 10, 13 & 14

22

6652943

COVER grease fitting
