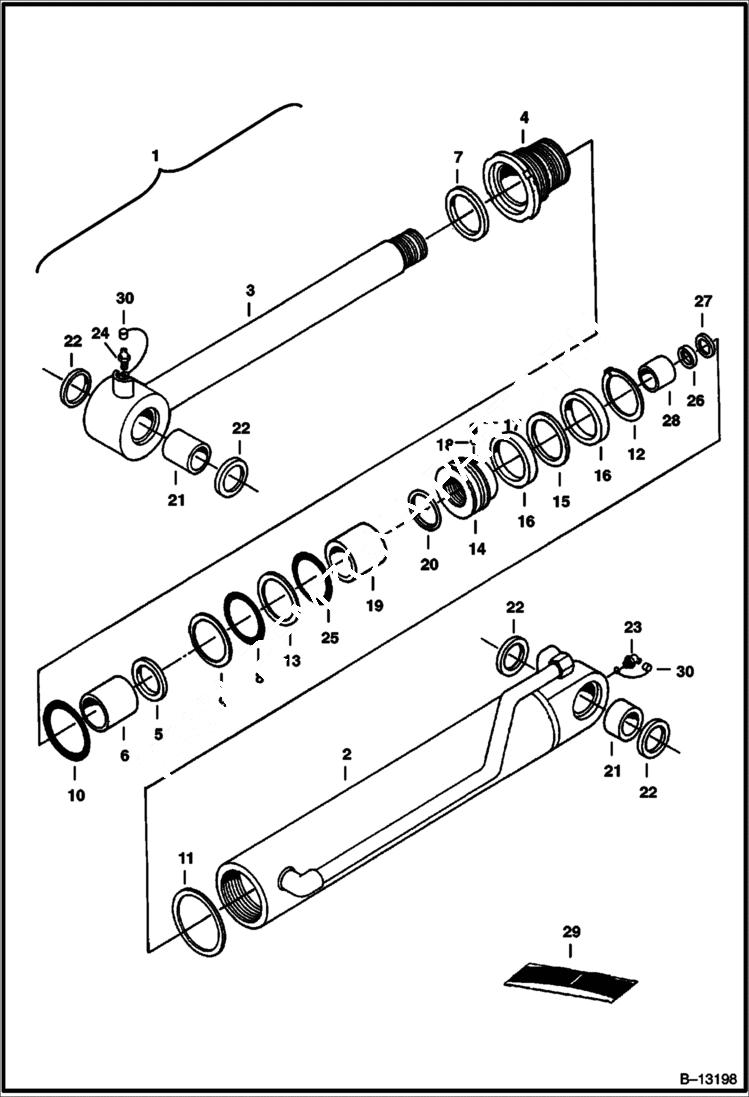

Запчасти Bobcat 231 ARM CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-29 - Was 6655582 - A

2

CASE NLA - W/Ref. 21 - Was 6655628 - A

3

ROD NLA - W/Ref. 21 - Was 6655629 - A

4

HEAD NLA - Was 6655630 - A

5

6655608

U-RING

6

6655609

BUSHING

7

6655610

RING Wiper

8

6655631

O-RING

9

6655632

BACK-UP RING

10

6655633

O-RING

11

6655634

WASHER

12

6655640

SNAP RING

13

6655635

BACK-UP RING

14

6655636

PISTON

15

6655637

SEAL

16

6655638

RING Slide

17

6655620

SET SCREW

18

6655621

BALL Steel

19

6655639

BUSHING

20

6656267

SHIM

21

BUSHING NLA - Was 6653673 - A

22

SEAL NLA - Was 6653674 - A

23

6653000

GREASE ZERK

24

6652990

GREASE ZERK

25

6653664

O-RING

26

6653654

SEAL Cushion

27

6653655

STOP

28

6653656

BUSHING

29

6655641

SEAL KIT Ref. 5, 7, 8, 9, 10, 13, 15, 16 & 25

30

6652943

COVER grease fitting
