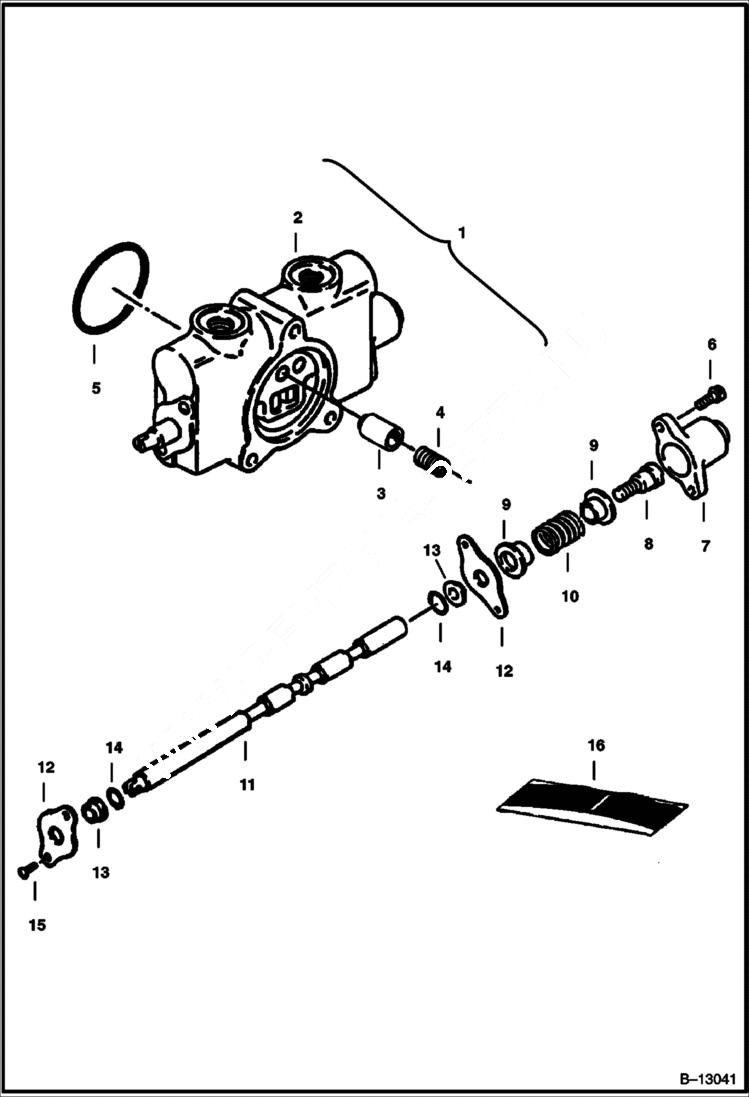

Запчасти Bobcat 231 VALVE SECTION (Blade) HYDRAULIC SYSTEM

1

7031610

VALVE, HYD assy. - Ref. 2-15 - Was 3974823 - A

2

HOUSING NSS

3

6630965

POPPET

4

6630966

SPRING

5

O-RING NLA

6

6653143

BOLT

7

3974830

CAP

8

SPRING NLA - Was 6653145 - A

9

3974832

CAP

10

SPRING NLA - Was 6653145 - A

11

SPOOL NSS

12

3974829

SEAL PLAT

13

WIPER NLA

14

O-RING NLA

15

6653144

SCREW

16

6653124

SEAL KIT Ref. 5, 13 & 14 -Was 6653142 - A
