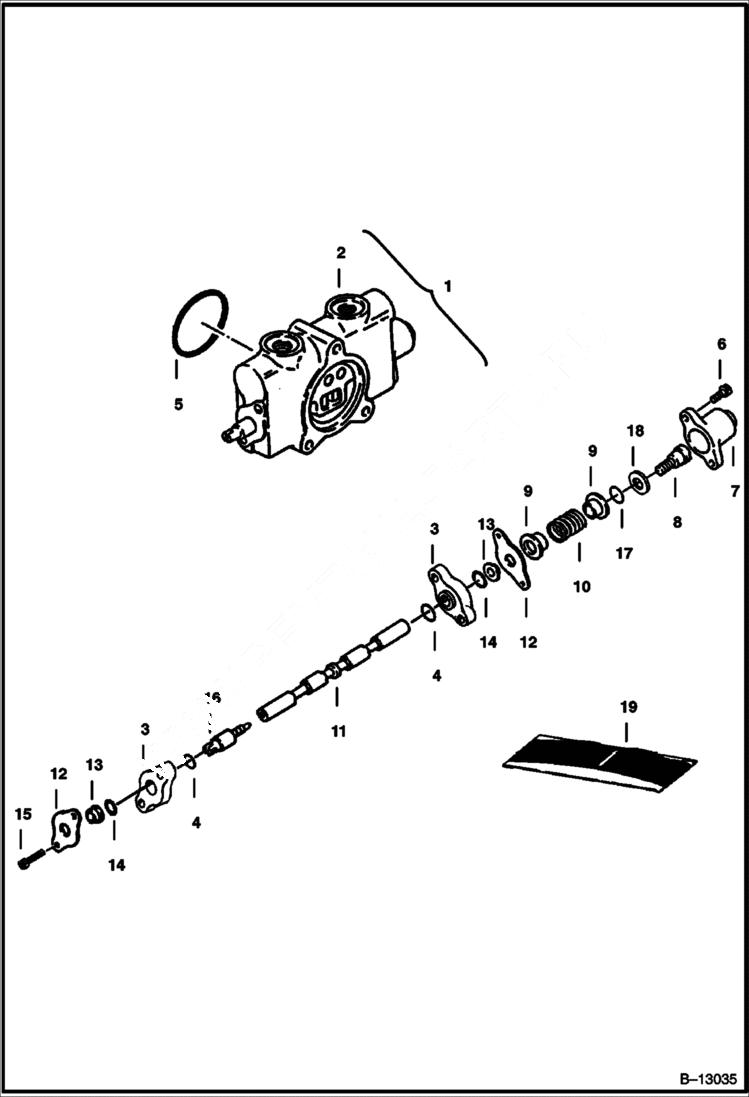

Запчасти Bobcat 231 VALVE SECTION (R.H. Travel) HYDRAULIC SYSTEM

1

6653118

SECTION Assy. - Ref. 2-19

2

HOUSING NSS

3

6653125

SPACER

4

O-RING NLA

5

O-RING NLA

6

6653128

BOLT

7

3974830

CAP

8

6653130

SCREW

9

RETAINER Was 3974831B - A

10

SPRING NLA - Was 6653145 - A

11

SPOOL NSS

12

3974829

SEAL PLAT

13

WIPER NLA

14

O-RING NLA

15

6653129

BOLT

16

6653126

HEAD

17

O-RING NLA

18

6653127

WASHER

19

6653124

SEAL KIT Ref. 4, 5, 13, 14 & 17
