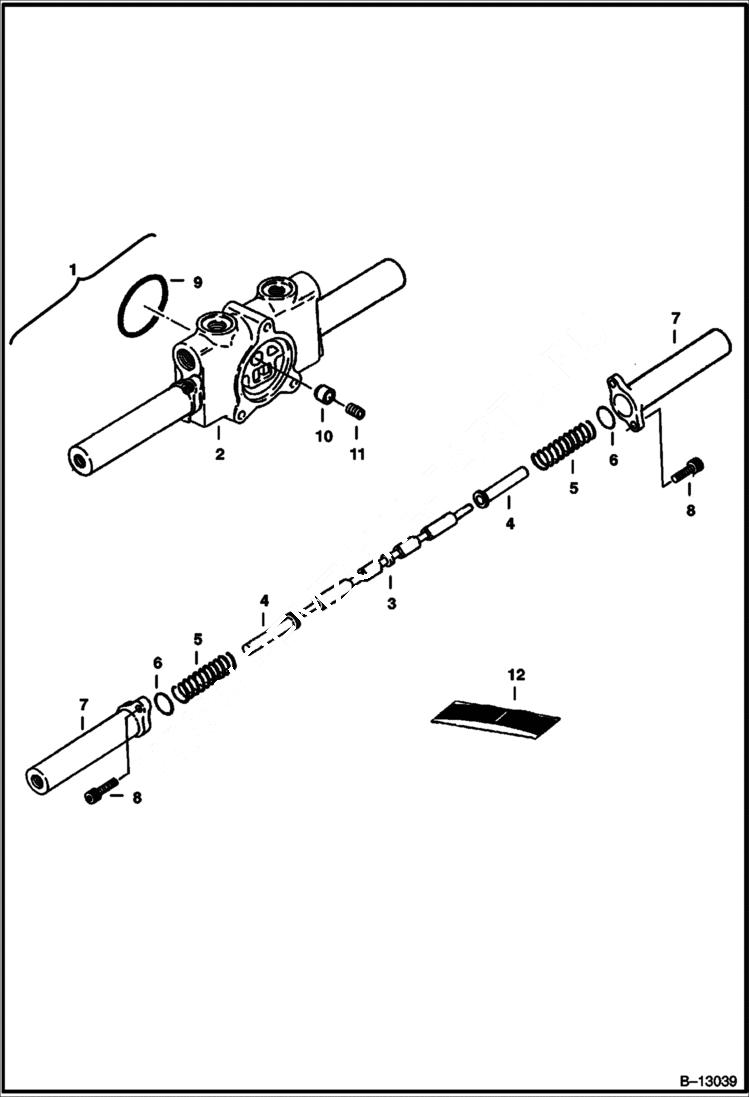

Запчасти Bobcat 231 VALVE SECTION (Dipper Arm & Boom) HYDRAULIC SYSTEM

1

6653117

SECTION Assy. - Ref. 2-12 - ARM

1

6664352

VALVE Assy. - Ref. 2-12 - BOOM

2

HOUSING NSS

3

SPOOL NSS

4

6653134

RETAINER Spring

5

6653133

SPRING

6

O-RING NLA

7

6653132

COVER

8

6653143

BOLT

9

O-RING NLA

10

6630965

POPPET

11

6630966

SPRING

12

6653131

SEAL KIT Ref. 6 & 9
