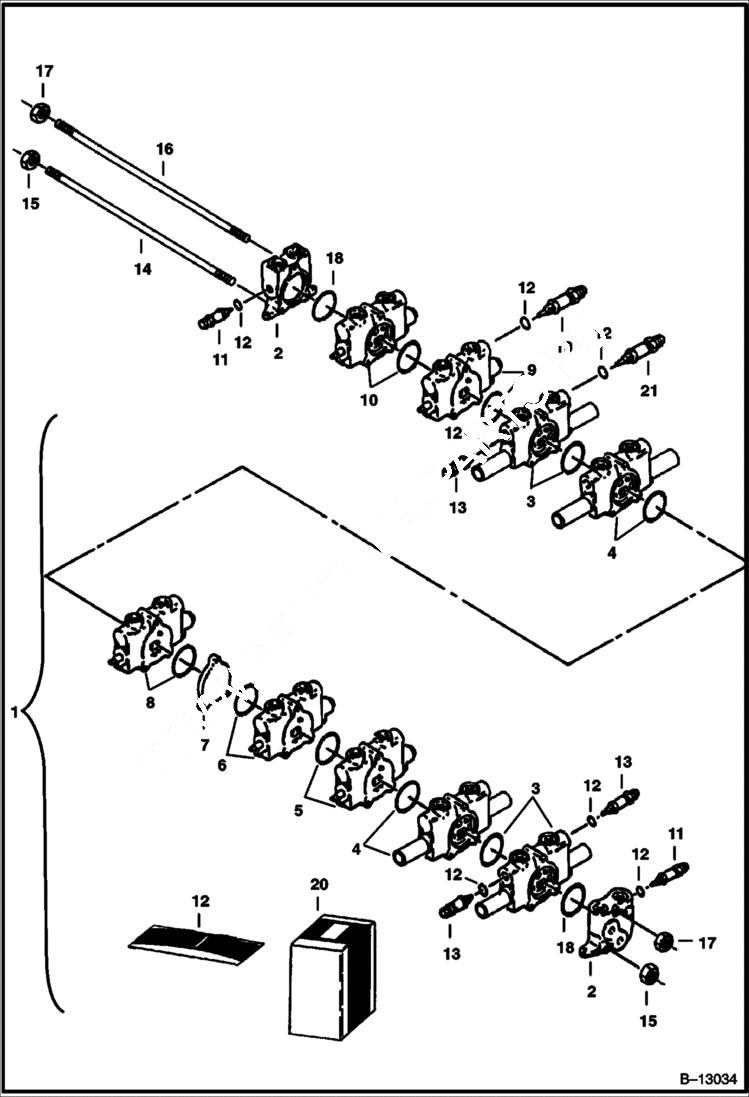

Запчасти Bobcat 231 CONTROL VALVE (9-Spool) HYDRAULIC SYSTEM

1

6655396

VALVE Assy. - Ref. 2-18

2

6653119

SECTION Inlet - Relief set at 2500 PSI [175 kgf/cm2] - Order Relief Valve separately

3

SECTION See Illustration VALVE SECTION/ B13039 Dipper arm & boom (Relief set at 2986 PSI [210 kgf/cm2]) - Order Relief Valve separately

4

6653116

SECTION See Illustration VALVE SECTION/ B13036 swing & bucket

5

6653113

SECTION See Illustration VALVE SECTION/ B13043 auxiliary

6

6653114

SECTION See Illustration VALVE SECTION/ B13042 travel - L.H.

7

6653112

SPACER

8

6653115

SECTION See Illustration VALVE SECTION/ B13040 boom swing

9

7031610

VALVE, HYD See Illustration VALVE SECTION/ B13041 blake - relief set at 1425 PSI (100 KGF/CM2) - Order valves separately - Was 3974823 - A

10

6653118

SECTION See Illustration VALVE SECTION/ B13035

11

6657019

RELIEF VALVE Relief set at 2500 PSI [175 kgf/cm2] - Was 6653111 - A

12

6653147

SEAL KIT Relief valve

13

6657396

RELIEF VALVE Relief set at 2986 PSI [210 kgf/cm2] - Was 6653110 - A

14

6653122

ROD

15

6653123

NUT

16

6653120

ROD

17

6653121

NUT

18

6655077

O-RING

19

6657395

RELIEF VALVE Relief set at 1422 PSI - 100 kgf/cm2

20

6658590

SEAL KIT valve assy. - Includes all seals to repair complete valve

21

6659365

RELIEF VALVE Relief set at 3461 PSI 240 kgf/cm2
